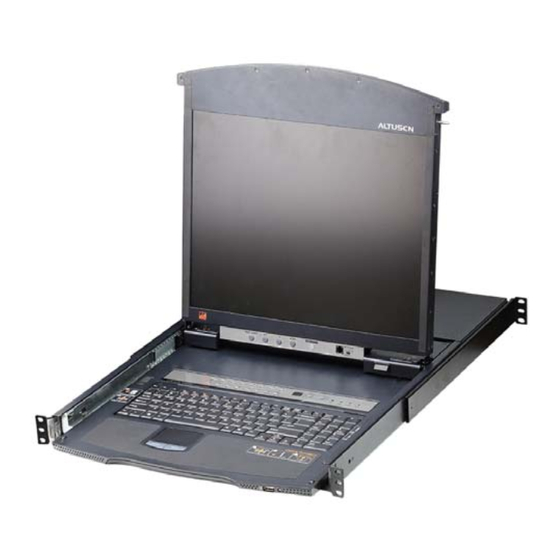

Cat 5 High-Density Dual Rail LCD KVM Switch
KL1508A / KL1516A
User Manual
www.aten.com

Advertisement

Table of Contents
loading

Related Manuals for ATEN KL1508A

Summary of Contents for ATEN KL1508A

  • Page 1 Cat 5 High-Density Dual Rail LCD KVM Switch KL1508A / KL1516A User Manual www.aten.com...

  • Page 2: Emc Information

    KL1508 / KL1516 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Rohs

    KL1508 / KL1516 User Manual RoHS This product is RoHS compliant. SJ/T 11364-2006 The following contains information that relates to China.

  • Page 4: User Information

    86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8-4481-58923 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.

  • Page 5: Package Contents

    Copyright © 2015 ATEN® International Co., Ltd. Manual Date: 2015-05-19 Altusen and the Altusen logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 6: Table Of Contents

    KL1508 / KL1516 User Manual Contents EMC Information..........ii RoHS .
  • Page 7 KL1508 / KL1516 User Manual Operating Precautions ........24 Closing the Console .
  • Page 8 KL1508 / KL1516 User Manual Entering Skip Mode ........52 Exiting Skip Mode .
  • Page 9 KL1508 / KL1516 User Manual Sun Systems ..........82 Limited Warranty .

  • Page 10: About This Manual

    KL1508 / KL1516 User Manual About This Manual This User Manual is provided to help you get the most from your KL1508 KL1516 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 11: Conventions

    For information about all ALTUSEN products and how they can help you connect without limits, visit ALTUSEN on the Web or contact an ALTUSEN Authorized Reseller. Visit ALTUSEN on the Web for a list of locations and telephone numbers International – http://www.aten.com North America – http://www.aten-usa.com...
  • Page 12 KL1508 / KL1516 User Manual This Page Intentionally Left Blank...

  • Page 13: Chapter 1. Introduction

    Chapter 1 Introduction Overview A KL1508 or KL1516 KVM switch is a control unit that allows IT administrators to access and control multiple computers from a single PS/2 or USB KVM (keyboard, monitor, and mouse) console. A single KL1508 KL1516 can control up to 8 / 16 computers.
  • Page 14 Access to any computer on the installation is easily accomplished – either by pressing front panel port selection pushbuttons; entering hotkey combinations from the keyboard; or by means of a powerful OSD (On Screen Display) menu system. A convenient Auto Scan function also permits automatic scanning and one-by-one monitoring of the activities of selected computers.

  • Page 15: Features And Benefits

    Console lock enables the sliding console to remain securely locked away when not in use. LED Light Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low- light conditions. Single Console Control Access and control up to 8 (KL1508...
  • Page 16 Superior Video Quality Supports the video resolutions up to 1280x1024@75hz for up to 50 meters with the new ATEN KVM Cable Adapter KA7000 series. Multiple User Accounts Supports up to 10 user and 1 administrator accounts...

  • Page 17: Requirements

    Chapter 1. Introduction Requirements External Console A VGA, SVGA, or multisync monitor capable of the highest resolution that you will be using on any computer in the installation A PS/2 or USB mouse A PS/2 or USB keyboard Computers The following equipment must be installed on the computers that connect to the KL1508 or KL1516 KVM ports:...

  • Page 18: Operating Systems

    KL1508A / KL1516A User Manual Function Module Connect to serial based devices KA9140 Note: 1. KVM adapter cables are referred to as I/O Modules in some dialog boxes. 2. The following cable models support the Adapter Cable ID function: KA7920 / KA7970 / KA7520 / KA7570 / KA7120 / KA7130 / KA7166 / KA7168 / KA7169 / KA7170.

  • Page 19: Components

    The rack mounting tabs located at each corner of the unit Tabs secure the chassis to a system rack. See Standard Rack Mounting, page 12, for details. LED Light Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions...

  • Page 20: Keyboard Module

    KL1508A / KL1516A User Manual Keyboard Module Component Description Keyboard Standard 105-key keyboard Touchpad Standard mouse touchpad External Mouse This USB-type mouse port is provided for users who prefer to Port use an external mouse. Station ID LED In a daisy chained installation, the Station ID of the currently selected station displays as a 2-digit figure in this panel.

  • Page 21: Lcd Module

    Firmware Upgrade Port: The Firmware Upgrade Cable that Upgrade Section transfers the firmware upgrade data from the administrator's computer to the KL1508A / KL1516A plugs into this RJ-11 connector. Firmware Upgrade Switch: During normal operation this switch should be in the NORMAL position. (See The Firmware...

  • Page 22: Rear View

    KL1508A / KL1516A User Manual Rear View KL1508 KL1516 Component Description Grounding The grounding wire used to ground the switch attaches here. Terminal Power Socket This is a standard 3-prong AC power socket. The power cord from an AC source plugs in here.

  • Page 23: Chapter 2. Hardware Setup

    Chapter 2 Hardware Setup Before you Begin 1. Important safety information regarding the placement of this device is provided on page 67. Please review it before proceeding. 2. Make sure that power to all the devices you will be connecting up has been turned off.

  • Page 24: Standard Rack Mounting

    KL1508A / KL1516A User Manual Standard Rack Mounting A standard rack mounting kit is provided with your KL1508 / KL1516 . The kit enables the switch to be mounted in rack with a depth of 42–77 cm. L Brackets Side Mountng...
  • Page 25 Chapter 2. Hardware Setup 2. While the first person still holds the switch in place, the second person slides the L brackets into the switch's side mounting brackets, from the rear until the bracket flanges contact the rack, then—using the screws provided with the rack mounting kit—screws the L brackets to the rack.

  • Page 26: Single Station Installation

    KL1508A / KL1516A User Manual Single Station Installation In a single stage installation, there are no additional KVM switches daisy chained down from the KL1508 / KL1516 . To set up a single stage installation, refer to the installation diagrams starting on page 15 (the numbers...
  • Page 27 Chapter 2. Hardware Setup Single Stage Installation Diagram...

  • Page 28: Kvm Adapter Cable Installation Diagrams

    KL1508A / KL1516A User Manual KVM Adapter Cable Installation Diagrams KA7120 KA7520 KA7920 KA9120 KA9520 KA7130 KA9130 KA7170 KA7570 KA7970 KA9170 KA9570 SERIAL TERMINAL KA9140...
  • Page 29 Chapter 2. Hardware Setup KVM Adapter Cable Installation Diagrams cont. KA7166 KA7168 KA7169...

  • Page 30: Daisy Chaining

    (there is no point in having consoles on the chained switches), switches without LCD consoles are used instead. Please see the table, Compatible Switches, page 74 for a list of ATEN switches that can be installed on a KL1508 / KL1516 daisy chain.
  • Page 31 Chapter 2. Hardware Setup b) Power on each station on the installation in turn (second station, then third station, etc.). In each case, wait for the station ID to be ascertained and displayed before powering on the next station. c) After all the stations are up, power on the computers. Daisy Chain Installation Diagram...
  • Page 32 KL1508A / KL1516A User Manual This Page Intentionally Left Blank...

  • Page 33: Chapter 3. Basic Operation

    Chapter 3 Basic Operation Opening the Console The KL1508 / KL1516 's console consists of two modules: An LCD display module located under the top cover; and a keyboard / touchpad module below the LCD module. The modules can either slide together, or independently. This allows you to have the LCD display available for viewing while the keyboard / touchpad module is conveniently out of the way when not in use.
  • Page 34 KL1508 / KL1516 User Manual 2. Pull the top panel all the way out until it clicks into place. 3. Rotate the top panel all the way back to expose the LCD screen.

  • Page 35: Opening Together

    Chapter 3. Basic Operation 4. Reach underneath and pull the keyboard module all the way out until it clicks into place. Opening Together Refer to the diagrams in the Opening Separately section as you do the following: 1. Pull the release catch and pull the top and bottom panels out until the keyboard module clicks into place.

  • Page 36: Operating Precautions

    KL1508 / KL1516 User Manual Operating Precautions The maximum load bearing capacity of the keyboard module is 30kg. Failure to heed the information below can result in damage to the keyboard module. RIGHT Rest your hands and arms lightly on the keyboard module as you work.

  • Page 37: Closing The Console

    Chapter 3. Basic Operation Closing the Console 1. Pull the release catches located on either side of the keyboard toward you to release the keyboard module, then slide the module slightly in. 2. Let go of the catches. Using the front handle, push the keyboard module all the way in.
  • Page 38 KL1508 / KL1516 User Manual 3. Rotate the LCD module all the way down, then pull the rear catches to release the LCD module. 4. Using the front handle, push the module all the way in.

  • Page 39: Lcd Osd Configuration

    Chapter 3. Basic Operation LCD OSD Configuration The LCD Buttons The LCD OSD allows you to set up and configure the LCD display. Four buttons (see LCD Controls, page 9) are used to perform the configuration, as described in the table below: Button Function MENU...

  • Page 40: The Adjustment Settings

    KL1508 / KL1516 User Manual The Adjustment Settings An explanation of the LCD OSD adjustment settings is given in the table below: Setting Explanation Brightness Adjusts the background black level of the screen image. Contrast Adjusts the foreground white level of the screen image. Phase If pixel jitter or horizontal line noise is visible on the display, your LCD may have the wrong phase setting.

  • Page 41: Osd

    Chapter 3. Basic Operation The OSD provides a menu driven interface to the computer switching procedure. OSD operation is discussed in the next chapter. Hotkey Hotkeys allow you to conveniently provide KVM focus to a particular computer from the keyboard instead of having to manually select them by pressing port selection switches, or accessing the OSD.

  • Page 42: Hot Plugging

    KL1508 / KL1516 User Manual Hot Plugging The KL1508 / KL1516 supports hot plugging – components can be removed and added back into the installation by unplugging and replugging their cables without the need to shut the unit down. In order for hot plugging to work properly, however, the procedures described below should be followed.

  • Page 43: Powering Off And Restarting

    Chapter 3. Basic Operation Powering Off and Restarting If it becomes necessary to power off the KL1508 / KL1516 , or if the switch loses power and needs to be restarted, before starting it back up you should follow these procedures to prevent possible equipment issues: 1.
  • Page 44 KL1508 / KL1516 User Manual This Page Intentionally Left Blank...

  • Page 45: Chapter 4. Osd Operation

    Chapter 4 OSD Operation OSD Overview The On Screen Display (OSD) is a menu driven method to handle computer control and switching operations. All procedures start from the OSD Main Screen. To display the Main Screen, tap the OSD hotkey twice. The default hotkey is [Scroll Lock].
  • Page 46 KL1508 / KL1516 User Manual When you invoke the OSD, a screen similar to the one below appears: Note: 1. The diagram depicts the Administrator's Main Screen. The User Main Screen does not show the F4 and F6 functions, since these are reserved for the administrator and can't be accessed by ordinary users.

  • Page 47: Osd Navigation

    Chapter 4. OSD Operation OSD Navigation To dismiss the menu, and deactivate the OSD, click the X at the upper right corner of the OSD Window or press Esc. To Logout click F8 or the symbol at the top of the Main Screen, or press [F8].

  • Page 48: Osd Functions

    KL1508 / KL1516 User Manual OSD Functions OSD functions are used to configure and control the OSD. For example, you can rapidly switch to any port, scan selected ports only, limit the list you wish to view, designate a port as a Quick View Port, create or edit a port name, or make OSD setting adjustments.

  • Page 49: F2: List

    Chapter 4. OSD Operation F2: LIST Many of the switch’s OSD functions only operate on the computers currently selected for listing on the Main Screen. Accessing this function lets you broaden or narrow the scope of ports that get listed. The submenu choices and their meanings are given in the table below: Choice Meaning...

  • Page 50: F3: Set

    KL1508 / KL1516 User Manual F3: SET Accessing this function allows the administrator and each user to set up an individual working environment. A separate profile for each operator is stored by the OSD and is activated according to the username provided during login. To change a setting: 1.
  • Page 51 Chapter 4. OSD Operation Setting Function SCAN/SKIP Selects which computers will be accessed under Skip mode (see F5: MODE SKP, page 44), and Auto Scan mode (see F7: SCAN, page 46). Choices are: – All the ports which have been set Accessible (see SET ACCESSIBLE PORTS, page 41);...
  • Page 52 KL1508 / KL1516 User Manual (Continued from previous page.) Setting Function SET QUICK This function lets the administrator select which ports to include as VIEW PORTS Quick View ports. To select/deselect a port as a Quick View Port, use the navigation keys to move the highlight bar to it, then press the [Spacebar].

  • Page 53: F4: Adm

    Chapter 4. OSD Operation F4: ADM F4 is an administrator only function. Accessing this function allows the administrator to configure and control the overall operation of the OSD. To change a setting double click it; or use the up and down arrow keys to move the highlight bar to it, then press [Enter].
  • Page 54 KL1508 / KL1516 User Manual (Continued from previous page.) Setting Function EDIT PORT To identify which computer is attached to a particular port, every port NAMES can be assigned a name. This function allows the administrator to create, modify, or delete port names. To assign a port name: 1.
  • Page 55 Use the spacebar to cycle through the choices. The default is 0. Changes will not be saved until you logout. FIRMWARE In order to upgrade the KL1508A / KL1516A and adapter cable UPGRADE firmware (see The Firmware Upgrade Utility, page 59) you must first enable Firmware Upgrade mode with this setting.

  • Page 56: F5: Skp

    KL1508 / KL1516 User Manual F5: SKP This function enables you to easily skip backward or forward, switching the console focus from the currently active KVM Port to the previous or next available one. The selection of computers to be available for Skip mode switching is made with the Scan/Skip mode setting under the F3 SET function (see page 39).

  • Page 57: F6: Brc

    Chapter 4. OSD Operation F6: BRC F6 is an administrator only function. When this function is in effect, commands sent from the console are broadcast to all available computers on the installation. This function is particularly useful for operations that need to be performed on multiple computers, such as performing a system wide shutdown, installing or upgrading software, etc.

  • Page 58: F7: Scan

    KL1508 / KL1516 User Manual F7: SCAN This function automatically switches among the available computers at regular intervals so that you can monitor their activity without having to take the trouble of switching manually. The selection of computers to be included for Auto Scanning is made with the Scan/Skip mode setting under the F3 SET function (see page 39).

  • Page 59: Chapter 5. Hotkey Operation

    Chapter 5 Hotkey Operation Hotkey Port Control Hotkey port control allows you to provide KVM focus to a particular computer directly from the keyboard. The KL1508 / KL1516 provides the following Hotkey port control features: Selecting the Active Port Auto Scan Mode Switching Skip Mode Switching Computer Keyboard / Mouse Reset The following settings can also be controlled in Hotkey mode:...

  • Page 60: Invoking Hotkey Mode

    KL1508 / KL1516 User Manual Invoking Hotkey Mode All Hotkey operations begin by invoking Hotkey mode. To invoke Hotkey mode you may use two possible keystroke sequences shown below. Only one of the two key-sequences below can be operational (see Setting the Hotkey key combination on page 54): Number Lock and Minus Keys [Num Lock]...

  • Page 61: Selecting The Active Port

    Chapter 5. Hotkey Operation Selecting the Active Port Each computer port is assigned a port ID (see Port ID Numbering, page 31). You can directly access any computer with a Hotkey combination that specifies the port ID that the computer is connected to. The steps are: 1.

  • Page 62: Auto Scan Mode Switching

    KL1508 / KL1516 User Manual Auto Scan Mode Switching Auto Scan automatically switches among all the active computer ports that are accessible to the currently logged on user at regular intervals. This allows their activity to be monitored automatically (See SKAN/SKIP MODE of the OSD F3 SET function, page 39).

  • Page 63: Exiting Auto Scan

    Chapter 5. Hotkey Operation then restarted Auto Scanning, it starts, at the beginning, from the first computer on the installation. To resume Auto Scanning, press any key. Scanning continues from the computer you paused at. While the Auto Scan mode is operating, ordinary keyboard and mouse functions are suspended - only Auto Scan mode compliant keystrokes can be input.

  • Page 64: Skip Mode Switching

    KL1508 / KL1516 User Manual Skip Mode Switching This feature allows you to switch between computers in order to monitor them manually. You can focus on a particular port for as long as you like – as opposed to auto-scanning, which automatically switches the port focus after a fixed interval.

  • Page 65: Computer Keyboard / Mouse Reset

    Chapter 5. Hotkey Operation Computer Keyboard / Mouse Reset If either the keyboard or mouse stop functioning on the computer connected to the currently selected port, you can perform a keyboard / mouse reset on the computer by executing the following steps: 1.

  • Page 66: Setting The Hotkey Key Combination

    KL1508 / KL1516 User Manual Setting the Hotkey key combination The keys used to enter the Hotkey Mode (see HOTKEY COMMAND MODE, page 39) can be switched between: [Num Lock] + [-] [Ctrl] + [F12] , and by the following steps: 1.

  • Page 67: Setting The Port Operating System

    Chapter 5. Hotkey Operation Setting the Port Operating System A port’s operating system configuration can be matched to that of the computer attached to the port by performing the following steps: 1. Enter the Hotkey mode with the: combination [Num Lock] + [-] or [Ctrl] + [F12] [Function] [Function] 2.

  • Page 68: Hotkey Summary Table

    KL1508 / KL1516 User Manual Hotkey Summary Table [Num Lock] + [-] [A] [Enter] Invokes Auto Scan mode. When Auto Scan mode is in effect, [P] or left-click pauses auto-scanning. [Ctrl] + [F12] When auto-scanning is paused, pressing any key or another left-click resumes auto- scanning.

  • Page 69: Chapter 6. Keyboard Emulation

    Chapter 6 Keyboard Emulation Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt]...

  • Page 70: Sun Keyboard

    KL1508 / KL1516 User Manual Sun Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. PC Keyboard Sun Keyboard [Ctrl] [T]...

  • Page 71: The Firmware Upgrade Utility

    Before You Begin To prepare for the firmware upgrade, do the following: 1. From a computer that is not part of your KVM installation go to the ATEN Internet support site and choose the model name that relates to your device to get a list of available Firmware Upgrade Packages.
  • Page 72 KL1508 / KL1516 User Manual (Continued from previous page.) 3. Use the firmware upgrade cable (provided with this unit), to connect a COM port on your computer to the firmware upgrade port of your device. Note: On a daisy chained installation, connect the cable to the first station (master) unit.

  • Page 73: Performing The Upgrade

    Chapter 7. The Firmware Upgrade Utility Performing the Upgrade Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file, either by double clicking the file icon, or by opening a command line and keying in the full path to it.
  • Page 74 KL1508 / KL1516 User Manual (Continued from previous page.) 3. Click Next to continue. The Firmware Upgrade Utility main screen appears: The Utility checks to make sure the KL1508 / KL1516 is in the Firmware Upgrade Mode and then lists all firmware needed preselected in the Device List panel.
  • Page 75 Chapter 7. The Firmware Upgrade Utility 4. Select MAIN to upgrade the firmware for the Main Board. Deselect any KVM Adapter Cable types that are not required to be upgraded. After you have made your selection(s), click Next to perform the upgrade. Check Firmware Version - when selected the utility compares the Main Board firmware level with the upgrade files MAIN.

  • Page 76: Upgrade Succeeded

    KL1508 / KL1516 User Manual Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. Note: At the completion of the upgrade, the KL1508 / KL1516 restarts.

  • Page 77: Upgrade Failed

    Chapter 7. The Firmware Upgrade Utility Upgrade Failed If the upgrade failed to complete successfully a dialog box appears asking if you want to retry. Click Yes to retry. If you click No, the Upgrade Failed screen appears. Click Cancel to close the Firmware Upgrade Utility. See the next section, Firmware Upgrade Recovery, for how to proceed.

  • Page 78: Adapter Cable Firmware Upgrade Recovery

    KL1508 / KL1516 User Manual Adapter Cable Firmware Upgrade Recovery To perform an adapter cable firmware upgrade recovery, do the following: 1. Unplug the adapter cable from the computer it is connected to. 2. Slide its Firmware Upgrade Recovery Switch (located next to the RJ45 connector) to the Recover position.

  • Page 79: Appendix

    Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 80 KL1508 / KL1516 User Manual Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating.

  • Page 81: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 82: Technical Support

    KL1508 / KL1516 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iv. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates...

  • Page 83: Specifications

    Appendix Specifications Function KL1508A KL1516A Computer Direct Connections Max. 256 (via Daisy Chain) 512 (via Daisy Chain) Port Selection OSD (On Screen Display); Hotkeys Pushbuttons Connectors Console Keyboard 1 x 6-pin Mini-DIN Female (Purple); 1 x USB Type A Female...
  • Page 84 KL1508 / KL1516 User Manual Function KL1508A KL1516A Environment Operating Temp. 0 - 40 Storage Temp. -20–60 Humidity 0 - 80% RH, Non-condensing Physical Housing Metal Properties Weight 17” LCD 15.19 kg 15.20 kg 19” LCD 15.35 kg 15.36 kg Dimensions 17”...

  • Page 85: Connection Tables

    Appendix Connection Tables The following table indicates the relationship between the number of KL1508 / KL1516 units and the number of computers that they control KL1508 Computers Computers Computers Computers 1 - 8 65 - 72 129 - 136 193 - 200 9 - 16 73 - 80 137 - 144...

  • Page 86: Compatible Switches

    KL1508 / KL1516 User Manual Compatible Switches The following ATEN switches can be installed on a KL1508 / KL1516 daisy chain: ACS1208 / ACS1216 CS1708 / CS1716 KH1508 / KH1516...

  • Page 87: Osd Factory Default Settings

    Appendix OSD Factory Default Settings The factory default settings are as follows: Setting Default OSD Hotkey [Scroll Lock] [Scroll Lock] Port ID Display Position Upper Left Corner Port ID Display Duration 3 Seconds Port ID Display Mode The Port Number plus the Port Name Scan Duration 5 Seconds Scan/Skip Mode...

  • Page 88: Administrator Login Failure

    KL1508 / KL1516 User Manual Administrator Login Failure If you are unable to perform an Administrator login (because the Username and Password information has become corrupted or you have forgotten it, for example) you can clear the login information with the following procedure: 1.

  • Page 89: Optional Rack Mounting

    Appendix Optional Rack Mounting For convenience and flexibility, three optional rack mounting kits are available as shown in the following table: KVM Model Bracket Type Size (cm) KL1508M / KL1516M Standard Installation – Long 68.0—105.0 Easy Installation – Short 57.0—70.0 Easy Installation –...
  • Page 90 KL1508 / KL1516 User Manual 2. Attach the left and right easy-installation mounting rails to the inside of the rack. The flange that supports the switch will be to the inside. Rear Flange Slide Bar Front Flange Rear Attachment Sliding Bracket LEFT Support Flange...
  • Page 91 Appendix 3. Slide the switch onto the support flanges. Use the screws supplied with this package to loosely attach the front of the switch to the front of the rack (only tighten the screws part way). Phillips I head M4L6 4.

  • Page 92: Dedicated Invocation Keys

    KL1508 / KL1516 User Manual 5. Slide the switch open and closed a couple of times to be sure that it is properly aligned and operating smoothly. (See Opening the Console, page 21 for opening and closing procedures.) 6. After determining that the switch is properly lined up and operating correctly, finish up by fully tightening down the partially tightened front attachment screws inserted in step 3.

  • Page 93: Troubleshooting

    LCD screen resolution of the problem computer is set to monitor screen goes blank. something that is too high for the KL1508A / KL1516A’s All I see is a black screen. LCD monitor to display. To resolve the problem, connect an external KVM console (with a monitor capable of displaying the problem computer’s screen resolution) to the KL1508A /...

  • Page 94: Sun Systems

    KL1508 / KL1516 User Manual Sun Systems Problem Solution Video display problems The display resolution should be set to 1024 x 768 @ with HDB-15 interface 60Hz. systems (e.g. Sun Blade Under Text Mode: 1000 servers). 1. Go to OK mode and issue the following commands: setenv output-device screen:r1024x768x60 reset-all Under XWindow:...

  • Page 95: Limited Warranty

    Appendix Limited Warranty ALTUSEN warrants this product against defects in material or workmanship for a period of one (1) year from the date of purchase. If this product proves to be defective, contact ALTUSEN's support department for repair or replacement of your unit. ALTUSEN will not issue a refund. Return requests can not be processed without the original proof of purchase.
  • Page 96 KL1508 / KL1516 User Manual This Page Intentionally Left Blank...
  • Page 97 Index Front View, 7 Adapter cable installation, 16 Administrator Login Failure, 76 Hardware Setup, 11 Auto Scanning, 38, 50 Hot Plugging, 30 Invoking Auto Scan, 50 Hotkey, 33 Pausing Auto Scan, 50 Selecting the Active Port, 49 Setting the Scan Interval, 50 Summary Table, 56 Stopping, 51 Hotkey Mode...
  • Page 98 KL1508 / KL1516 User Manual Rear View KL1508 Mouse Reset, 53 KL1516 Requirements Computer, 5 Online Console, 5 Registration, iv KVM adapter cables, 5 Opening the Console, 21 Operating Systems, 6 Operating Precautions, 24 OS Support, 6 RoHS, iii Factory Default Settings, 75 Functions, 36 Hotkey, 33 Safety Instructions...

This manual is also suitable for:
