All information, documentation, firmware, software utilities, and specifications contained in this package are subject to change without prior
notification by the manufacturer. Please visit our website http://www.aten.com/download/?cid=dds for the most up-to-date versions.
1
Package Contents
1 KL1508 or KL1516 Cat 5 High-Density Dual Rail LCD KVM Switch with Standard
A A
Rack Mount Kit
1 Firmware Upgrade Cable
1 Power Cord
1 User Instructions
Optional Equipment Important Notice
Depending on any optional equipment that you Considering environmental protection, ATEN does
may have purchased, one of the following may be not provide a fully printed user manual for this
included in your package:
product. If the information contained in the Quick
• Standard Rack Mount Kit - Long
Start Guide is not enough for you to configure and
• Easy Installation Rack Mount Kit - Short
operate your product, please visit our website
• Easy Installation Rack Mount Kit - Long
www.aten.com, and download the full user manual.
2
Requirements
External Console
• A VGA, SVGA, or multisync monitor capable of the highest resolution that you will be using on
any computer in the installation
• A PS/2 or USB mouse
• A PS/2 or USB keyboard
Computers
The following equipment must be installed on the computers that connect to the KL1508
KL1516 KVM ports:
A
• A VGA, SVGA or multisync port
• A Type A USB port and USB host controller (for USB KVM adapter cable connection, see
following section)
- or -
• 6-pin Mini-DIN keyboard and mouse ports (for PS/2 KVM adapter cable connection, see
following section)
KVM Adapter Cables
• Cat 5e/6 cable is required to connect the KL1508 / KL1516 to one of the KVM adapter cables.
A A
• The following KVM adapter cables are required for use with the KL1508
Function Module
Connect to devices with PS/2 ports KA7920 / KA7520 / KA7120
Connect to devices with USB ports KA7970 / KA7570 / KA7170
KA7166 / KA7168 / KA7169
Connect to Sun Legacy systems (with 13W3 port) KA7130
Connect to Sun USB systems KA7170
Connect to serial based devices KA9140
3

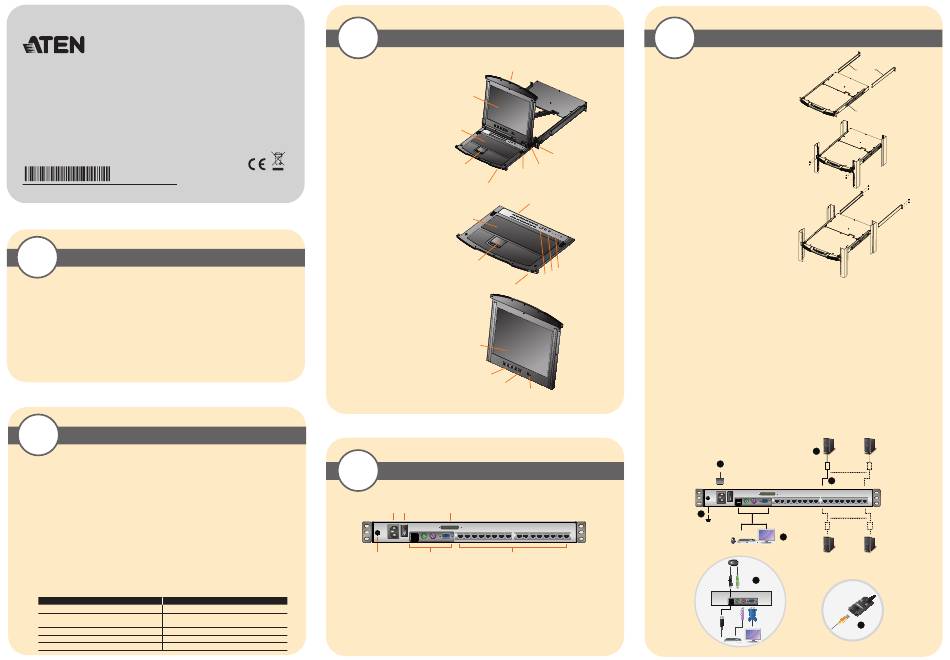

Hardware Review (Front View)
1, Upper Handle
2. LCD Module
3. Keyboard Module
4. Lower Handle
5. Power LED
6. Keyboard Release Catch
7. LCD Release Catch
8. Rack Mounting Tabs
Keyboard Module
1 Keyboard
2 Touchpad
3. External Mouse Port
4. Station ID LED
5. Station Selection Area
6. Lock LEDs & Reset Switch
7. Port Selection Buttons and LEDs
LCD Module
1. LCD Display
2. LCD Controls
3. LCD On/Off Button
4. Firmware Upgrade Section
4
Hardware Review (Rear View)
2 3
or
A
1
1. Grounding Terminal
2. Power Socket
3. Power Switch
/ KL1516 :
A A
Note: The front and rear panel views are similar for the KL1508
the KL1508
1
2
3
8
4
7
6
5
7
1
2
6
4 5
3
1
2
3
4
4
5 6
4. Daisy Chain Ports
5. Console Ports Section
6. KVM Port Section
, the difference being that
A
has only 8 buttons on the control pad and 8 ports in the real panel.
A
5
Hardware Installation
Rack Mounting
A standard rack mounting kit is provided
with your KL1508 / KL1516 . The kit
A A
enables the switch to be mounted in rack
with a depth of 42–77 cm.
To rack mount the switch, do the following:
1. While one person positions the switch in
the rack and holds it in place, the second
person—using the screws provided with
the rack mounting kit— loosely screws
the front brackets to the rack.
2. While the first person still holds the
switch in place, the second person slides
the L brackets into the switch's side
mounting brackets, from the rear until the
bracket flanges contact the rack, then –
using the screws provided with the rack
mounting kit – screws the L brackets to
the rack
3. After the L brackets have been secured,
tighten the front bracket screws.
Single Station Installation
In a single stage installation, there are no additional KVM switches daisy chained down from the
KL1508 / KL1516 . To set up a single stage installation, refer to the installation diagrams (the
A A
numbers in the diagram correspond with the numbers of the instruction steps), and do the following:
1. Ground the KL1508 / KL1516 by connecting one end of the grounding wire provided with your
A A
switch to the grounding terminal, and the other end of the wire to a suitable grounded object.
Note: Do not omit this step. Proper grounding helps to prevent damage to the unit from surges or
static electricity
2. Plug the console keyboard, monitor, and mouse into the unit's console ports. The ports are color
coded and marked with icons for easy identification.
Note: You can use any combination of keyboard and mouse connections. For example, you can use a
PS/2 keyboard with a USB mouse.
3. Use Cat 5e/6 cable to connect any available KVM port to a KVM adapter cable that is appropriate
for the computer you are installing.
Note: To support a resolution of 1280x1024, the recommended maximum distance between the unit
and the KVM adapter cable is 50 meters.
4. Connect the KVM adapter cable to the computer.
Plug the connectors on the KVM adapter cable into the appropriate ports of the computer you are
installing.
5. Plug the female end of the power cord into the KL1508 / KL1516 's power socket; plug the male
A A
end into an AC power source.
After the KL1508 / KL1516 is cabled up, you can turn on the power. After it is powered up, you
A A
can turn on the servers
4
5
3
1
2
2
L Brackets
Side Mounting
Bracket (Typ.)
3
