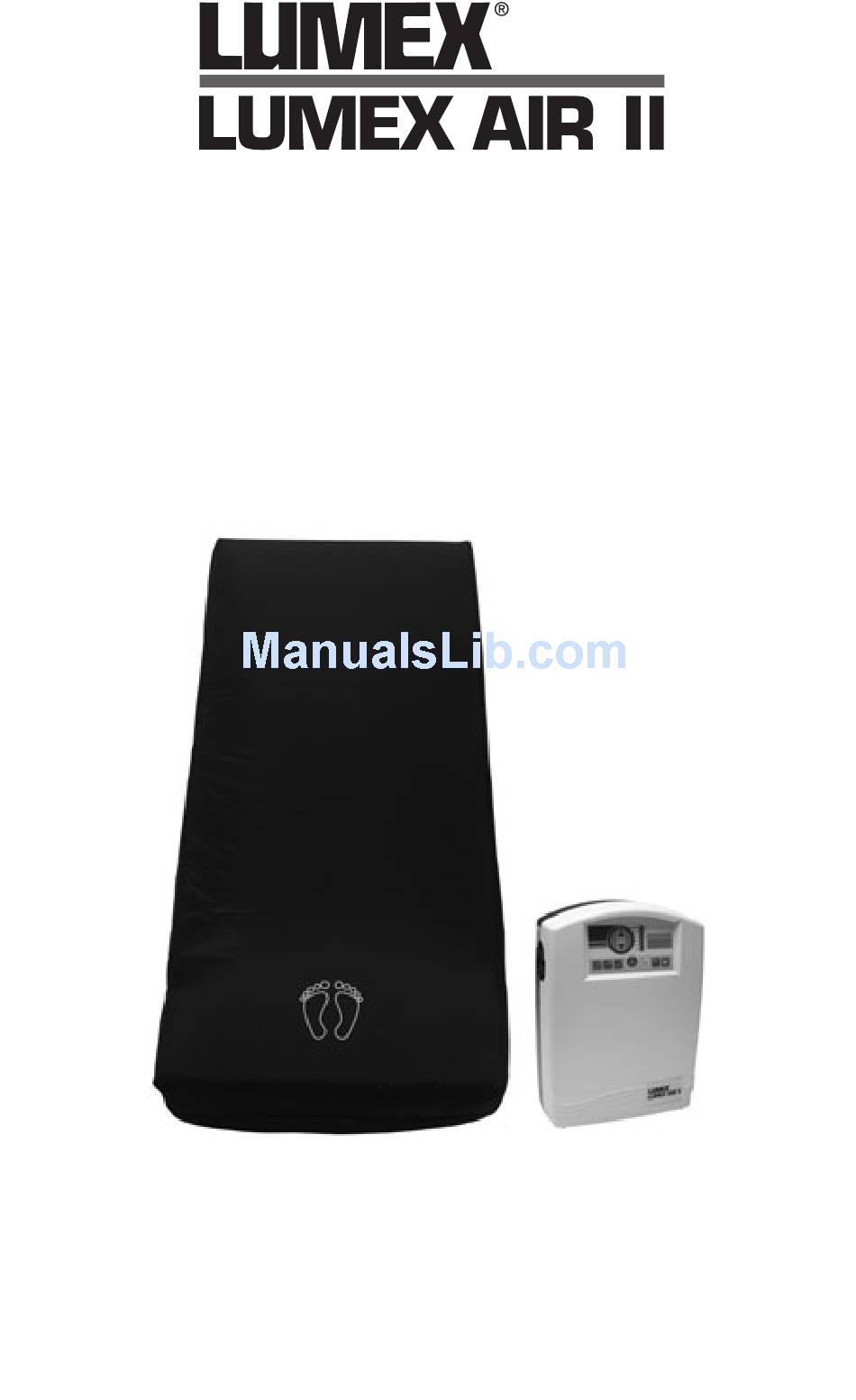

Low Air Loss Therapy
Mattress Replacement System
Model # 763400A
O O p p e e r r a a t t o o r r s s M M a a n n u u a a l l
P P l l e e a a s s e e r r e e a a d d t t h h e e m m a a n n u u a a l l b b e e f f o o r r e e u u s s e e
GF0500067REVA05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 763400A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumex 763400A

Summary of Contents for Lumex 763400A

  • Page 1 Low Air Loss Therapy Mattress Replacement System Model # 763400A O O p p e e r r a a t t o o r r s s M M a a n n u u a a l l...

  • Page 2: Table Of Contents

    Contents Important Safeguards ............2 Introduction .

  • Page 3: Important Safeguards

    READ ALL INSTRUCTIONS BEFORE USING DANGER - To reduce the risk of electrocution: 1. Always unplug this product immediately after using. 2. Do not use while bathing. 3. Do not place or store product where it can fall or be pulled into a tub or sink. 4.

  • Page 4: Introduction

    This manual should be used for initial set up of the system and for reference purposes. LumexAir systems use most advanced technologies and mattress materials to deliver the best quality, comfort and whisper-quiet operations to you and your customers. Most systems in LumexAir are recommended for prevention and treatment of pressure ulcers up to and including stage IV pressure ulcers.

  • Page 5: Product Description

    2. Product Description 2.1 Pump and Mattress System The system consists of a high volume airflow blower and numerous large air loss holes on the mattress to achieve the true low air loss therapy. It also provides excellent ventilation and keeps patients dry from humidity. The 10 inch high mattress, which consists of 8 inch high air bladders at the top and a layer of 2"...

  • Page 6: Installation

    The pump unit and mattress are packaged in a separate box to secure its contents inside. Unpacking these boxes to remove the pump unit and mattress and check for any damage, which may have occurred in shipping. If there are damages, please contact your dealer immediately.
  • Page 7 Installation tips are listed below: After installation, the extra wire of the power cord, if any, should be neatly arranged to avoid any tripping accidents. The equipment should be firmly placed at position where users/doctors can access easily. NOTE 1. Make sure the pump unit is suitable for the local power voltage.

  • Page 8: Operation

    NOTE: Always read the operating instructions before use. Control Button POWER Two conditions: 1. To turn on control unit. It takes approximately 1 minute to inflate the mattress. The default setting is at a comfort range, level 6, for the quickest inflation time.
  • Page 9 Control Button AUTOFIRM For maximum inflation of mattress. All other functions are disabled unless this button is pressed again. This mode will last for 20 minutes and then it will return to default setting automatically. STATIC For true low air-loss therapy mode, similar to a regular air mattress with very low air pressure support and true low air-loss therapy.
  • Page 10 1. Press the POWER button on the display panel to start the system. 2. For faster inflation, the AUTOFIRM function can be activated. This mode will last for 20 minutes and then it will return to default setting automatically. 3. After the mattress is fully inflated, user can change the setting according to their preference or recommended by physician.

  • Page 11: Power Failure Alarm

    connecting tubes. If necessary, replace any damaged cells or tubes or contact local qualified dealer for repair. If the control unit is equipped without audible alarm feature, the Low Pressure Indicator will flash until the low-pressure fault condition is solved. If the control unit is equipped with audible alarm feature, the Low Pressure indicator will flash and the alarm will sound when air pressure is below normal (preset pressure).

  • Page 12: Storage

    1. Pull the CPR tags and make sure all cells are deflated. 2. Lay the mattress out flat and upside down. 3. Protect the air tube coupler by putting it in the inner side of mattress. 4. Roll the mattress from the head end towards the foot end. 5.

  • Page 13: Troubleshooting

    Problem Power is not ON Alarm is on (audible & visual) Patient is bottoming out Mattress becomes too firm and pressure can’t be reduced. Air Mattress is loose Air tube connector won’t fit into the pump unit Large airflow from air bladders If your questions can't be answered with above information, it might require a technician to take care the problem.

  • Page 14: Technical Description

    Specifications: Pump Power Supply (Note: See rating label on the product) Fuse Rating Dimension Weight Temperature Environment Humidity Atmosphere Classification Mattress Dimension (LxWxH) Weight * * The weight and dimension of mattress is measured without foam. Consult the distributor or EU representative for further technical documents. NOTE: The specifications, also apply to those areas operating with the same power supply.
