VBOX III User Guide
CAN / RS232 Ports (continued)

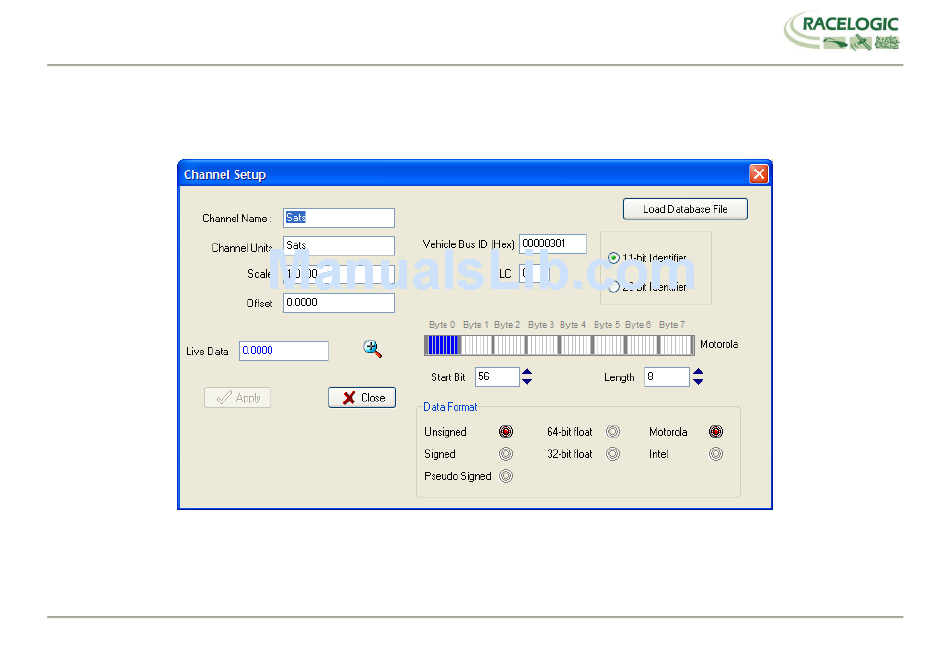

The VBOX III can log up to 8 user defined CAN bus signals on CAN port B. Configuration is performed using the VCI Modules tab under Log Channels in the
VBOX.EXE setup window. CAN signal parameters can be entered manually by the user or imported directly from a CAN database (.DBC) file if available.
Page 13 of 30
15/07/2011
