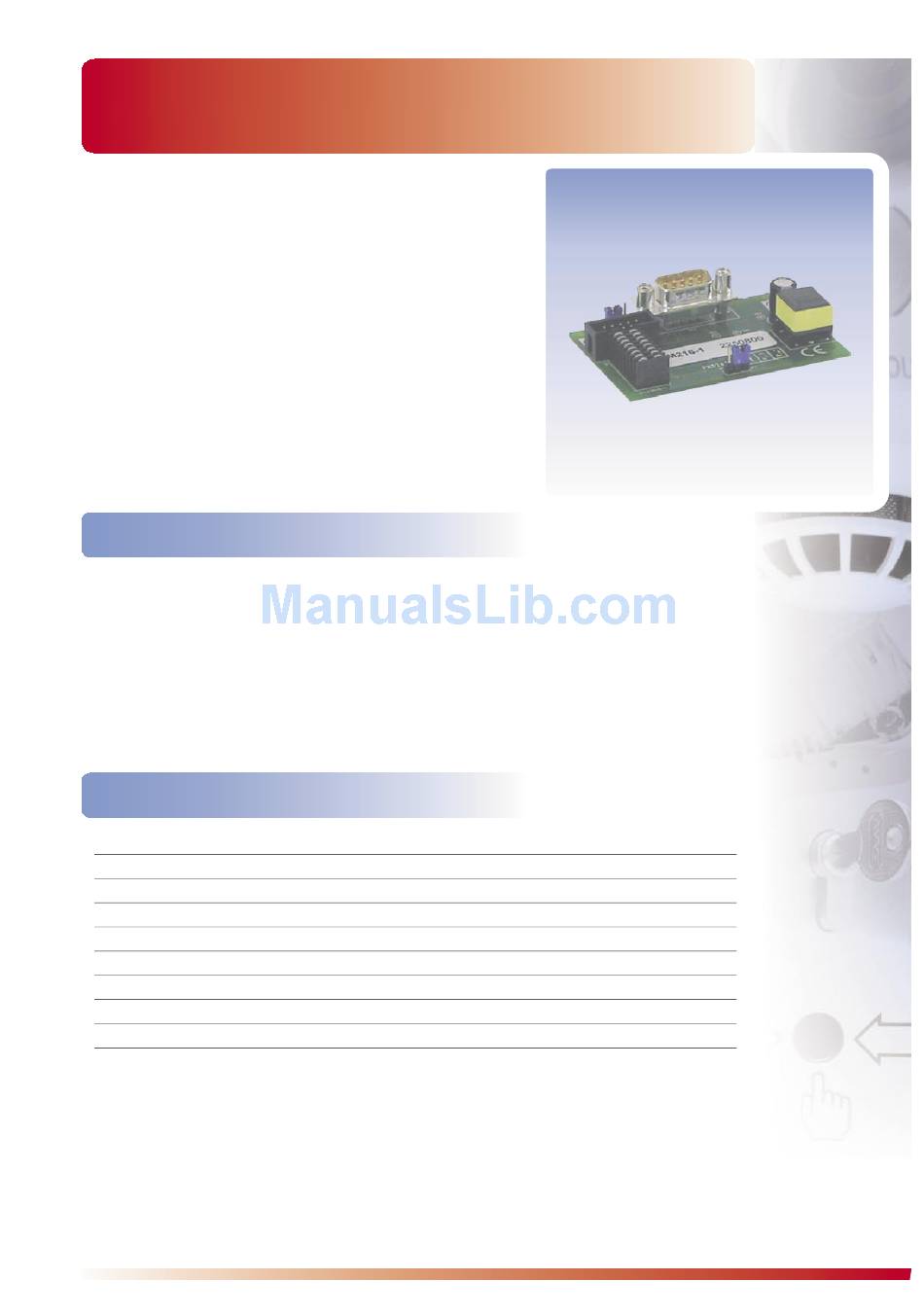

LST SIM216-1 Specification Sheet

Serial Interface Module
SIM216-1
• Suitable for fi re detection control
panels Series BC216 and BC016
• Parameters for function and baud
rate can be freely set
• Selective event output by means of
fi lters
• Monitoring of the data line
• Galvanic separation
Description
The Serial Interface Module SIM216-1 provides fi re de-
tection control panels Series BC216 or Series BC016,
respectively, with a galvanically separated RS232C in-
terface. Devices with a serial interface (e.g., protocol
printer, PC with parameter setup software or electronic
monitoring system) can be connected to the fi re detec-
tion control panel with the aid of the componentry. The
transfer rate can be adjusted, if required.
Specifi cations
Current consumption at 24V
Interface
Signal lines
Connection type
Ambient temperature
Dimensions L × W × H
Weight
Part No.
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
The SIM216-1 occupies one of the two slots for serial
interfaces in fi re detection control panels Series BC216.
In BCnet sectional control panels, only one SIM216-1
module can be installed because one slot is always
used by the Network Interface Module for communica-
tion with the other BCnet sectional control panels. In
BC016 fi re detection control panels, only one slot is
designated for the installation of the Serial Interface
Module SIM216-1.
typ. 10mA
RS232C, galvanically isolated, up to 57.6kBaud
RxD, TxD, CTS/DTR
D-SUB plug, 9-pin
-5°C to +50°C
70 × 45 × 20 (mm)
50g
214025
Serial Interface Module SIM216-1
A
SIM216-1_DBL_LST_EN_0804.PDF • PAGE 1
