Safety, Operation and Maintenance Manual
Important Information and Safety Instructions
Register your Machine at www.jondon.com
Serial No:
© 2013 Copy Rights Reserved Jon-Don, Inc.
with Parts List
Please read before use!

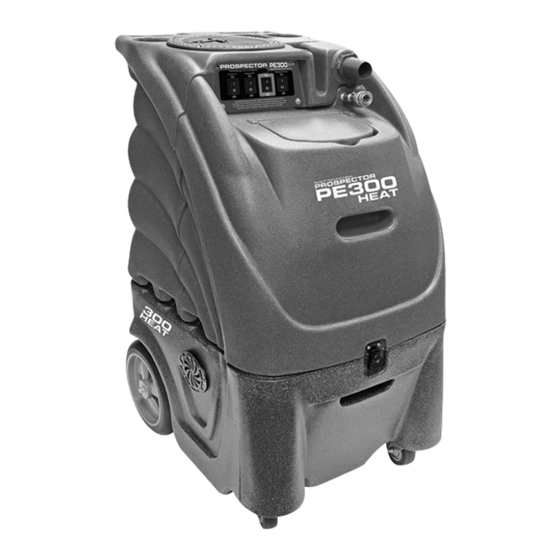

Model No. PE300
300 PSI
REGISTER
YOUR
MACHINE
ONLINE!
Reliable Power
Innovative Design
Safe & Easy to Use
Powerful Extracting
Easy Transport
Patented Features
Advertisement
Table of Contents
Related Manuals for Jon-Don Prospector PE300
Summary of Contents for Jon-Don Prospector PE300
- Page 1 YOUR MACHINE ONLINE! Model No. PE300 Reliable Power Innovative Design Safe & Easy to Use Important Information and Safety Instructions Powerful Extracting Register your Machine at www.jondon.com Easy Transport Serial No: Patented Features © 2013 Copy Rights Reserved Jon-Don, Inc.
-
Page 2: Dear Valued Customer
The Machine Registration Form must be completed online at the time of purchase. If proof of purchase cannot be identified, the warranty start date is ninety (90) days after the date of sale to an authorized Jon-Don, Inc. -
Page 3: Safety Instructions
1.0 Safety Instructions READ THIS MANUAL BEFORE USING YOUR CARPET EXTRACTOR. KNOW THE PROPER OPERATION, CORRECT APPLICATIONS AND THE LIMITATIONS OF THIS EQUIPMENT BEFORE USE. Reduce the Risk of Fire, Electric Shock or Injury: • Use only as described in this manual. Use only the attachments recommended by the manufacturer. •... -
Page 4: Set-Up / Prepare Unit For Use
If moisture does enter the vacuum motors, contact your local Jon-Don service center. To prevent moisture from damaging the vacuum motors during storage, empty the recovery tank and store with the lid open. -
Page 5: Vacuum System
If moisture does enter the vacuum motors, contact your local Jon-Don service center. To prevent moisture from damaging the vacuum motors during storage, empty the recovery tank and store with the lid open. -
Page 6: Maintenance
5.0 Maintenance Regular maintenance is required to keep your Carpet Extractor in proper working condition. Failure to properly maintain your machine could void warranty. Thoroughly clean all equipment and accessories after each use: • Rinse the solution and recover tanks with clean water. •... -
Page 7: Storage And Freeze Protection
Clean Pump Inlet Filter CAUTION: before proceeding with this procedure, make sure both the power cords are disconnected. • To examine the filter, open the solution tank lid on the front of the machine. The filter is in the bottom of the solution tank. -
Page 8: Troubleshooting Guide
7.0 Trouble Shooting Guide Never operate this Carpet Extractor when the equipment is not performing as expected or when any part is visibly damaged. When repair is needed, take the equipment to an authorized service center. System Problem Possible Cause Remedy Vacuum No Vacuum /... -
Page 9: Machine Schematic Drawing
8.0 Machine Schematic Drawing 2000W Heater Assembly: MP-10091025-EA (8) 12-Gallon, 300 PSI Carpet Extractor with Heat... -
Page 10: Machine Parts List
9.0 Machine Parts List Item No. Item Description Qty. Drawing No. SN-12-ST-BLUGRAN 12-Gallon Solution Tank - Blue Granite Par of Solution Tank Insert Molded in to Solution Tank 80-0017 Bulkhead Fitting for Extractor Part of 80-0017 Bulk Head Fitting 10-0846 1/4”... - Page 11 9.0 Machine Parts List Continued Item No. Item Description Qty. Drawing No. 80-0040-C 46” of Blue 3000 psi Hose for Extractor Complete with Fittings and Clamps 80-0044-S 30” Black Hose with Fittings and Clamps 10-0835-N Nut for Pump Bolt on Extractor Hose Fitting Part of 80-0044-S Hose Fitting...
- Page 12 By Jon-Don, Inc. Please fill out the following information: Model No: Serial No: Distributor Name: Distributor Phone No: Date of Purchase: 400 Medinah Road, Roselle, IL 60172 Phone: 800-556-6366 | Fax: 888-344-6878 www.jondon.com © 2013 Copy Rights Reserved Jon-Don, Inc.
