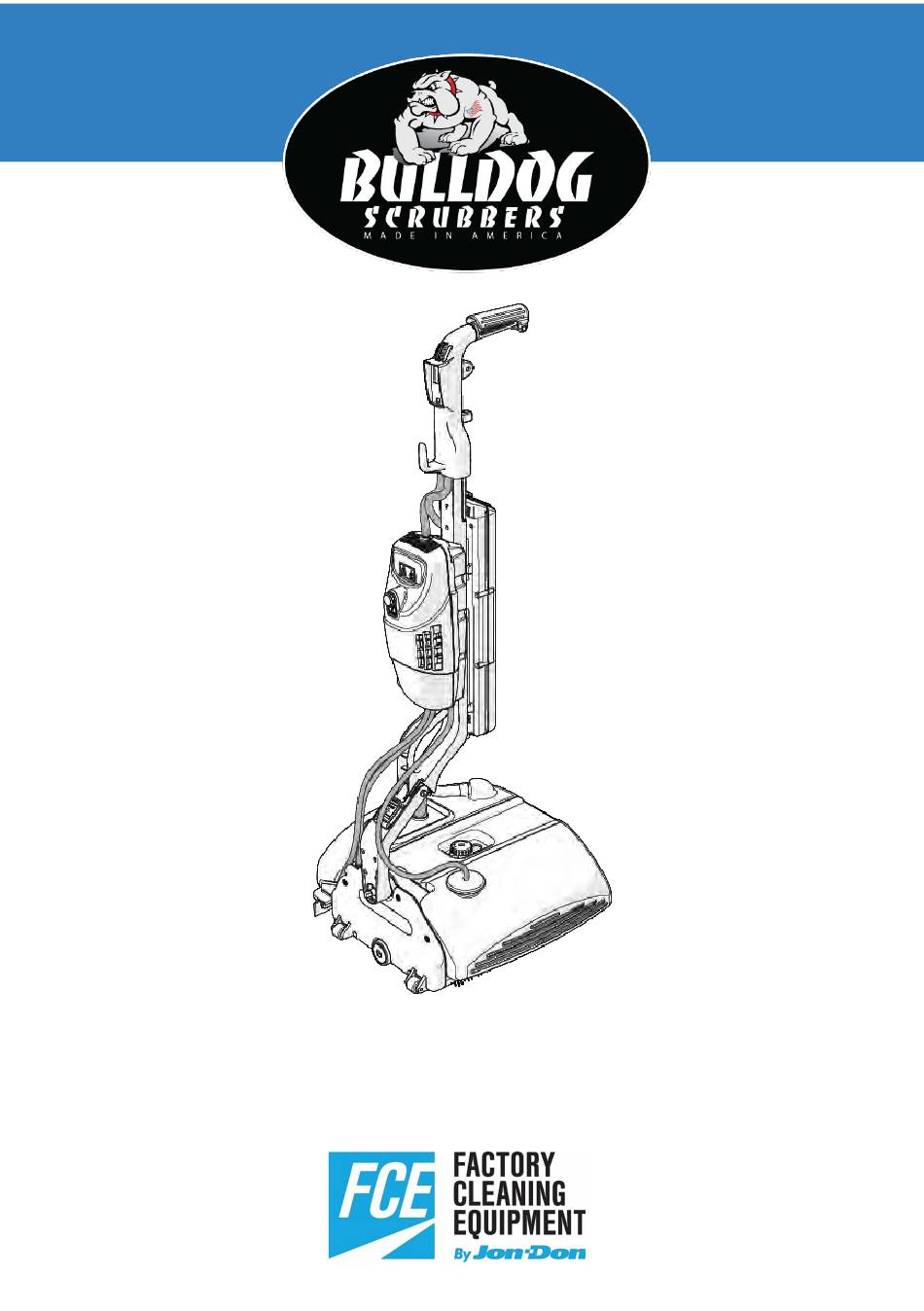

  • Page 1 User and maintenance manual BULLDOG MINI COMPACT FLOOR SCRUBBER/SWEEPER...

  • Page 2: Table Of Contents

    BULLDOG MINI Table of Contents 1. PURPOSE AND CONTENT OF THE MANUAL ________ 1 1.1 Symbols ..................1 1.2 Purpose of the manual ..............1 1.3 Conservation ................2 1.4 Updating the manual ..............2 1.5 Confidentiality ................2 1.6 Recipients ...................2 2. GENERAL INFORMATION ________________________ 3 2.1 Manufacturer identification data ..........3 2.2 Liability limitations ..............3 2.3 Identification plate ..............4...
  • Page 3 BULLDOG MINI 4.5 Lithium ion battery ..............19 4.5.1Storing for a long period of time ............20 4.6 Type of detergents ..............21 5. ASSEMBLING THE APPLIANCE ___________________ 22 5.1 Packing contents ................23 5.2 Assembling the machine ............25 5.2.1Disassembling the handle ..............25 5.3 Installing the battery ..............26 5.4 Installing the squeegee ..............27 6.
  • Page 4 BULLDOG MINI 7.4 Conveyors .................49 7.5 Water filter maintenance............50 7.6 Routine maintenance table .............51 7.7 Disposal ..................52 7.7.1Differentiation and sorting of the materials ........52 7.7.2Disposing of the lithium battery ............. 53 8. TROUBLESHOOTING ___________________________ 54 Rev.

  • Page 5: Purpose And Content Of The Manual

    BULLDOG MINI PURPOSE AND CONTENT OF THE MANUAL 1. PURPOSE AND CONTENT OF THE MANUAL Symbols To ensure the safety of persons and property, this manual contains special symbols which draw attention to particularly dangerous situations, warnings and important information: DANGER! Hazard with a risk of injury or even death.

  • Page 6: Conservation

    BULLDOG MINI PURPOSE AND CONTENT OF THE MANUAL Conservation The manual must be kept with care and near the appliance, protected from liquids and other substances that could compromise its readability and it must be readily accessible at any moment. The manual and the Declaration of conformity are integral parts of the appliance, and therefore, they must accompany it during its whole working life.

  • Page 7: General Information

    BULLDOG MINI GENERAL INFORMATION 2. GENERAL INFORMATION Distributor identification data BULLDOG MINI 223 ROLLING HILL ROAD 1578A BEVERLY CT MOORESVILLE, NC 28117 AURORA, IL 60502 Phone: (800) 793-3790 Fax: 630 236 2405 Website: www.thesweeper.com Liability limitations The manufacturer declines all liability for damage to persons or property caused by: •...

  • Page 8: Identification Plate

    BULLDOG MINI GENERAL INFORMATION Identification plate A plate 1 bearing the essential identification data for any assistance or spare parts request is applied to the appliance. The plate contains the following data: Model Serial number Year of manufacture Weight CAUTION Do not remove the identification plate for any reason.

  • Page 9: Reference Standards And Conformity

    BULLDOG MINI GENERAL INFORMATION Reference standards and conformity: The machine described in this manual complies with the following standards: • EN 55014-1:06 + A1:09 + A2:11 • EN 55014-2:15 • EN 60335-1:12 + A11:14 • EN 60335-2-67:09 • EN 61000-3-2:14 •...

  • Page 10: 1Declaration Of Conformity

    BULLDOG MINI GENERAL INFORMATION 2.4.1 Declaration of conformity The EC Declaration of Conformity, provided together with the appliance, is the document with which the Manufacturer certifies, under his own responsibility, that he has complied with the European Directives, Standards and Technical Specifications (specified in the Declaration) necessary for the machine to be compliant with the essential requirements for sale and use in the European Union.

  • Page 11: Warranty

    BULLDOG MINI GENERAL INFORMATION Warranty BULLDOG SCRUBBERS guarantees this product against any manufacturing or material defects for a period of two years since the date of purchase. During this period BULLDOG SCRUBBERS will grant a free repair or substitution of any defective product at its discretion.

  • Page 12: General Safety Instructions

    BULLDOG MINI GENERAL SAFETY INSTRUCTIONS 3. GENERAL SAFETY INSTRUCTIONS This chapter gives the necessary information on how to use the appliance fully complying with the safety regulations in force. CAUTION The manufacturer declines all responsibility for any damage to property and/or persons caused by the failure to comply with the instructions provided in the following Chapter.

  • Page 13: General Requirements

    BULLDOG MINI GENERAL INFORMATION General requirements CAUTION Read this manual carefully and observe the instructions provided before using, testing and operating the appliance. To avoid hazards to persons or damage to the appliance, follow the instructions and the code of conduct indicated below: •...

  • Page 14: Electrical Hazards

    BULLDOG MINI GENERAL INFORMATION • Do not modify or tamper with the appliance. • Do not remove the guards. • Use only brushes supplied with the appliance or those specified in the instruction manual. • Use personal protective equipment (PPE) suitable for the work to perform. •...
  • Page 15 BULLDOG MINI GENERAL INFORMATION • Do not transport or store the battery together with metal objects, as for example: hair pins, necklaces, etc. • Do not hit, tread on or throw the battery. • Do not disposed of the battery improperly. Rev.

  • Page 16: Safety Signs

    BULLDOG MINI GENERAL INFORMATION Safety signs The appliance is equipped with plates and pictograms drawing the attention in a fast and easy way to objects and situations that can cause certain hazards, and in particular: • Prevent dangerous behaviours; • Warn the exposed persons of a risk or hazard;...

  • Page 17: Noise Level

    BULLDOG MINI GENERAL INFORMATION Noise level The appliance was designed and constructed in such a way to minimise the noise emitted during its normal operation. The sound pressure level weighted and generated by the appliance's various components is <70 dB (A). It was measured at the operator's ear during the normal work cycle and following the criteria set forth by the regulations in force.

  • Page 18: Technical Characteristics

    BULLDOG MINI TECHNICAL CHARACTERISTICS 4. TECHNICAL CHARACTERISTICS General description The BULLDOG MINI machine has been designed and manufactured to clean floors. During its design and construction, all necessary measures were taken to produce a high quality, reliable product that is fully compliant with the regulations in force and with particular regard to accident prevention.

  • Page 19: Description Of The Components

    BULLDOG MINI GENERAL INFORMATION Description of the components Safety fuse Safety handle (Start & Stop) 16 Amp. mm. 5x20 21 Battery charger socket Handle 22 ON/OFF button Suction hose Handle with suction unit 23 Squeegee assembly Detergent solution tank 24 Squeegee holder Suction recovery tank 25 Squeegee fastening knob Detergent solution hose...
  • Page 20 BULLDOG MINI GENERAL INFORMATION F.31 Rev.

  • Page 21: 1Technical Specifications

    BULLDOG MINI GENERAL INFORMATION 4.2.1 T����������� BULLDOG MINI Dimensions: Length - Width - Height 490 x 410 x 1120 Brush diameter Brush length Tank capacity Recovery tank capacity Number of brushes g/cm Brushes pressure on flooring Brush speed on floor 3.75 Washed track/width Theoretical working surface...

  • Page 22: Brushes

    BULLDOG MINI GENERAL INFORMATION Brushes The original BULLDOG MINI brushes are tested and balanced individually with special electronic instruments and guarantee the absence of vibrations that could generate mechanical stress for the appliance and the floors. The brushes can have different colours according to their use characteristics: Brush colour GREY All-purpose for light dirt of all types of flooring, smooth...

  • Page 23: Lithium Ion Battery

    BULLDOG MINI GENERAL INFORMATION Lithium ion battery DANGER! Read this manual carefully and observe the instructions provided before using, testing and operating the battery and the battery charger. The Manufacturer declines any responsibility for any damage to property and/or persons deriving from failure to observe the warnings indicated in this section or the incorrect use of the battery.

  • Page 24: 1Storing For A Long Period Of Time

    BULLDOG MINI GENERAL INFORMATION • If the battery terminals are dirty, the appliance correct operation might be jeopardised. Clean the dirty terminals before use by means of a dry cloth. • The battery and the battery charger must be disposed of correctly, following the national regulations in force.

  • Page 25: Type Of Detergents

    BULLDOG MINI GENERAL INFORMATION Type of detergents The appliance can be used with detergents intended for this type of appliance. When using detergents, follow the detergent manufacturer's instructions regarding dilution. Do not use unsuitable detergents or aggressive and strong acid-based chemicals like: •...

  • Page 26: Assembling The Appliance

    BULLDOG MINI ASSEMBLING THE APPLIANCE 5. ASSEMBLING THE APPLIANCE For packing and transport purposes, the appliance is delivered disassembled. Check the contents of the package, making sure that all the components of the appliance are all present and in good condition. WARNING Contact the Customer Service Centre if some components are missing or damaged.

  • Page 27: Packing Contents

    BULLDOG MINI ASSEMBLING THE APPLIANCE Packing contents Make sure that the components of the appliance contained in the package are the same as those indicated in the table below: PACKING CONTENTS Machine with standard grey brushes Handle Handle with suction unit Squeegee assembly •...
  • Page 28 BULLDOG MINI ASSEMBLING THE APPLIANCE F.32 Rev.

  • Page 29: Assembling The Machine

    BULLDOG MINI ASSEMBLING THE APPLIANCE Assembling the machine WARNING Use the supplied hex wrench to assemble the handle as follows: To assemble the handle, proceed as follows: Insert the handgrip 1 into the handle 2 and fasten it using the plate 3 and the screws 4.

  • Page 30: Installing The Battery

    BULLDOG MINI ASSEMBLING THE APPLIANCE Installing the battery The battery 14 has to be charged before using the appliance for the first time (see section "6.2 Charging the battery"). To fit the battery, proceed as follows: Install the battery 14 on the handle 2. Screw the knob 15 to fasten the battery 14.

  • Page 31: Installing The Squeegee

    BULLDOG MINI ASSEMBLING THE APPLIANCE Installing the squeegee The squeegee has to be installed before the appliance is used for the first time. Insert the squeegee 18 under the suction recovery tank 19. Connect the squeegee 18 to the springs 20 by pressing them slightly upwards to attach the magnets 21 to the appliance.

  • Page 32: Operation And Use

    BULLDOG MINI OPERATION AND USE 6. OPERATION AND USE DANGER! Before starting the appliance the operator must have read and understood the instruction manual. CAUTION Before starting to clean floors, choose the most suitable brushes and detergents (see chapter "4. TECHNICAL CHARACTERISTICS").

  • Page 33: 2Recovery Tank

    BULLDOG MINI OPERATION AND USE The tank 1 can be filled in the following ways: With the tank removed from the appliance: Remove the tank 1 and refill under a water tap. Add a non-foaming detergent. Stir the solution and re-insert the tank 1 into its housing. With the tank fitted to the appliance: Mix the detergent with water in a recipient.
  • Page 34 BULLDOG MINI OPERATION AND USE Once full, the recovery tank 5 must be emptied by removing it from its seat. Remove cover 6. Lift and remove the recovery tank 5 and empty it. CAUTION The disposal of the dirty water must be carried out in compliance with the regulations in force.

  • Page 35: Charging The Battery

    BULLDOG MINI OPERATION AND USE Charging the battery DANGER! Do not use battery chargers (7) other than the one supplied by the Manufacturer. Doing this, might seriously damage the battery (8) or cause it to explode violently. The lithium ion battery 8 requires a special battery charger 7 supplied with the appliance. The charge lasts about four hours.

  • Page 36: 1Battery Charge Level

    BULLDOG MINI OPERATION AND USE DANGER! Do not try to open, pierce or burn the battery container. Do not weld the cables at the ends of the batteries. Do not short circuit positive and negative terminals. DANGER! Do not store, use or recharge the Lithium-ion battery in environments with temperatures above 40°C.

  • Page 37: Switching On The Machine

    BULLDOG MINI OPERATION AND USE Switching on the machine Press the ON/OFF switch 12 on the handle 13. The switching on of the appliance is indicated by the lighting up of the LED 11 for 60 seconds. Depending on the colour, the LED indicates the battery's charge level. Press the ON/OFF WATER 14 button to start to dispense water.

  • Page 38: Bi-Directional Cleaning System

    BULLDOG MINI OPERATION AND USE Bi-directional cleaning system This system allows the work position to be reversed thanks to the two-way handle 13. Reversing the handle 13 from right to left and vice versa allows you to work in both directions and easily reach the opposite ends of every room, without having to change the position of the appliance.

  • Page 39: Starting Up The Appliance

    BULLDOG MINI OPERATION AND USE Starting up the appliance Remove the support foot 20 before starting the appliance. Grab the two-way handle 13 and lower it in one of the two possible directions (A or B). Start the appliance by pressing the yellow safety lever 19. CAUTION Make sure that you have removed the support tripod (20) before use to avoid damaging the appliance.

  • Page 40: Motor Protector

    BULLDOG MINI OPERATION AND USE Motor Protector The “Motor Protector” 21, is a safety device which stops the appliance in case conditions occur that overload the motor (e.g. foreign bodies caught in the brushes which can prevent their rotation, locking of the brushes for failed start-up due to great friction with the floor, mechanical fault, electric motor fault, poor supply of power, overheating, etc.).

  • Page 41: Instructions On How To Clean Surfaces

    BULLDOG MINI OPERATION AND USE Instructions on how to clean surfaces Check that the handle is in the rest position (perfectly vertical). Switch on the appliance. DANGER! Carry out the procedures with utmost care to prevent any risk of falling, slipping or collisions. Use personal protective equipment (PPE) if deemed necessary.

  • Page 42: 1Work Stages

    BULLDOG MINI OPERATION AND USE 6.7.1 Work stages Procedure: From the starting position, move forward towards the corner as indicated in the figure. Once you have reached the corner, turn the machine around and move onto the second strip to wash, slightly overlapping the area that you have cleaned before. Repeat this operation until you have finished cleaning the floor.

  • Page 43: 2Cleaning Flooring

    BULLDOG MINI OPERATION AND USE 6.7.2 Cleaning flooring Install the supplied grey brushes. • Use a non-foaming and non-acid all-purpose cleaner (PH max. 9). • Start the appliance ("6.3 Switching on the machine") and start cleaning the floor. 6.7.3 Cleaning of heavily dirty, hard or dingy flooring To clean very dirty or caked flooring, proceed as follows: Use an all-purpose concentrated non-foaming and non-acid detergent (pH max.
  • Page 44 BULLDOG MINI OPERATION AND USE Raise A the squeegee holder 21 and carry out the pre-washing operations. When pre-washing has been completed, lower B the squeegee holder 21, switch on the suction motor (ON/OFF VACUUM button 16) and carry out the normal floor cleaning operations.

  • Page 45: 4How To Clean Parquet Floors

    BULLDOG MINI OPERATION AND USE 6.7.4 ������������� CAUTION Be very careful and carry out a few tests before starting to clean. Avoid wetting the floor too much, especially if you need to clean non-painted parquet floors. • Fit the grey brushes provided. •...

  • Page 46: Stopping The Appliance

    BULLDOG MINI OPERATION AND USE Stopping the appliance To stop the appliance, proceed as follows: Release the yellow safety lever 14; Move the handle to the vertical position (rest position); Press the switch 12 located on the handle 13; F.47 Rev.

  • Page 47: Transport

    BULLDOG MINI OPERATION AND USE Transport To transport the appliance: move the lever 22 upwards lower A the handle 13 lift A the appliance and slide it along on the two small rubber wheels 23 DANGER! If you have to lift the appliance and you deem it necessary, equip yourself with personal protective equipment (PPE).

  • Page 48: Maintenance

    BULLDOG MINI MAINTENANCE 7. MAINTENANCE We recommend carrying out routine maintenance interventions to keep the appliance in good working order. ELECTRICAL HAZARD! It is absolutely necessary to unplug and disconnect the appliance from the mains or battery before carrying out maintenance, replacement or cleaning operations.
  • Page 49 BULLDOG MINI MAINTENANCE To clean the appliance, proceed as follows: Remove the battery. Remove the cover 4. Remove the recovery tank 5. Remove the two tanks 6 that cover the brushes 7 and wash under running water, preferably using a flat brush. Clean thoroughly all corners and dry. Remove the suction recovery hose 8 and wash it under running water.

  • Page 50: 1Cleaning The Squeegee

    BULLDOG MINI MAINTENANCE 7.1.1 Cleaning the squeegee To clean the squeegee 9: remove the squeegee 9 by pulling it downwards A. wash the squeegee 9 under running water. replace B the squeegee 9 by inserting it under the suction recovery tank 5. F.51 Rev.

  • Page 51: Brush Maintenance

    BULLDOG MINI MAINTENANCE Brush maintenance Brushes require little routine maintenance. The high rotation speed during cleaning manages to centrifugate dirt and keep them clean and efficient at all times. At the end of each use, check the status of the brushes 7 and clean or replace them, if necessary.

  • Page 52: 1Replacing The Brushes

    BULLDOG MINI MAINTENANCE 7.2.1 Replacing the brushes The appliance is fitted with a patented "trigger fitting" which enables the brushes to be removed and replaced in a few seconds. In case of wearing, warping or simply for replacement of the brushes with brushes more suitable for the type of cleaning required, proceed as follows: Remove the brushes 7 pressing the release device 10 (figure A).

  • Page 53: Replacing The Scrapers

    BULLDOG MINI MAINTENANCE Replacing the scrapers Keep the two recovery tank scrapers (11) clean at all times. Replace them approximately every 150 work hours or when they are visibly worn. To replace the scrapers 11, proceed as follows: Remove the cover 4. Remove the recovery tank 5.

  • Page 54: Water Filter Maintenance

    BULLDOG MINI MAINTENANCE Water filter maintenance The water filter 14 should be checked periodically. Replace the filter if it is dirty. Remove the cap 15 remove the filter from the tank 16 replace the water filter 14 and reposition it in the tank 16. F.54 Rev.

  • Page 55: Routine Maintenance Table

    BULLDOG MINI MAINTENANCE Routine maintenance table OPERATION COMPONENT FREQUENCY Tank After each use. Scrapers After each use. Recovery tank After each use. Cleaning Appliance cleaning After each use. Brushes After each use. Squeegee After each use. Suction recovery hose After each use. Water filter After each use.

  • Page 56: Disposal

    BULLDOG MINI MAINTENANCE Disposal CAUTION If the user disposes of the BULLDOG MINI incorrectly, he could be fined under current legislation. Professional users, who decide to dispose of the BULLDOG MINI at the end of its useful life and purchase a new equivalent machine with the same features can arrange for the old BULLDOG MINI machine to be collected at the same time as the new one is delivered.

  • Page 57: 2Disposing Of The Lithium Battery

    BULLDOG MINI MAINTENANCE 7.7.2 Disposing of the lithium battery The appliance is equipped with a lithium ion battery contained in a special fireproof, hermetically sealed plastic enclosure. It is easy to remove from the appliance by simply manually unscrewing a knob. The battery, at the end of its lifespan, must be disposed of separately from other waste.

  • Page 58: Troubleshooting

    BULLDOG MINI TROUBLESHOOTING 8. TROUBLESHOOTING The maintenance work authorized by BULLDOG SCRUBBERS is indicated in section "7. MAINTENANCE". The content of this chapter is not exhaustive. Instead, it aims to provide information on the most common problems in order to help specialized technicians to find the fault in question. CAUTION The indications under the term “SOLUTION”...
  • Page 59 BULLDOG MINI MAINTENANCE Sometimes the appliance does not start given the Lift slightly by tilting the strong friction of the handle. brushes. Scrapers left resting on and stuck to the Lift the recovery tank and conveyors by the dry clean the scrapers (see residual dirt deposited section "7.3 Replacing the...
