CSI 825A++
SMD REWORK STATION
INSTRUCTION MANUAL
By: Circuit Specialists, Inc.
Rev. 072503
Key Features
*Controlled by a CPU
*A full Touch switch and a two-way digital display
*Built in Vacuum system for removing the IC Chips after it has been de-soldered. (NOT A
DESOLDERING PUMP)
*Built in sleep mode when not used for 15min.
WARNING:
WARNING: When you first remove this unit from the box. Before turning the unit on,
YOU MUST RE-
MOVE THE SCREW in the center of the bottom panel. This screw holds the pump in place during
transportation.If this screw is not removed and the unit is turned on it may cause damage to your rework
station.
Advertisement
Table of Contents
Related Manuals for Circuit Specialists CSI 825A++
Summary of Contents for Circuit Specialists CSI 825A++

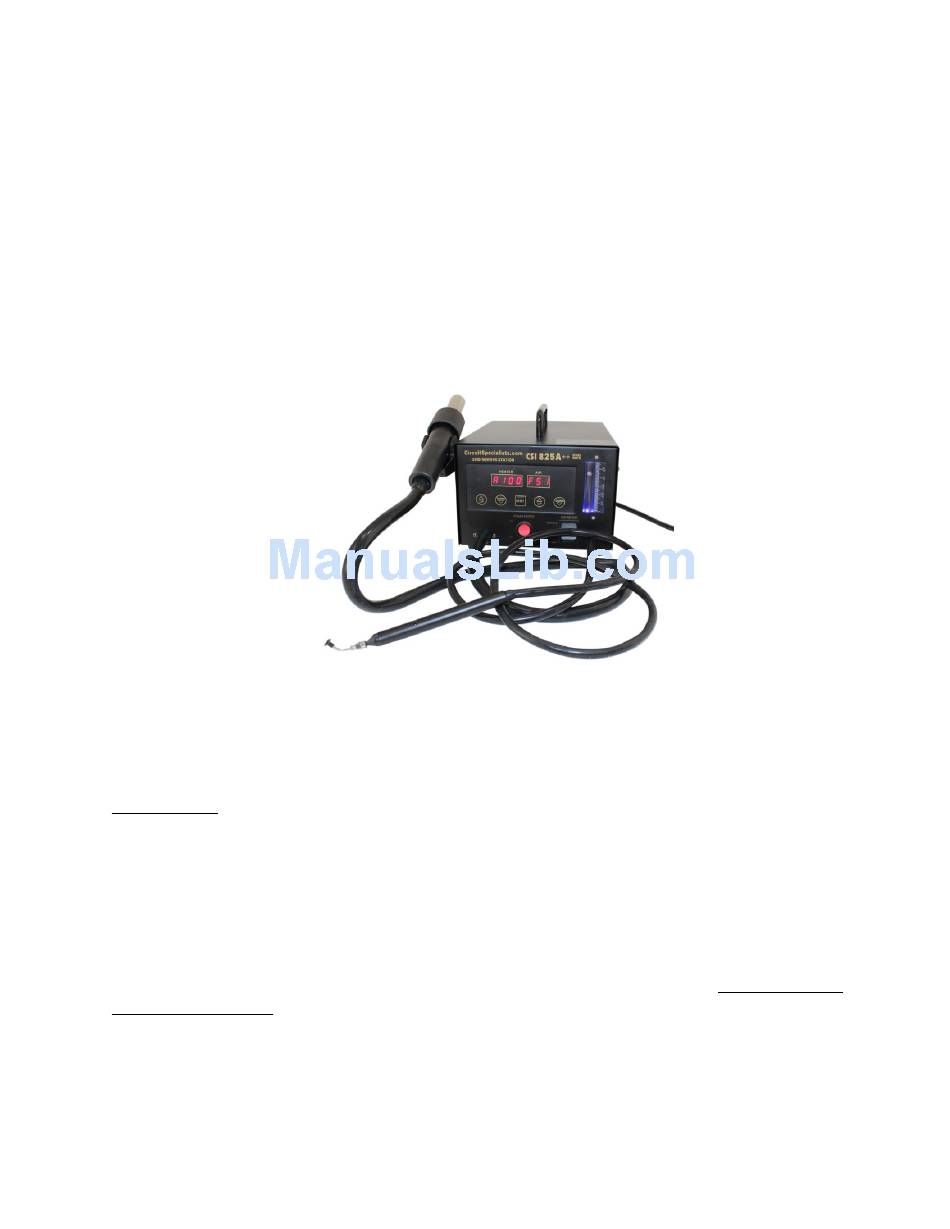

- Page 1 CSI 825A++ SMD REWORK STATION INSTRUCTION MANUAL By: Circuit Specialists, Inc. Rev. 072503 Key Features *Controlled by a CPU *A full Touch switch and a two-way digital display *Built in Vacuum system for removing the IC Chips after it has been de-soldered. (NOT A DESOLDERING PUMP) *Built in sleep mode when not used for 15min.
- Page 2 1-1 Product Specifications: Power Input: 1 1 0V AC Power: 320W (MAX) Air Pump: diaphragm type Capability: 23L/min. (MAX) Temperature: 100 DegC - 480 DegC 1-2 Function: *Temperature controlled with a digital display. *Unit heats quickly as soon as the unit it turned on. *ESD Safe with grounded tips.
- Page 3 The Digital display on the Left side should show a (A097) this is telling you that (a = Real time temperature and 97 = 97 DegC). So it’s Measuring 97 DegC. The second Digital display on the right side should show a (F15). This is telling you that the air flow is flowing at its lowest setting.
- Page 4 4. Operating Instructions 4-1. Preparing your work before using your rework station. Select the FP Pick-up wire, The size of the IC should match the size of the Wire. You have two choices, the 14mm or the 30mm. Select the proper nozzle size that will match the IC size. Installation of the nozzle should be done before you turn on the rework station to avoid burning ones self accidently.
- Page 5 * After using the rework station remember to allow the unit to cool down before turning it off. * Never drop or sharply jolt the unit. The unit has in it quartz glass, which can break if the unit is dropped or jolted.
