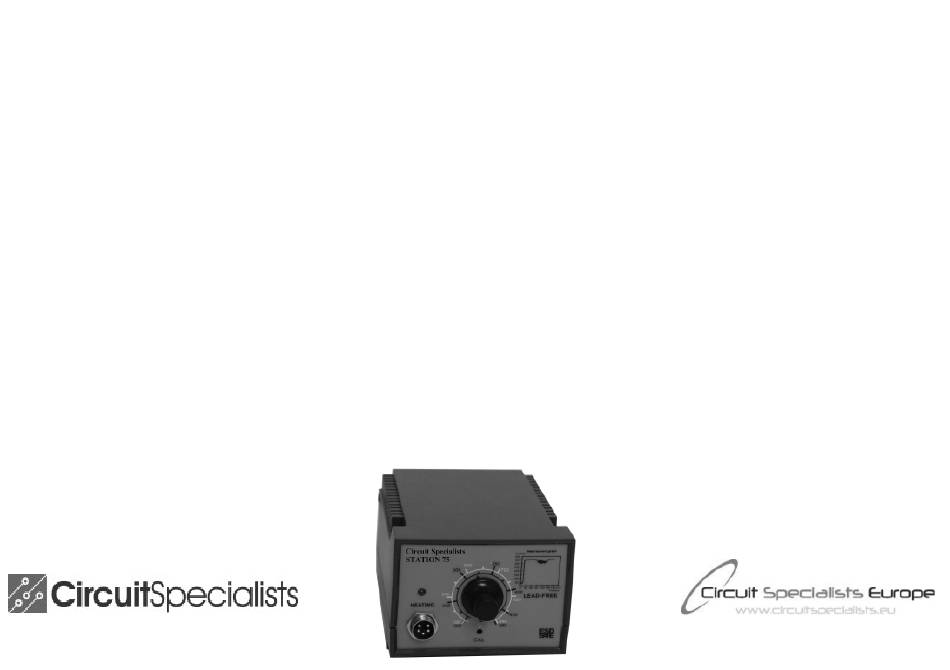

Circuit Specialists
Station 75
75 Watt Soldering Station
Instruction Manual
Thank you for purchasing the Circuit Specialists Station 75 Soldering Station. We strive to offer the best value
products possible . We hope you find this soldering station to be very suitable for your soldering needs.
Circuit Specialists....since 1971
We stock a variety of replacement tips as well as replacement soldering handles for this product. Please visit
our web site to view a full selection.
www.CircuitSpecialists.com for customers living in the USA
www.CircuitSpecialists.eu for customers living in Europe
Advertisement
Table of Contents
Related Manuals for Circuit Specialists Station 75
Summary of Contents for Circuit Specialists Station 75
- Page 1 75 Watt Soldering Station Instruction Manual Thank you for purchasing the Circuit Specialists Station 75 Soldering Station. We strive to offer the best value products possible . We hope you find this soldering station to be very suitable for your soldering needs.
- Page 3 Packing List ____________________________ Please check the contents of the Circuit Specialists Station 75 package to verify that all items listed below are included Station 75 Main Station body......1 Soldering Iron Handle ........1 Iron Holder (with tip cleaning sponge)..1...
- Page 4 General Specifications ______________________________________________________________________ Model: Station 75 Power consumption: …....75 Watts VAC Input:........110/120VAC for units shipped from the USA …........220/240VAC for units shipped from the U.K. Output Voltage to Soldering Wand: 24V AC Temperature Range:......200 °C to 480 °C / 392 °F to 896 °F Cord assembly.........
- Page 5 Tip Care and Use ______________________________________________________________________ Tip Temperature: High soldering temperatures can degrade the tip. Use the lowest possible soldering temperature. This unit has excellent thermal recovery capabilities allowing for effective soldering at lower temperatures. This strategy will also help protect the items being soldered from heat damage.
- Page 6 Notes:...
- Page 7 Excluded from this warranty are any consumables such as soldering tips and heating elements. Should the main body fail during the warranty period, Circuit Specialists will, at it's option repair or replace the damaged unit. This warranty applies only to manufacturing defects.
- Page 8 Circuit Specialists..since 1971 We stock a variety of replacement tips as well as replacement soldering handles for this product. Please visit our web site to view a full selection. www.CircuitSpecialists.com for customers living in the USA www.CircuitSpecialists.eu for customers living in Europe...
