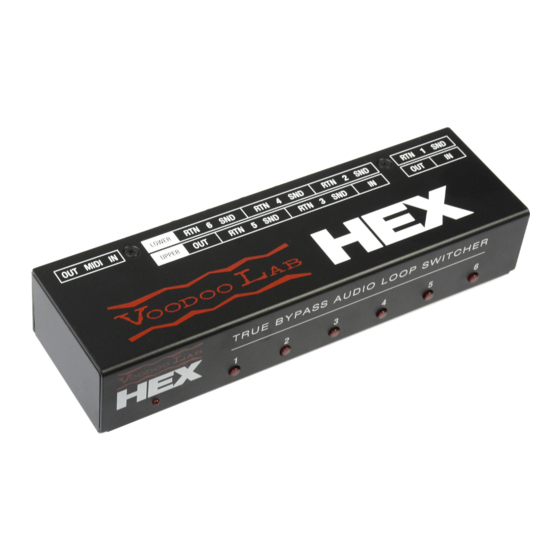

Voodoo Lab HEX User Manual

6 loop true bypass audio switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

HEX
User's Manual
(Preliminary)
www.voodoolab.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEX and is the answer not in the manual?

Questions and answers

Related Manuals for Voodoo Lab HEX

Summary of Contents for Voodoo Lab HEX

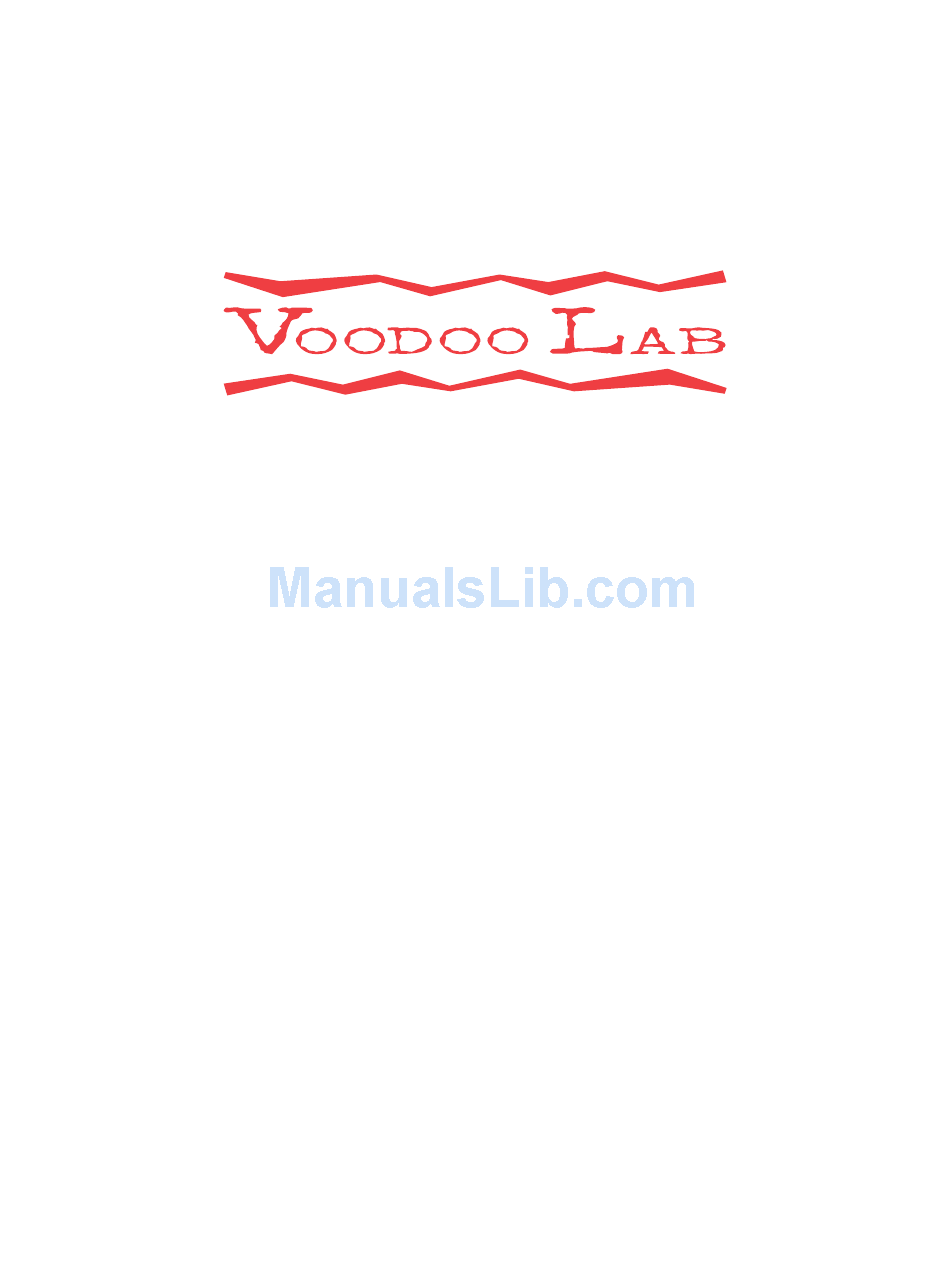

  • Page 1 User’s Manual (Preliminary) www.voodoolab.com...
  • Page 2 Copyright ©2014 by Digital Music Corporation. This publication is protected by copyright and all rights are reserved. Voodoo Lab, Pedal Power, Ground Control, Commander and Pedal Switcher are trademarks of Digital Music Corp. rev 0.8 12/2014...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION Overview Front Panel Rear Panel CONNECTIONS Power MIDI Audio OPERATION Overview Use with Ground Control Pro Use with Commander Use with Other MIDI Controllers SETUP . Enable MIDI Messages Set MIDI Channel Select MIDI Control Change Numbers Quiet Switching Factory Restore WARRANTY HOW TO REACH US...

  • Page 4: Introduction

    The isolated loop can also be used as an A/B selector, amp channel switching or remote tap tempo. HEX is very compact, so it can be mounted on a rack shelf or pedalboard. With the optional rack mount bracket, you can fit 2 HEX units in a single rack space.

  • Page 5: Rear Panel

    Rear Panel 3. Loop 1 IN. Input to loop 1. Loop 1 is isolated. 4. Loop 1 S. Send of loop 1. Connect to effect input. 5. Loop 1 R. Return of loop 1. Connect from effect output. 6. Loop 1 OUT. Output from loop 1. 7.

  • Page 6: Connections

    If you are using a Voodoo Lab foot controller, such as Ground Control Pro or Commander, it can be phantom powered from HEX. Phantom power is provided over pins 1 and 3 of HEX’s MIDI IN. Make sure to use a MIDI cable with all 5 pins wired. These are often labeled “5-pin active.”...

  • Page 7: Operation

    OPERATION Overview Use HEX front panel buttons to toggle each loop on or off. The buttons glow red when the effect is engaged, otherwise it is in bypass. You need a MIDI controller to recall preset combinations of effects. The following sections explain how to control HEX with various controllers.

  • Page 8: Use With Other Midi Controllers

    This will send the PC message to HEX. 2) Set the HEX loops to the desired combination. 3) Press HEX buttons #1 and #6 at the same time. The LEDs will blink to confirm that you saved the preset. Now whenever HEX receives this PC message, it will recall your loop settings.

  • Page 9: Setup

    The default MIDI channel is 1. NOTE: When HEX is being controlled by a Voodoo Lab Ground Control Pro or Commander the MIDI channel setting is ignored. 1) Apply power while holding down button #2. The LEDs will flash until you release the button.
  • Page 10 Select Control Change Numbers Each MIDI Control Change (CC) message includes a controller number, which specifies which HEX loop to turn on or off. You can select from four different groups of CC numbers. The default group is CC numbers 80-85, which means that 80 controls loop #1, 81 controls loop #2, 82 controls loop #3, and 83 controls loop #4, 84 controls loop #5, and 85 controls loop #6.

  • Page 11: Quiet Switching

    Even so, the relays can still produce a small click in your audio path, especially when using very high gain. To eliminate this click, HEX will disable the main output from loop 6 for a few milliseconds while the loops are switching.

  • Page 12: Warranty

    WARRANTY North America Only Voodoo Lab warrants this product against any defects that are due to faulty material or workmanship for a period of five years from the date of original retail purchase. This warranty does not include damage to the product resulting from accident or misuse.
