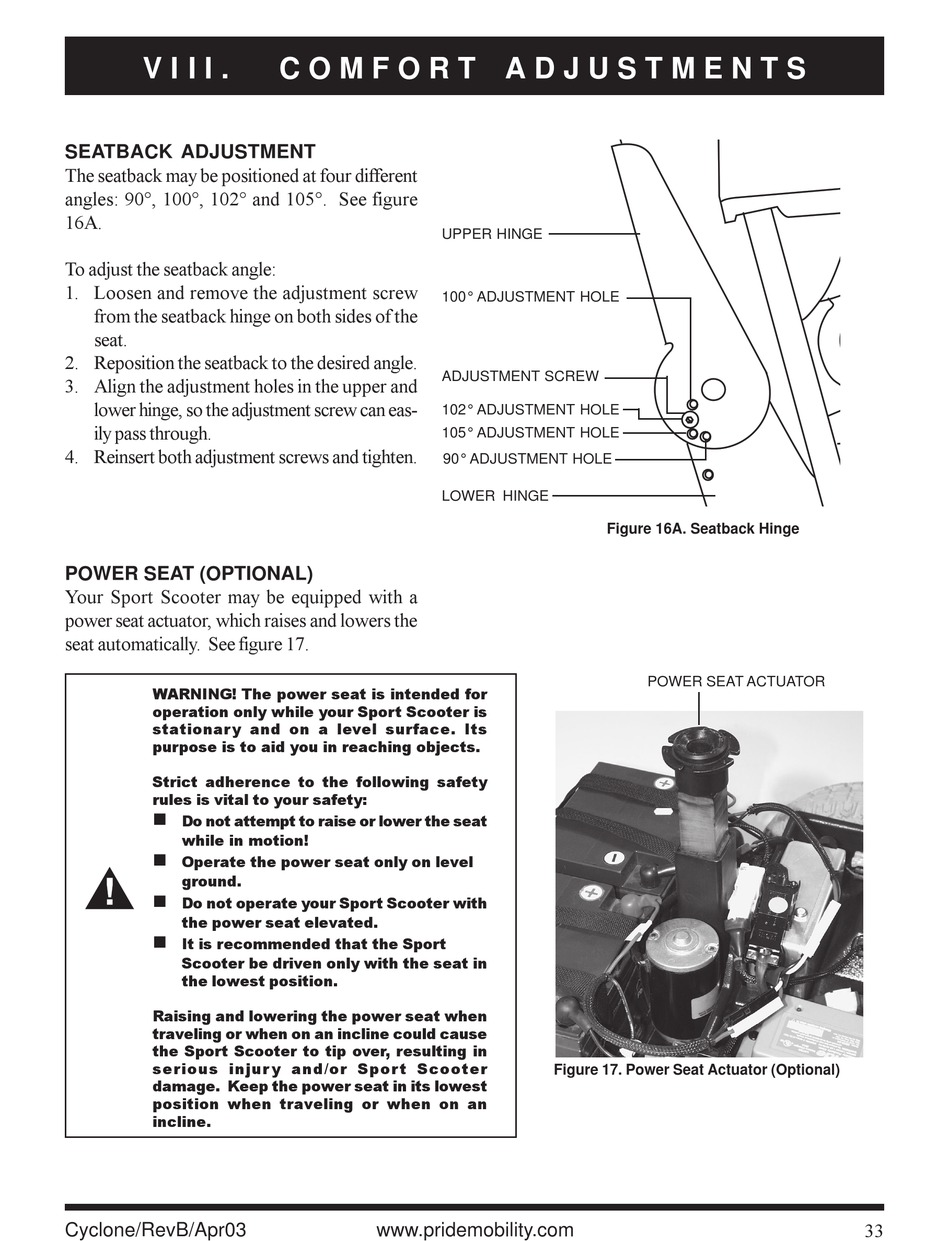

Pride Cyclone Owner's Manual page 33

V I I I .
SEATBACK ADJUSTMENT
The seatback may be positioned at four different
angles: 90°, 100°, 102° and 105°. See figure
16A.
To adjust the seatback angle:
1. Loosen and remove the adjustment screw
from the seatback hinge on both sides of the
seat.
2. Reposition the seatback to the desired angle.
3. Align the adjustment holes in the upper and
lower hinge, so the adjustment screw can eas-
ily pass through.
4. Reinsert both adjustment screws and tighten.
POWER SEAT (OPTIONAL)
Your Sport Scooter may be equipped with a
power seat actuator, which raises and lowers the
seat automatically. See figure 17.
WARNING! The power seat is intended for
operation only while your Sport Scooter is
stationar y and on a level surface. Its
purpose is to aid you in reaching objects.
Strict adherence to the following safety
rules is vital to your safety:
n
Do not attempt to raise or lower the seat
while in motion!
n
Operate the power seat only on level
ground.
n
Do not operate your Sport Scooter with
the power seat elevated.
n
It is recommended that the Sport
Scooter be driven only with the seat in
the lowest position.
Raising and lowering the power seat when
traveling or when on an incline could cause
the Sport Scooter to tip over, resulting in
serious injur y and/or Spor t Scooter
damage. Keep the power seat in its lowest
position when traveling or when on an
incline.
Cyclone/RevB/Apr03
C O M F O R T A D J U S T M E N T S
UPPER HINGE
100° ADJUSTMENT HOLE
ADJUSTMENT SCREW
102° ADJUSTMENT HOLE
105° ADJUSTMENT HOLE
90° ADJUSTMENT HOLE
LOWER HINGE
www.pridemobility.com
Figure 16A. Seatback Hinge
POWER SEAT ACTUATOR
Figure 17. Power Seat Actuator (Optional)
