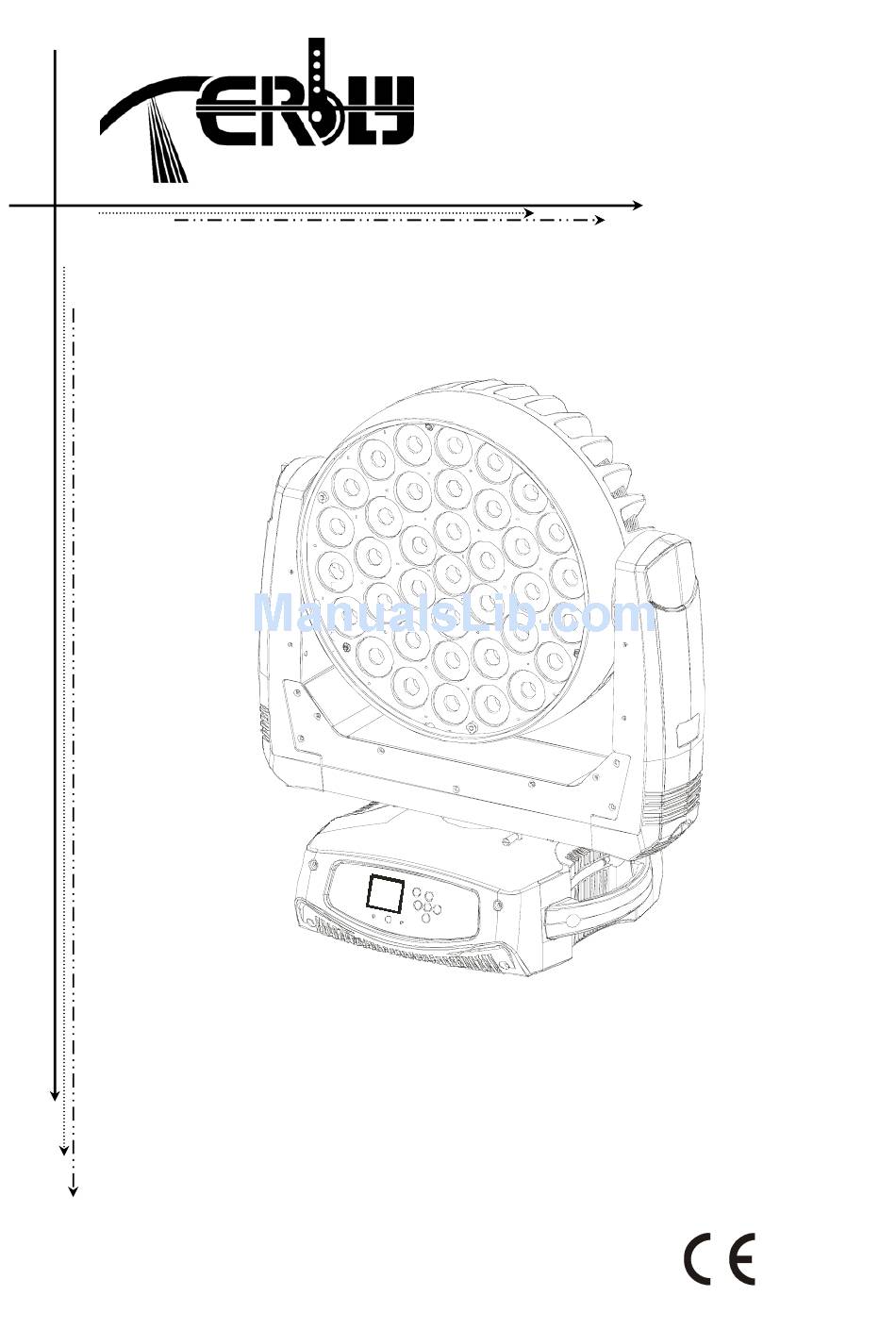

Page 1
LED MOVING HEAD USER MANUAL OK370Z-R KEEP THIS MANUAL FOR FUTURE NEEDS...
Page 2
Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
·Wireless receiver pre-installed: No time-consuming on signal cable connection and trouble shooting on defective cables, no signal declination from cable connections ·Zoom: linear zoom · Software-upload by optional accessory via DMX line Fixture Overview 1: Lens 2: Display 3: Antenna –...
3. SAFETY INSTRUCTIONS 3.1) Important safety warns This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep away from children and non-professionals. 3.2) GENERAL GUIDELINES This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the device was designed for indoor use only.
Page 6
The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting under or above the temperature. The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket. b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.
Layout Drawings: Mounting points Be sure this fixture is kept at least 1m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.
Address 1 Address 19 Address 37 6. DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.
If you set a different address, each unit will start to “listen” to the channel number you have set, based on the quantity of control channels of the unit. That means changing the settings of one channel will affect only the selected fixture. In the case of the led move head, which is a 18 channel fixture, you should set the starting address of the first unit to 1, the second unit to 19(18 + 1), the third unit to 37 (18+ 19), and so 8.
3) Use the DMX 512 to control the fixture 5.Remove the receivers from transmitter (T1) and to log in to another transmitter (T2) Case 1: Remove a receiver: a) On the control board of the fixture, enter menu to activated the function of REST; b) The LED for wireless on the fixture should turn to Solid red;...
Page 12
Set Dmx Address A001~AXXX DMX address setting Dmx Value ALL…… DMX value display Slave Mode Slave1,Slave2,Slave3 Slave setting Auto Program Master / Alone Auto program Sound Control Master / Alone Music control Current Time XXXX(Hours) Power on running time Total Run TIme XXXX(Hours) Fixture running time Time Information.
Calibrate Password Password “050” Color wheel=XXX Calbrate and adjust the Calibration effects to standard/right position Standard Mode Basic Mode Extended Mode User’s mode to change User Mode User Mode A channel numbers User Mode B User Mode C Edit User ModeA Max Channel = XX Edit User ModeB PAN = CH01...
9.1.3 Slave Mode With this function, you can define the device as slave. 1. Access the main menu. 2. Tap the <Up/Down>button until“Slave Mode”is displayed. 3. Press ENTER, the display will show“Slave Mode”. 4. Tap the <Up/Down>button,the display will show “Slave1”, ”Slave2”, ”Slave3”. 5.
Page 15
“Information”is displayed. Press ENTER, the display will show “Information”. Tap the <Up/Down>button until the display will show “Time Information” . Press ENTER, the display will show “Time Information”. 2. Press <Up/Down>, the display will show “Total Run Time”. 3. Press< ENTER>, the display will show“Total Run Time”. 4.
9.2.2 Temperature Info Head Temp. With this function you can display the temperature on the display board of the base (near CMY-filter) in Celsius. 1. Tap <MODE/ESC>button,access the main menu,Tap the <Up/Down>button until “Information”is displayed. Press ENTER, the display will show “Information”. Tap the <Up/Down>button until “...
Page 17
4. The display show “Hold” ,Press <Up/Down>, the display will show “Close Shutter”, “Auto Program”, “Music Control”. 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Pan Reverse With this function you can reverse the Pan-movement. 1.
Page 18
Movement Speed With this function, you can select scan mode from 1 to 4. 1. Tap <MODE/ESC>button,access the main menu,Tap the <Up/Down>button until “Personality” is displayed. Press ENTER, the display will show “Personality” . Tap the <Up/Down>button until the display will show “Status settings”. Press ENTER, the display will show “Status settings”.
remote control of devices connected to the DMX-bus. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol. Manual settings like adjusting the DMX starting address are no longer needed. This is especially useful when the device is installed in a remote area. RDM ready and conventional DMX devices can be operated in one DMX line.
display will show “Display Setting”. 2.Press <Up/Down>, the display will show“Key Lock”. 3.Press< ENTER>, the display will show“Key Lock”. 4.The display show “OFF”,Press <Up/Down>, the display will show “ON”. 5.Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Displ Flash With this function you can the entire display to be flipped by 180˚...
9.3.8 Reset Default With this function, you can select restore factory set for ON or OFF, the default is OFF. 1.Tap <MODE/ESC>button,access the main menu,Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. 2.Press <Up/Down>, the display will show“Reset Default”. 3.Press<...
2.Press <Up/Down>, the display will show “Calibration”. 3.Press< ENTER>, the display will show “Calibration”. 4.The display show “Password=XXXX”. 5.Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.6 Users mode set In this menu, user can select different channels list by different sequence: For example, after the user enter this manual, if select Auto Program = CH 22, means in this User’s mode, the “Dimmer”...
Page 23
Excursion: A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop. The Slave unit receives data from the Master unit according to the group which the Slave unit was assigned to.
Page 24
• Press the Enter button to confirm. • Turn the encoder to select the desired program. With this function you can edit specific scenes into a specific program. • Press the Enter button to confirm. • Press the MODE/ESC button in order to return to the main menu. 5.
10. . INSTRUCTIONS ON USE: DMX channel´s functions and their values (160 DMX channels): Mode/Channel Value Function PAN Movement 8bit : 0-255 Pan Movement TILT Movement 8bit : 0-255 Tilt Movement Speed Pan/Tilt movement: 0-225 max to min speed 226-235 blackout by movement 236-255 no function...
Page 26
0-31 Led trun off 32-63 Led turn on 64-95 Strobe effect slow to fast 96-127 Led turn on 128-159 Pulse-effect in sequences 160-191 Led turn on 192-223 Random strobe effect slow to fast 224-255 Led turn on Dimmer intensity: 0-255 Intensity 0 to 100% Chase Effect : 1--14...
0-255 Fine control for Zoom adjustment Lamp on/off, reset, internal programs: 0-79 Normal 80-84 All motor reset 85-87 Scan motor reset 88-90 no function 91-93 Store white balance enabled 94-96 no function 97-99 Others motor reset 100-119 Internal program 1 (secne1~8 of EEPROM) 120-139 Internal program 2 (secne9~16 of EEPROM) 140-159...
12. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
