LED MOVING HEAD
USER MANUAL
BPAR5QB-R
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPAR5QB-R and is the answer not in the manual?

Questions and answers

Related Manuals for Terbly BPAR5QB-R

Summary of Contents for Terbly BPAR5QB-R

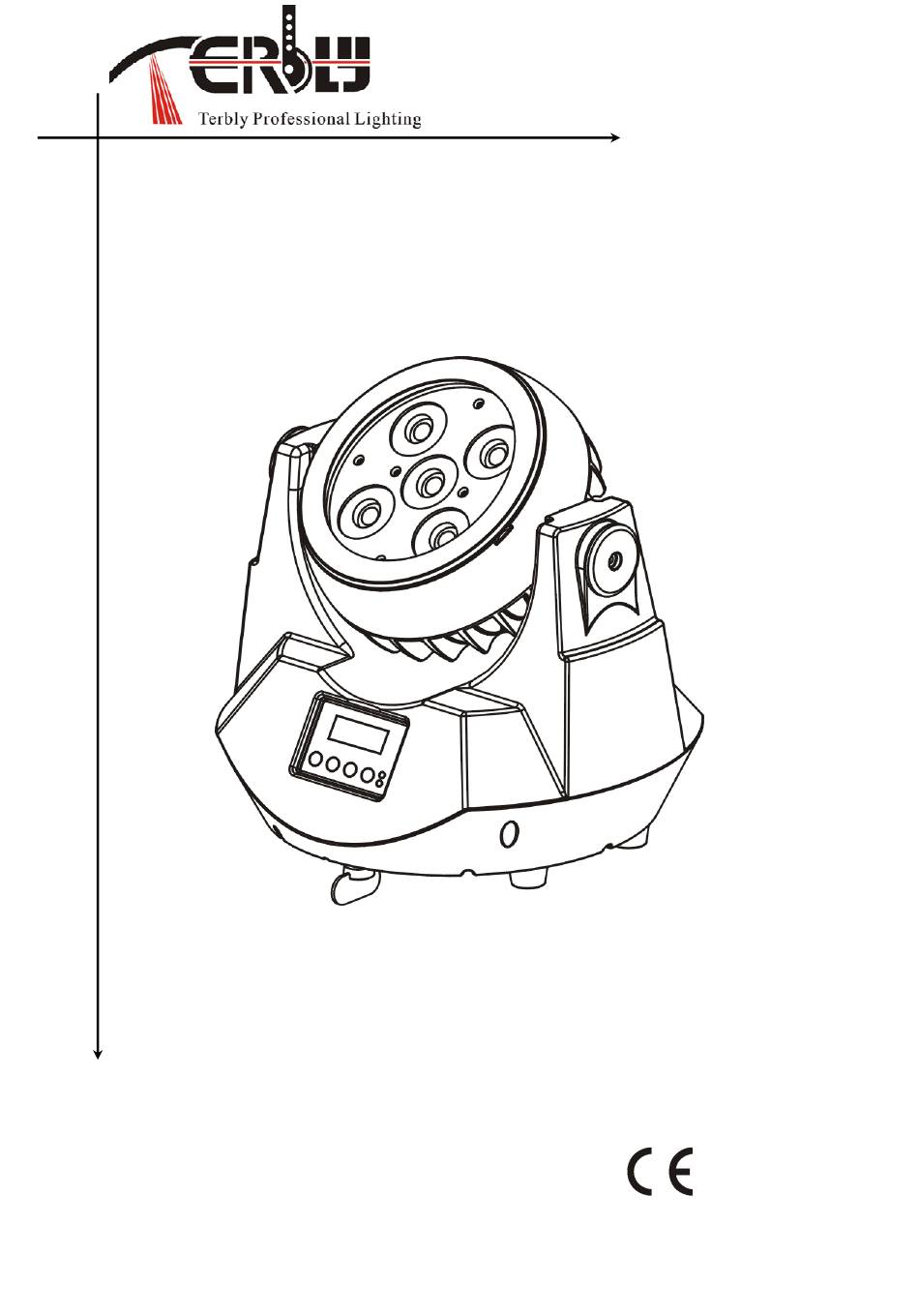

  • Page 1 LED MOVING HEAD USER MANUAL BPAR5QB-R KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    Thank you for purchasing a TERBLY product. You have acquired a powerful and versatile fixture. We are confident that you will be satisfied with our excellent products and service. For your own safety, please read this user manual carefully before installing and operating the device.

  • Page 3: Safety Instructions

     Make sure the power cord is never crushed or damaged by sharp edges. Should the power cord suffer If this should be the case, replacement of the cable must be done by an BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 4  When powered on for the first time, some smoke or smell may occur. This is caused by coating on metal parts when heated and is normal. If you are concerned, please contact your distributor or Terbly.  Do not focus the beam onto flammable surfaces. The minimum distance between the exiting lens of the device and the illuminated surface must be greater than 0.1 meter.

  • Page 5: Features

    Reset DMX address, remote lamp switch, reset can all be done by the controller  Running time of fixture on display for reference OTHER SPEC  Wireless receiver pre-installed  Optional six in one flightcase with charger base WHIGHT Net weight: 6.8 kg BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 6 PHOTOMETRIC DATA IMAGE BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 7 DMX CHANNEL DATA IMAGE BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 8: Fixture Overview

    Lens 2） Display 3） MODE/ESC -button 4） Up -button 5） Down –button 6） ENTER–button 7） Charge indicator 8） Wireless indicator 9） Power supply 10） Power in 11） SIGNAL in 12） SIGNAL out 13） Antenna 14） Handle BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 9: Dimensional Drawings

    4. DIMENSIONAL DRAWINGS BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 10: Installation Instructions

    Improper installation/ rigging can result in serious bodily injury.  Before rigging make sure that the installation area can hold a minimum point load of 10 times the device’s weight. BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 11  Pull the safety cable through the holes on the bottom of the base and over the trussing system or another suitable rigging point. Insert the end into the carabiner and tighten the safety screw. Important: This step is very important to ensure safe rigging of the fixture. BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 12 If you lack these qualifications, do not attempt the rigging of this device yourself. Improper installation/ rigging can result in serious bodily injury. BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 13 When the LED keep flashing, it indicates that battery power is low, at this point, pls recharge in time. 5.5. Charging Base Overview 1: Power indicator light 2: Status indicator light a) RED indicates status of charging b) GREEN indicates status of charging being completed. BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 14: Dmx-512 Control Connection

    XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged into the output (female) XLR socket of the last fixture in the chain. Please see illustrations below. BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 15: Device Dmx Start Address Selection

    In this status, wireless system is not activated, so the fixture can not log in the transmitter. REST: (reset WDMX memory); Can remove the fixture from the connection with the transmitter, the fixture become free and BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 16: Display

    Mode/Esc. [DOWN] screen will flash when pressing this key in normal mode, the address value will idecreasing. Keep pressing this key, the address value will decrease rapidly. it will exit from BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 17 Fine adjustment of the ManCntrl ManCntrl Blue…Whit…Stro… lamp Dimm…Macr…Temp… Temp=XXX User’s mode to change Mode Set UserMode 11CH channel numbers 12CH Standard Standard mode Stage Stage mode Dimming DimModes TV mode Architectural Architectural mode Theatre Theatre mode BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 18 “Edit scenes”. With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. 1. Access the main menu. 2. Tap the <Up/Down> button until “AutoProg” is displayed. 3. Press ENTER, the display will show “AutoProg”. BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 19 1. Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Info” is displayed. Press ENTER, the display will show “Info”. Tap the <Up/Down> button until the display will show “Time Info”. Press ENTER, the display will show BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 20 2. Press <Up/Down>, the display will show “Add DMX”. 3. Press< ENTER>, the display will show “Addr DMX”. 4. The display show “ON”, Press <Up/Down>, the display will show “OFF”. 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 21 Tap the <Up/Down>button until“Man Hold”is displayed. Press ENTER, the display will show “Man Hold”. The display show “ON”,Press <Up/Down>, the display will show “OFF”. Press ENTER to confirm or press <MODE/ESC> to return to the main menu. BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 22 Press <Up/Down>, the display will show “UserMode”. Press< ENTER>, the display will show “UserMode”. The display show“4”,Press <Up/Down>, the display will show “5”, “11” , “12”. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 23 Program 2, Part 2 uses Program 4, Part 3 uses Program 6, Assume: Program 2 includes scene of 10, 11, 12, 13; Program 4 includes scene of 8, 9, 10; Program 6 includes scene of 12, 13, 14, 15; Then it will run as below. Example： BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 24 BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 25: Dmx Protocol

    72-79 Rainbow colors 80-87 Rainbow colors 88-95 Rainbow colors 96-103 Rainbow colors 104-111 Rainbow colors 112-119 Rainbow colors 120-127 Rainbow colors 128-135 Rainbow colors 136-143 Rainbow colors 144-151 Rainbow colors 152-159 Rainbow colors 160-167 Rainbow colors BPAR5QB-R User Manual XM1164-V1.0-NR...
  • Page 26 Strobe effect slow to fast 96-127 Led turn on 128-159 Pulse-effect in sequences 160-191 Led turn on 192-223 Random strobe effect slow to fast 224-255 Led turn on Dimmer intensity, program speed 0-255 Intensity 0 to 100% BPAR5QB-R User Manual XM1164-V1.0-NR...

  • Page 27: Cleaning And Maintenance

    Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine parts from your local dealer. 13. SERVICE For all service needs please contact your local authorized dealer or Terbly directly. Our contact details are: Email: QA@terbly.com...
