OVERVIEW OF CONTROLS
Rear Panel : AV Inputs (For

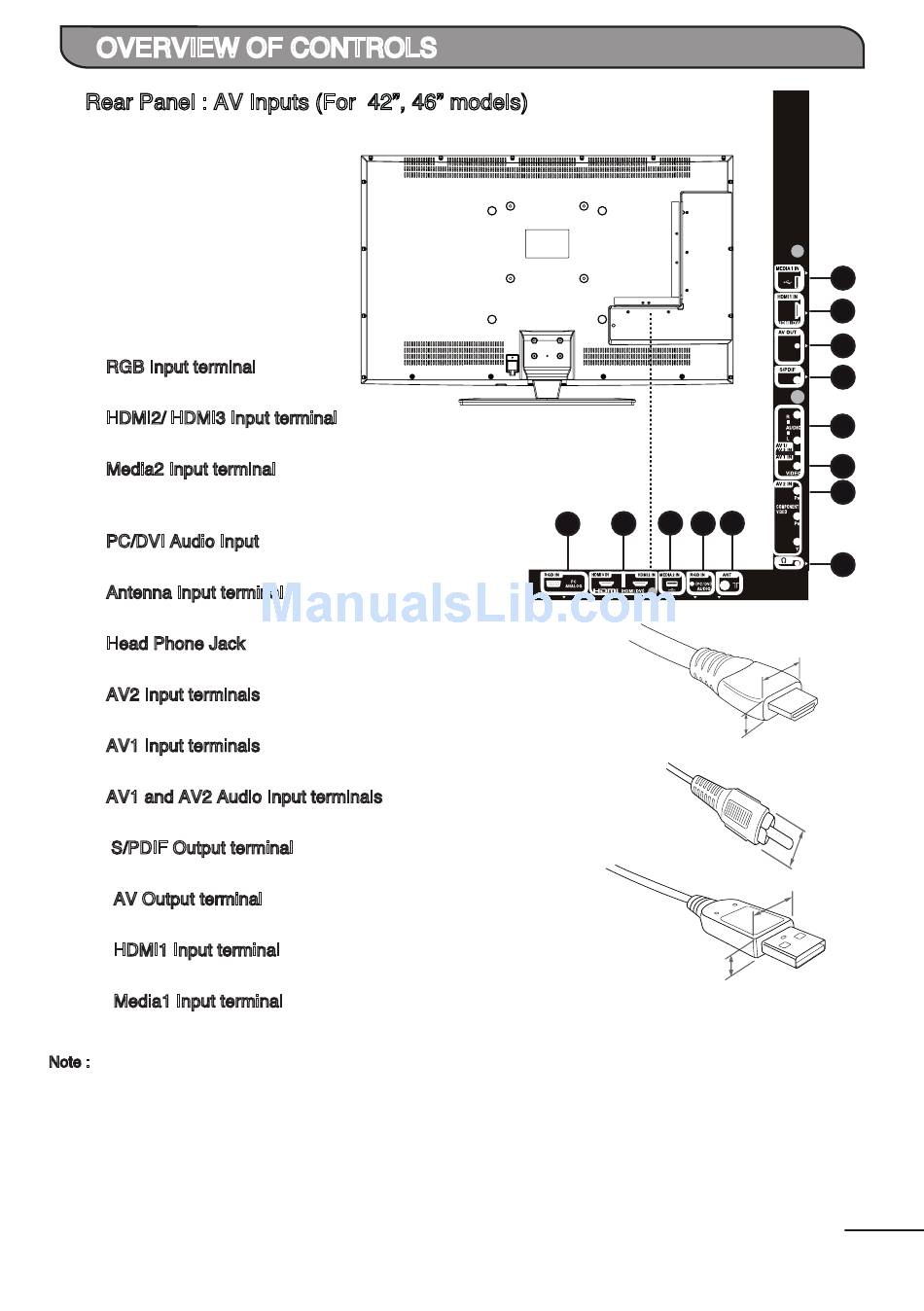

1. RGB Input terminal
Connect to PC.
2. HDMI2/ HDMI3 Input terminal
Connect to equipment with HDMI output.
3. Media2 Input terminal
Connect USB storage devices to playback video,
music, photo and text files.
4. PC/DVI Audio Input
Connect to the output terminal of the PC/DVI device.
5. Antenna Input terminal
Connect to equipment with antenna output or wall antenna socket.
6. Head Phone Jack
Connect to head phone
7. AV2 Input terminals
Connect to equipment with component video output.
8. AV1 Input terminals
Connect to equipment with composite video output.
9. AV1 and AV2 Audio Input terminals
Connect to equipment with audio output.
10. S/PDIF Output terminal
Connect to equipment with digital audio input.
11. AV Output terminal
Connect to equipment with composite video input.
12. HDMI1 Input terminal
Connect to equipment with HDMI output.
13. Media1 Input terminal
Connect USB storage devices to playback video, music, photo
and text files.
Note :
- Please use the HDMI cable that support at least HDMI version 1.3. If your HDMI cable does not
support HDMI version 1.3, flickering or no screen display may result.
- To prevent any damage, do not connect to the mains outlet until all connections are completed.
- HDMI Input : Should not exceed 10(H) x 20(W)mm. (Refer to illustration on page 10.)
- AV Input : Should not exceed by 13(D)mm. (Refer to illustration on page 10.)
- Media Input : Should not exceed by 7(H) x 18(W)mm. (Refer to illustration on page 19.)
- Headphone Warning : Loud music can damage your hearing irreversibly, therefore do not set the
volume to a high level when listening through headphones, particularly for extended listening periods.
42", 46" models)
3
5
1
2
4
H
AV Input
H
Media Input
13
12
11
10
9
8
7
6
W
HDMI Input
D
W
10
