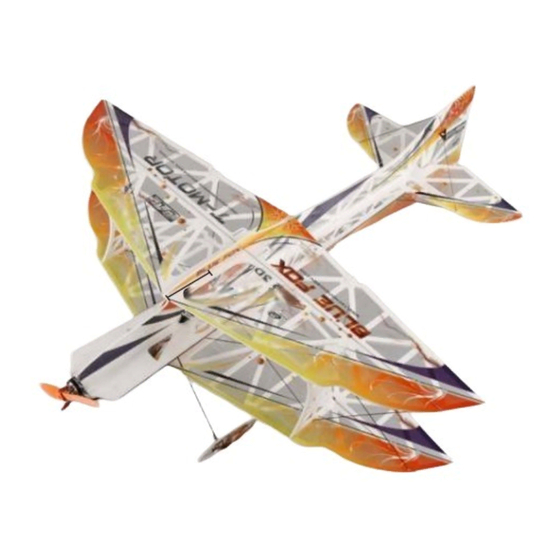

BLUEFOX 2012 3D
BLUEFOX 2012 3D
-HCF INSTRUCTIONS
-HCF INSTRUCTIONS
Fuselage Length: 850mm ( 33.5in. )
Wingspan:
Flying Weight:
Motor :
ESC :
Propeller:
Servos:
Radio:
4/more channel
Battery: 7.4v 2S 250-450mAh Li-po 25C
MOTOR: AS2204 KV 1700 outrunner brushless
motor
SERVO:DT55
0.07 sec/60°at 6.0V
0.07 sec/60°at 6.0V
1.5kg-cm
20.8X11X20mm
Weight:6.5 g
ESC: 6Amp 2-3s Lipo BEC 1A/5V
BATTERY: 350mAh 7.4v Lipo 20C
780mm ( 30.7in. )
115-140g (with battery)
AS2204 KV1700
6-10Amp
8043SF prop or 8040 HD prop
4-6g micro servo *3pcs
at 6.0V
Advertisement
Related Manuals for Techone BLUEFOX 2012 3D-HCF
Summary of Contents for Techone BLUEFOX 2012 3D-HCF

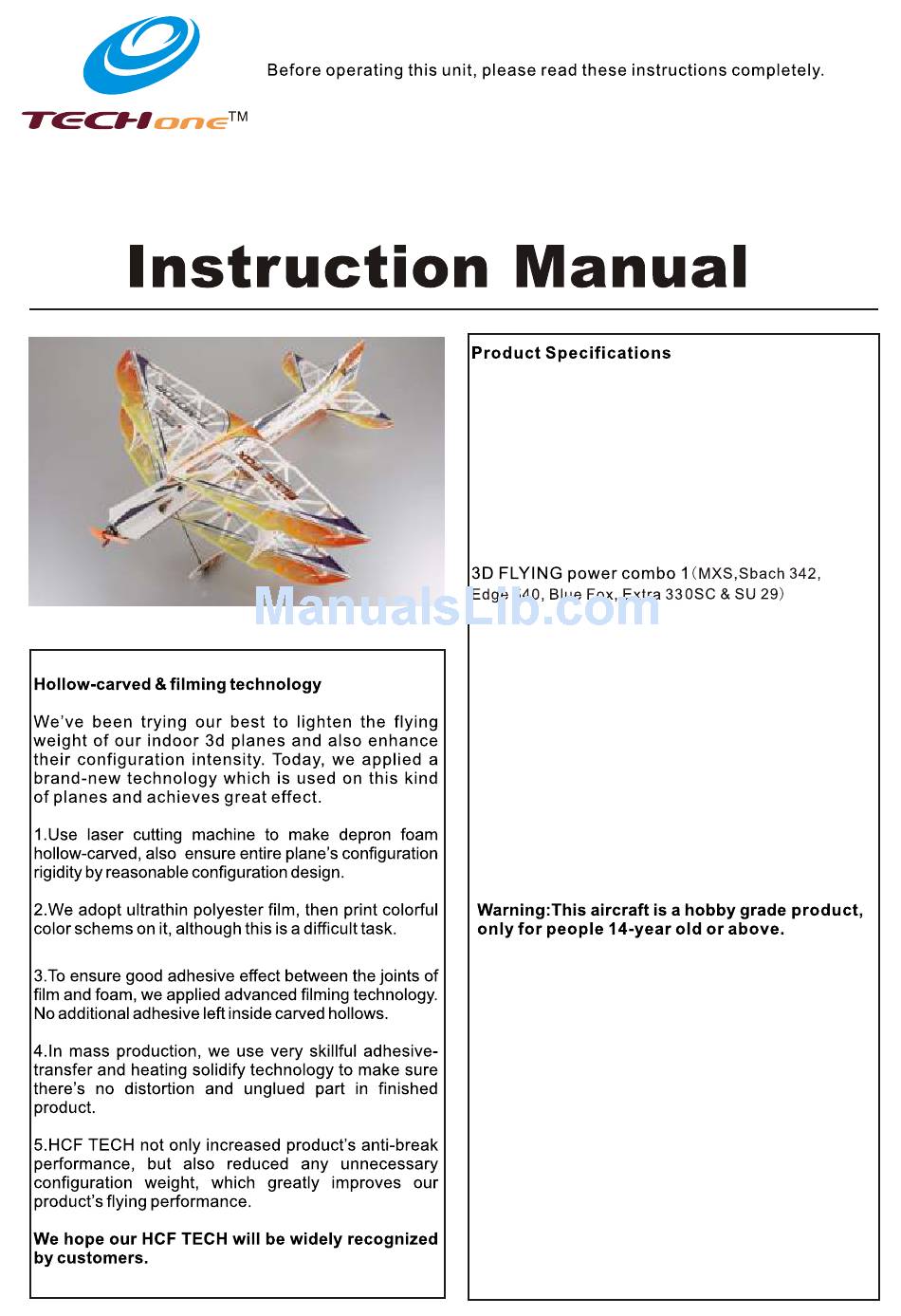

- Page 1 -HCF INSTRUCTIONS -HCF INSTRUCTIONS BLUEFOX 2012 3D BLUEFOX 2012 3D Fuselage Length: 850mm ( 33.5in. ) Wingspan: 780mm ( 30.7in. ) Flying Weight: 115-140g (with battery) Motor : AS2204 KV1700 ESC : 6-10Amp Propeller: 8043SF prop or 8040 HD prop Servos: 4-6g micro servo *3pcs Radio:...
- Page 2 65-75 65-75...
- Page 3 2pcs...
- Page 6 3.Insert lower vertical fuselage into the slot of horizontal fuselage, then use CA to fix. Notice: make sure both fuselages are perpendicul ar to each other. 4.Glue 4pcs reinforcing doublers onto pre-reserved holes on back fuselage, refer to above pictures. 2.Fix left and right ailerons, same as last step.
- Page 7 163mm 5.Install other carbon rods, and make sure the vertical fuselage is perpendicular to wing.
- Page 8 6.Fix landing gear reinforcements to 8.Insert upper vertical fuselage into the slot of corresponding hole with glue. horizontal fuselage, then use CA to fix. Notice: make sure both fuselages are perpendicular to each other. 9.Install top wing. 7.Fix left and right wing supporting foam with glue.
- Page 9 11.Install rudder on vertical fuselage. 13.Install wheel covers. 12.Install landing gear sets.
- Page 10 14.Install carbon fiber bracings between two wings. 16.Install motor mount on nose, then use fiber tape to reinforce. 15.Install 2pcs carbon fiber rods between upper stabilizer and rear vertical fuselage. Make sure stabilizer is perpendicular to vertical fuselage.
- Page 11 20.Install motor on motor mount with 4pcs self tapping screws. 17.Install 2pcs aileron control horns on back wings. 18.Install elevator control horns. 19.Install rudder control horns. 21.Fix propeller with o ring.
- Page 12 22.Install ailerons connector with glue, then use carbon fiber rods to connect top and bottom ailerons. 23.Place aileron servo into pre-cut servo hole 135mm on fuselage and fix with glue. 95mm...
- Page 13 24.Install aileron push rods. 27.Across thread through 3 holes on pull-pull thread adjustor. 25.Install rudder servo arm extension. 28.Then pass through steel tube. 26.Drop some CA on the ends of thread to make 29.Then thread through the hole on rudder servo them a little harder, so they can easily thread arm.
- Page 14 30.Pass another end of thread through rudder control horn, and stave steel tube with plier, then fix with CA. The same operation as last step. 31.Install another elevator pull-pull thread. Same operation as last step. Notice: make sure the thread is taut. 32.Install elevator pull-pull thread.
- Page 15 34.Fix receiver and battery with velcro. 35.Pass all servo wires through fuselage and 33.Fix ESC with nylon velcro on lower vertical place them close to receiver. fuselage. 36.Connect servo and ESC to receiver, then power on and do equipment test.
- Page 16 37.A perfect Blue Fox 2012 3D is done after your careful assembly. While assembly, the flying weight is really critical to the flight performance and will be affected by adding weight, so you should reduce any unnecessary weight while assembly. Then you’ll get the best flying performance.
