3
Scotch-Weld
Hot Melt Applicator TC
™
Applicateur thermofusible 3M
Scotch-Weld
TC
™
™
Aplicador por fusión al calor de Scotch-Weld
TC de 3M
™
™

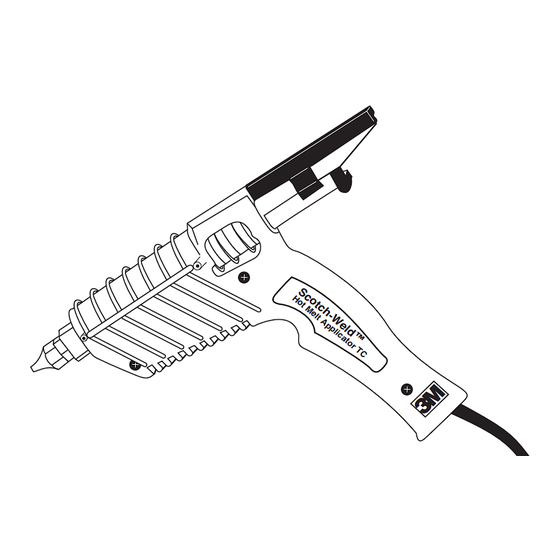

OWNER'S MANUAL
MANUEL DE L'UTILISATEUR
MANUAL DEL PROPIETARIO
For use with 3M™ Scotch-Weld™ Hot Melt Adhesives
Utilisez avec les adhésifs thermo-fusibles 3M™ Scotch-Weld™
Para ser usado con adhesivos de aplicación en caliente Scotch-
Weld™ de 3M™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 3M Scotch-Weld TC
Summary of Contents for 3M Scotch-Weld TC

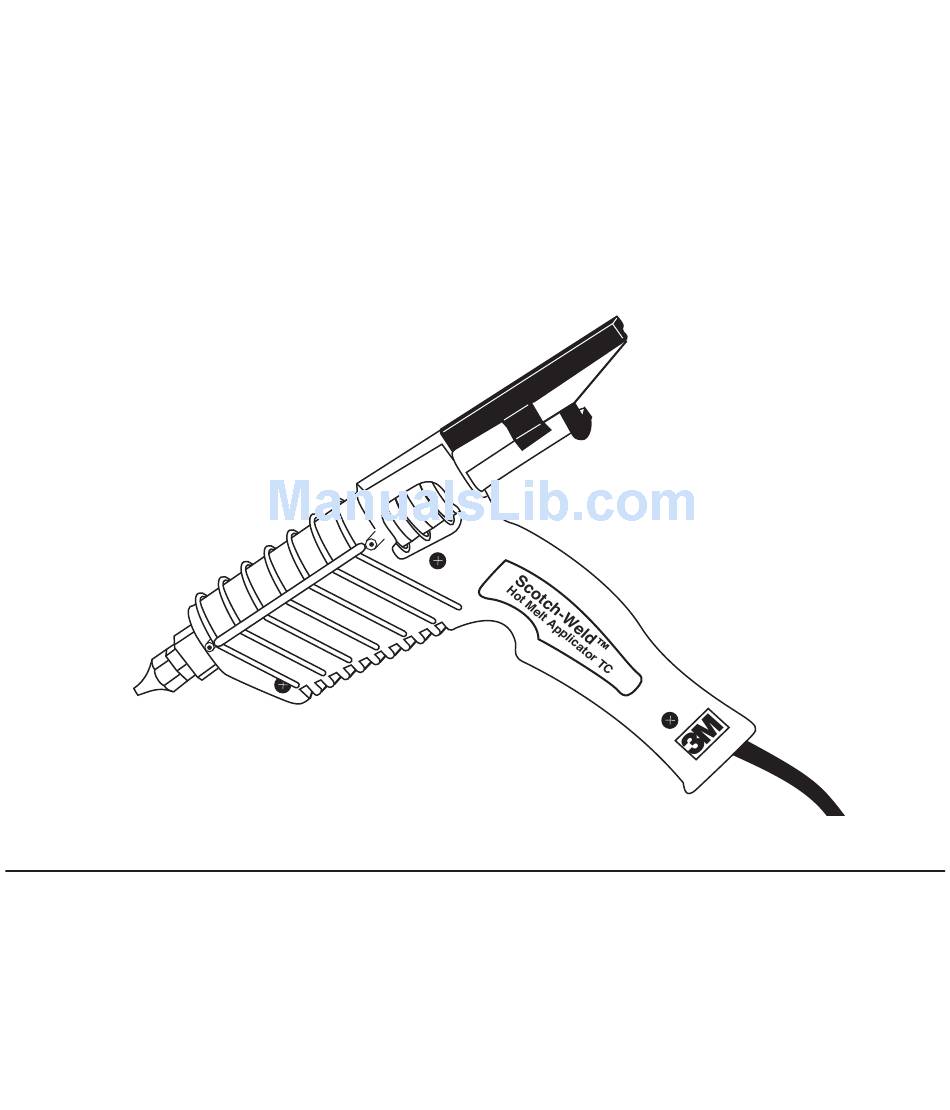

- Page 1 TC de 3M ™ ™ OWNER’S MANUAL MANUEL DE L’UTILISATEUR MANUAL DEL PROPIETARIO For use with 3M™ Scotch-Weld™ Hot Melt Adhesives Utilisez avec les adhésifs thermo-fusibles 3M™ Scotch-Weld™ Para ser usado con adhesivos de aplicación en caliente Scotch- Weld™ de 3M™...
- Page 2 Read instructions thoroughly before operating or performing any maintenance on 3M™ Scotch-Weld™ Hot Melt Applicator TC. Lisez attentivement les instructions avant d'utiliser ou d'effectuer toute tâche de maintenance sur l'applicateur d'adhésif thermo- fusible TC 3M™ Scotch-Weld™. Lea detalladamente las instrucciones antes de empezar a...
- Page 3 Kit 9234 62-9234-9930-5 Kit 9237 62-9237-9930-8 Kit 9283 62-9283-9930-2 Kit 9238 62-9238-9930-6 Kit 9284 62-9284-9930-0...
- Page 4 CAUSE BACKMELT AND POSSIBLE INJURY. DO NOT contaminants. USE NEAR HIGHLY FLAMMABLE MATERIALS. Accessory Tips 1. Plug the 3M™ Scotch-Weld™ Hot Melt Applicator TC into a 120 VAC grounded receptacle. Allow 5 to 10 minutes for The 3M Scotch-Weld Hot Melt Applicator TC comes equipped heat-up.
-
Page 5: Troubleshooting
Troubleshooting Problem Probable Cause Correction 1. Low or no No heat Check to see that 120 VAC service is on. Thermal fuse in the adhesive flow thermostat may have blown. Use Repair Kit #9283. Shutdown procedure was not observed Allow the applicator to heat up for at least 30 minutes. Plugged tip If the applicator was left on overnight, the tip may be plugged. -
Page 6: Information Générale
AVERTISSEMENT: N’UTILISEZ QUE DES BÂTONS DE vous qu’elle est propre et exempte de matière étrangère. COLLE 3M™ SCOTCH WELD™ HOT MELT 2 po x 5/8 po. 2. Gardez la colle propre et exempte de contaminants LES AUTRES COLLES PEUVENT CAUSER UN BRÛLAGE aéroportés. -
Page 7: Dépannage
Trousse de réparation 9234 Trousse de jeu de soupape 3M no 62-9234-9930-5 a.Embout 0.093 po b. Groupe soupape 9237 Trousse de manchon 3M no 62-9237-9930-8 a. Manchon b. Bride en laiton (4) 9238 Trousse de distributeur 3M no 62-9238-9930-6 a. Distributeur b. - Page 8 Picos accesorios 1. Enchufe el aplicador por fusión al calor de Scotch-Weld™ El aplicador por fusión al calor de Scotch-Weld TC de 3M TC de 3M™ en un receptáculo con conexión a tierra a viene equipado con un pico estándar de .093”. Por picos 120 VAC (de las siglas en inglés para significar “Voltios de...
-
Page 9: Solución De Problemas
Juegos de partes de reparación 9234 Conjunto de juegos de válvula Artículo 3M número # 62-9234-9930-5 a. Pico de .093” b. Conjunto de la válvula 9237 Juego de manga Artículo 3M número # 62-9237-9930-8 a. Manga b. b. Brida de bronce (4) 9238 Juego de alimentador Artículo... - Page 10 Limited Warranty Your 3M Scotch-Weld Hot Melt Applicator TC is warranted by the 3M Company for a period of 12 months from date of use or purchase (whichever occurs first) against defects in material and workmanship. During this period repairs or replacements will be made free of charge at the option of the warrantor.
- Page 11 Contact: Jenny Young Creator: Susan Barker Phone: (651) 736-2971 Fax: (651) 733-5273 Address: 3M Building 223-6N-01 St. Paul, MN 55144-1000 Spec # 38-9019-0537-2 Structure: 34-7059-7987-9 Inks: Black Date: 4/24/06 1 Inch SCALE:...
