zapco Z600C2-SL SymbiLink User Manual

Balanced competition power amplifier
Hide thumbs

Advertisement

Table of Contents

SymbiLink™
System
Model Z600C2-SL
Balanced
Competition Power Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z600C2-SL SymbiLink and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for zapco Z600C2-SL SymbiLink

Summary of Contents for zapco Z600C2-SL SymbiLink

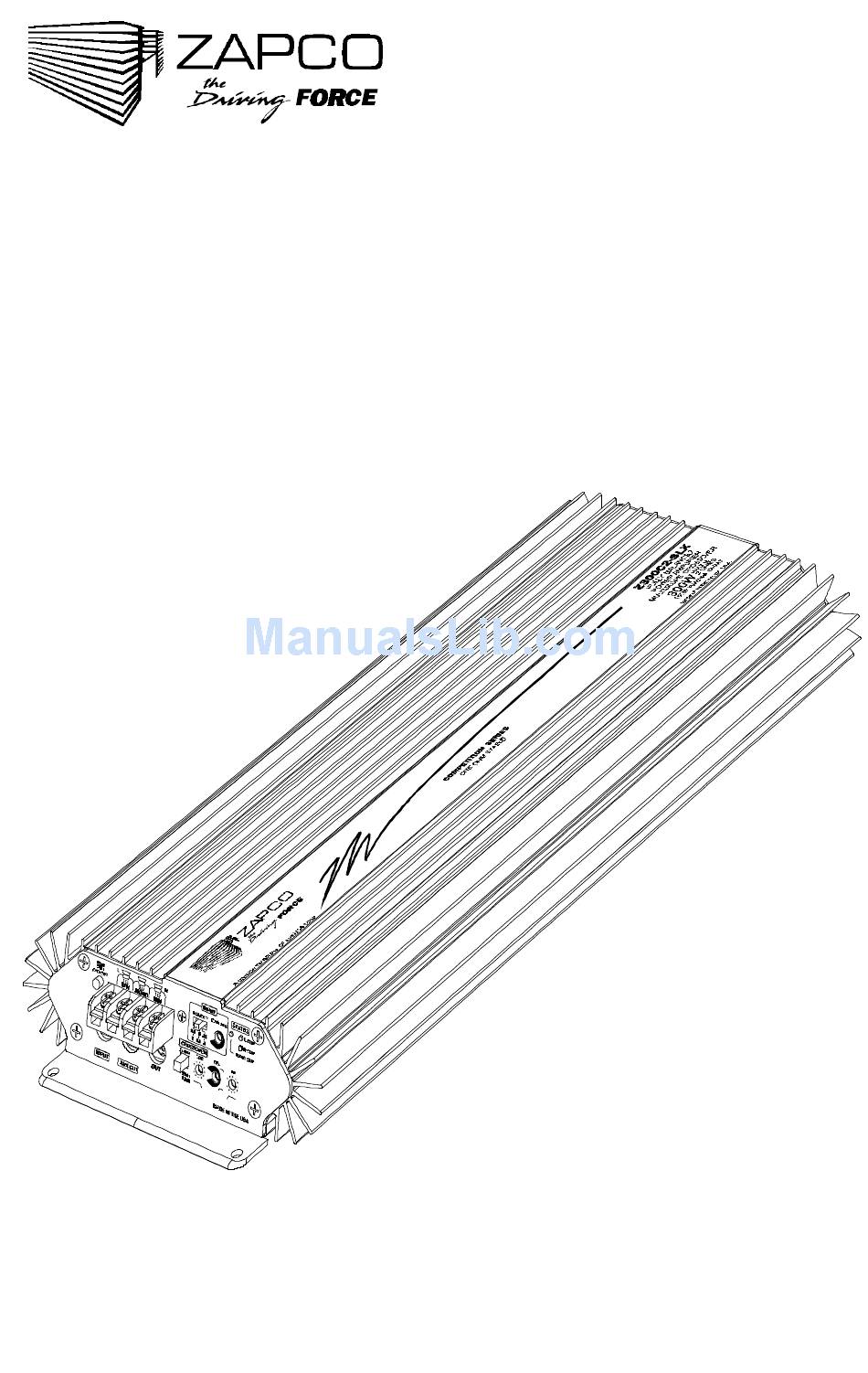

  • Page 1 SymbiLink™ System Model Z600C2-SL Balanced Competition Power Amplifier...

  • Page 2: Table Of Contents

    Contents Z600C2-SL KEY FEATURES POWER CONNECTIONS SIGNAL CONNECTIONS SPECIFICATIONS POWER VS DISTORTION INSTALLATION THE Z600C2-SL ALSO WORKS WITH THE SYMBILINK™ LINE DRIVER WHY USE THE BALANCED SYMBILINK™ SYSTEM? NON-LINEAR INDUCED DISTORTION CABLE AND CONNECTOR PINOUT OPTIONAL RSD REMOTE STATUS DISPLAY THE Z600C2-SL SUPPLIES POWER TO SIGNAL PROCESSORS, SUCH AS THE SP7-SL TECHNICAL ASSISTANCE...

  • Page 3: Z600C2-Sl Key Features

    • Stable to one ohm • Sixteen 25-ampere bipolar amplifier output transistors • Very high current output stage - • Quality ZAPCO construction / Made in Greater that 200 amps / channel the U.S.A. • Precision 1% resistors used • Three year warranty...

  • Page 4: Power Connections

    Power Connections Use # 8 gauge or heavier stranded wire for both power and ground connections. Although the amplifier is fused on the endplate, an additional 100 ampere fuse must be placed in line within 12” of the battery. Failure to install this additional fuse will cause smoke or fire if this wire is shorted to the chassis.

  • Page 5: Signal Connections

    Signal Connections Note: Keep the fan on the bottom plate clear from obstruction. When operating in bridged mode, the amplifier is driven by the left input.

  • Page 6: Specifications

    Specifications Power per channel - 2 channel mode < .01% 150 watts x 2 @ 4Ω, 20 - 20kHz < .02% 325 watts x 2 @ 2Ω < .05% 450 watts x 2 @ 1Ω Power - Bridged Mono < .02% 325 watts x 1 @ 4Ω...

  • Page 7: Power Vs Distortion

    To ensure proper operation and maximum performance of your amplifier, ZAPCO recommends that the installation be performed by a ZAPCO authorized dealer. If this service is unavailable to you, or you wish to do your own installation, the following guidelines must be followed.
  • Page 8 ZAPCO dealer. The safety of your equipment and your vehicle could depend on proper installation. If you do not have a local dealer, please contact ZAPCO directly at (209) 577-4268 between 9 am and 5 pm Pacific time, and...

  • Page 9: The Z600C2-Sl Also Works With The Symbilink™ Line Driver

    The Z600C2-SL also works with the SymbiLink™ Line Driver Up to 300' of cable may be used without audio degradation Balanced Differential SymbiLink Cable Do not connect power to the driver when used with any SymbiLink™ amplifier. Unbalanced RCA Inputs...

  • Page 10: Why Use The Balanced Symbilink™ System

    Why Use the Balanced SymbiLink™ System? RCA style unbalanced cables have the following disadvantages: Magnetic & electrostatic pickup. Noise and audio distortion can be induced into the cable because the cable shield is also the audio (-) connection. Unbalanced cables are typically driven into very high impedances, causing transient ringing.

  • Page 11: Non-Linear Induced Distortion

    NON-LINEAR INDUCED DISTORTIONS...

  • Page 12: Cable And Connector Pinout

    Cable and Connector Pinout Optional RSD Remote Status Display...

  • Page 13: The Z600C2-Sl Supplies Power To Signal Processors, Such As The Sp7-Sl

    The Z600C2-SL supplies power to signal processors, such as the SP7-SL SP7-SL Balanced 7-Band Eq...

  • Page 14: Technical Assistance

    Once we issue you a return authorization number, please write it in a highly visible area on the package. Zapco will not accept any packages that do not have a valid return authorization number clearly marked on the outside of the package.
  • Page 15 A.R.P.A. OF AMERICA CORP. 413 SOUTH RIVERSIDE DRIVE. SUITE D MODESTO, CA 95354 (209) 577-4268 FAX (209) 577-8548 Z600C2-SL REV. E 11/96...
