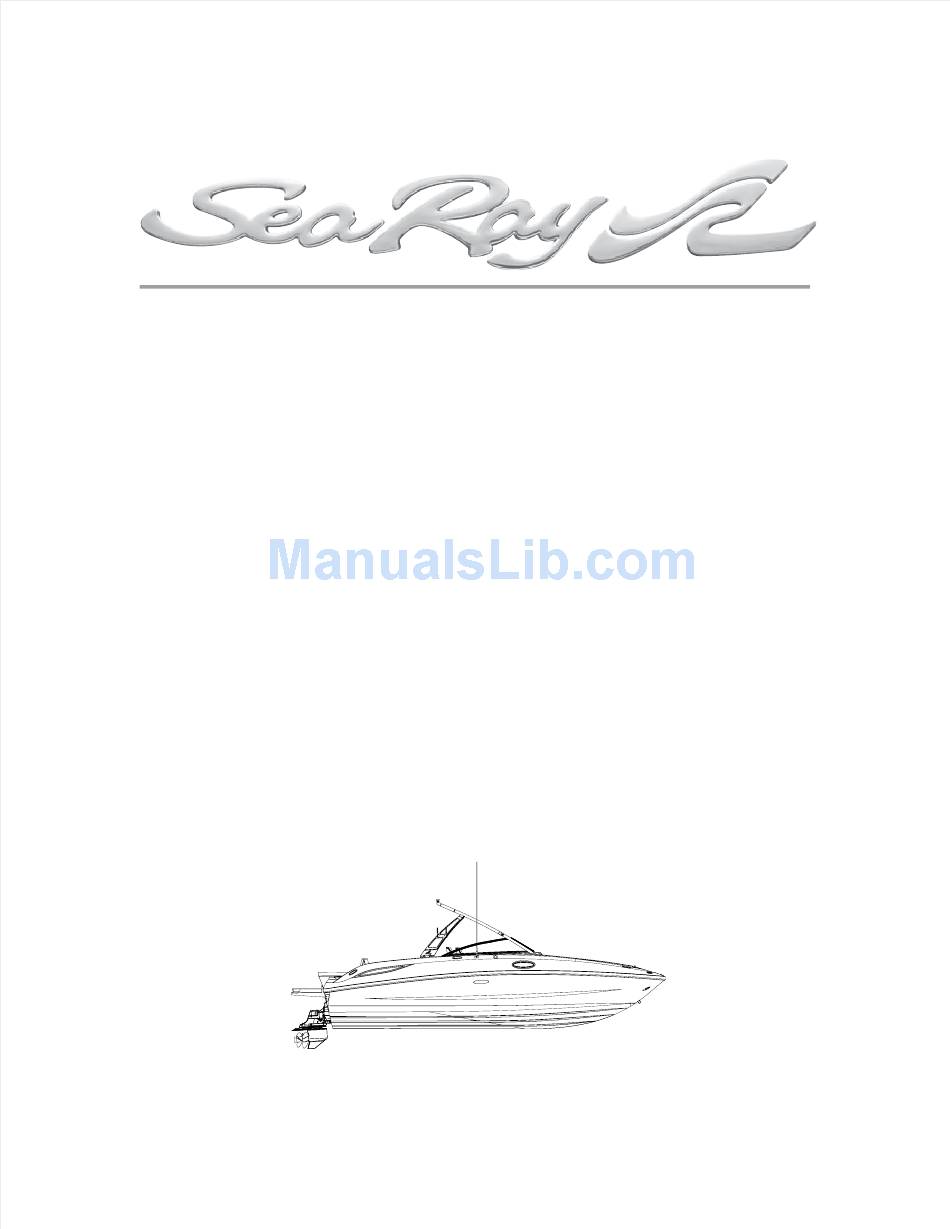

  • Page 1 Owner’s Manual 280 Sundeck ® Manual Part Number: MRP 2029335...
  • Page 3 Owner’s options please visit www.searay.com. There you Manual. will be able to view all Sea Ray manuals and any items that are not included in this manual. The Owner’s Information Packet contains the...
  • Page 4 Please visit www.searay.com for a complete library of all Sea Ray Owner’s and Accessory Manuals. Information in this publication is based upon the latest product specifications available at printing. Sea Ray ® Boats, Inc. reserves the right to make changes at any time, without notice, in the colors, equipment, specifications, materials and prices of all models, or to discontinue models.

  • Page 5: Table Of Contents

    12. Fire Extinguishing System ........12 13. Fuel System ............12 14. Water System (Option) ........12 15. Multi-Functional Aft Seat ........12 16. Entertainment System ......... 13 17. Canvas ..............13 18. Electrical Schematics........... 13 ndex Sea Ray Boats...

  • Page 7: I Ntroduction

    You must register this boat in the state where it will be used most frequently, many states require additional registration when an out-of-state boat is used within their boundaries. Contact state boating authorities or any marine dealer for registration requirements. Sea Ray Boats...

  • Page 8: Dealer Responsibilities

    These HULL are included with your Owner’s Manual Packet. IDENTIFICATION NUMBER The Sea Ray® Express Limited Warranty is on the warranty information sheet and in this manual. Please locate and read the individual warranties. Sea Ray Boats...

  • Page 9: Manufacturer's Certification

    Sea Ray dealer. To ® the United States Coast Guard who has authority to find a dealer in your area contact Sea Ray ® enforce these laws on boat manufacturers that sell the internet at www.searay.com (international products in the United States.
  • Page 10 The new owner can submit this request, free of charge, via the searay.com website or through a local authorized Sea Ray Dealer where processing fees may be applied. Sea Ray reserves the right to reject any warranty transfer request for a boat that has been damaged, neglected, or otherwise previously excluded from warranty..

  • Page 11: 280 S Undeck ® O Wners M Anual

    You can be seriously injured if you slip and fall. WARNING Wear slip resistant footwear secured to your feet and Rear facing transom seats MUST NOT be used while hold on to rails or boat structure. engine is running or boat is moving. 280 Sundeck ®...

  • Page 12: Safety Label Locations

    Get fresh air if anyone shows signs of carbon monoxide poisoning. See Owner's Manual for information regarding carbon monoxide poisoning. NW-204-05 280 SD THIS TAG INSTALLED WHEN BOAT IS ORDERED WITH CE INTERNATIONAL OPTION 280 Sundeck ®...
  • Page 13 TO AVOID RISk OF SERIOUS INJURY OR DEATH USE CAUTION WITH SkIER IN TOW SHUT OFF ENGINE WHEN NEAR SWIMMERS AS TOW ROPE MAY BACkLASH INTO OR PRIOR TO USING SWIM PLATFORM AND COCkPIT WHEN RELEASED BOARDING LADDER. MRP 1745125 SR-7111 MRP 1745519 SR-7214 280 Sundeck ®...
  • Page 14 MATERIALS THAT FLOAT and does not include drainage ter, and gray water. from toilets, urinals, hospitals, 12 TO 25 MILES and cargo spaces. PLASTICS LOCATED ON INSIDE OF WET BAR CABINET DOOR 280 Sundeck ®...

  • Page 15: Basic Boat Dimensions And Clearances

    ImensIons and learances . 5.1) WATERLINE KEEL 280 Sundeck SpecificationS HeigHt dimenSionS ® (A) Overall Length (D) Keel to Top of Nav Light ....9' 4½" 2.86 m With Std. Swim Platform ..28' 0" 8.53 m (E) Waterline to Top of Nav Light ..7' 5½"...

  • Page 16: Function And Location Of Through-Hull Cutouts

    DOCK LIGHT BILGE PUMP WET BAR SINK (OPT) DRAIN MANUAL BILGE PUMP (CE OPT) Ilge HrougH uTouTs ransom HrougH uTouTs . 6.3) . 6.4) TRANSDUCER STERN EYE TYP P&S UNDER WATER LIGHTS (OPT) TYP P&S GARBOARD DRAIN 280 Sundeck ®...

  • Page 17: Helm, Gauge & Switch Layout

    OPERA TE BLO W ER FOUR (4) MINUTES AND VERIFY BLO WER OPER ATI ON. R U N BLO WER WHEN VESSEL IS OPERA TING BELO W CRUISING SPEEDS. THRU-HULL WAT ER BILGE BILGE ANCHOR HORN EXHAUST PUMP PUMP BLOWER 280 Sundeck ®...
  • Page 18 STEREO REMOTE AUTOMATIC FIRE IGNITION SWITCH SUPPRESSION SYSTEM INDICATOR LIGHT onTrol TaTIon Tarboard WITcH anel . 8.2) ANCHOR COCKPIT DOCKING HULL WIPER LIGHTS LIGHTS LIGHTS LIGHT LIGHTS THRU-HULL WAT ER BILGE BILGE ANCHOR HORN EXHAUST PUMP PUMP BLOWER 280 Sundeck ®...

  • Page 19: Deck Layout

    COCKPIT WET BATTERY CHARGER PLUG (OPT) DEDICATED COOLER STORAGE COCKPIT TABLE BASE (OPT) TRANSOM DOOR L-SHAPED LOUNGER, “MULTI-FUNCTIONAL” STORAGE AFT SEAT TRANSOM TRANSOM STEREO TRIM SWITCH REMOTE (OPT) FUEL FILL SKI TOW EYE SWIM PLATFORM SWIM LADDER 280 Sundeck ®...

  • Page 20: Cleats

    LIGHTS STERN NAV. / RECTANGLE LIGHT ANCHOR LIGHT THRU-HULL WAT ER BILGE BILGE ANCHOR HORN EXHAUST PUMP PUMP BLOWER BULB REPLACEMENT BULB STARBOARD NAVIGATION ANCHOR LIGHT FUSE TYPE BULB REPLACEMENT SWITCH PANEL LIGHT SWITCH SWITCH #12V10WPERKO BULB#CEC1141 280 Sundeck ®...

  • Page 21: Bilge Layout

    11. b ilge aYouT Ilge ayouT . 11.1) FRESH WATER WASTE WATER TANK HOLDING TANK FRESH WATER PUMP BATTERIES TRANSDUCER FUEL TANK POWER TRIM PUMP BILGE PUMP TRIM TABS PUMP AUTOMATIC FIRE ExTINGUISHER (OPT) BILGE BLOWER 280 Sundeck ®...

  • Page 22: Fire Extinguishing System

    Rear facing transom seats must not be used while engine is running or boat is moving. ysTem . 12.1) FUEL TANK VENT HOSE FUEL FILL DECK PLA TE FUEL FEED 280 Sundeck ®...

  • Page 23: Entertainment System

    ® on the boat’s electrical system yourself. Instead, we recommend that you take your boat to your authorized Sea Ray dealer for service. Sea Ray ® ® reserves the right to change or update the electrical system on any model at any time without notice to the consumer and is NOT obligated to make any updates to units built prior to changes.
  • Page 24 280 s ® undeck Wners anual dc W IrIng cHemaTIc draWIng no. 09-602 (1 . 14.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 25 280 s ® undeck Wners anual dc W IrIng cHemaTIc draWIng no. 09-601 (2 . 15.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 26 280 s ® undeck Wners anual dc W IrIng cHemaTIc draWIng no. 09-601 (3 . 16.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 27 W IrIng cHemaTIc draWIng no. 09-602 (4 . 17.1) dc W IrIng cHemaTIc draWIng no. 09-602 (5 . 17.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 28 280 s ® undeck Wners anual dc W IrIng cHemaTIc draWIng no. 09-602 (6 . 18.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 29 W IrIng cHemaTIc draWIng no. 09-602 (7 . 19.1) dc W IrIng cHemaTIc draWIng no. 09-602 (8 . 19.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 30 280 s ® undeck Wners anual dc W IrIng cHemaTIc draWIng no. 09-602 (9 . 20.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 31 280 s ® undeck Wners anual dc W IrIng cHemaTIc draWIng no. 09-602 (10 . 21.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 32 280 s ® undeck Wners anual Tereo IrIng cHemaTIc Tandard draWIng no. 09-607 . 22.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 33 280 s ® undeck Wners anual Tereo IrIng cHemaTIc draWIng no. 09-608 . 23.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 34 280 s ® undeck Wners anual oWer Peaker ysTem draWIng no. 09-609 . 24.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 35 280 s ® undeck Wners anual oWer Peaker ysTem draWIng no. 09-614 . 25.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 36 280 s ® undeck Wners anual aTellITe Tereo ysTem Iagram draWIng no. 09-716 . 26.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 37 Harger ysTem rInT draWIng no. 09-738 (1 . 27.1) aTTery Harger ysTem rInT draWIng no. 09-738 (2 . 27.2) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 38 280 s ® undeck Wners anual vHf s ysTem Iagram draWIng no. 09-745 . 28.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 39 280 s ® undeck Wners anual dTs s ercury ysTem Iagram draWIng no. 09-770 . 29.1) Warning: DO NOT attempt to work on the electrical system of this boat without professional assistance. 280 Sundeck ®...
  • Page 40 280 s ® undeck Wners anual THIS PAGE INTENTIONALLY LEFT BLANK 280 Sundeck ®...
  • Page 41 Entertainment System ..........13 Safety Labels ............... 2 Fire Extinguishing System ......... 12 Fuel System ............... 12 Warranties ..............vi, viii Water System ............12 Hull Identification Number (HIN) ......... vi Through-Hull Cutouts ........... 6 Index i Sea Ray Boats...
