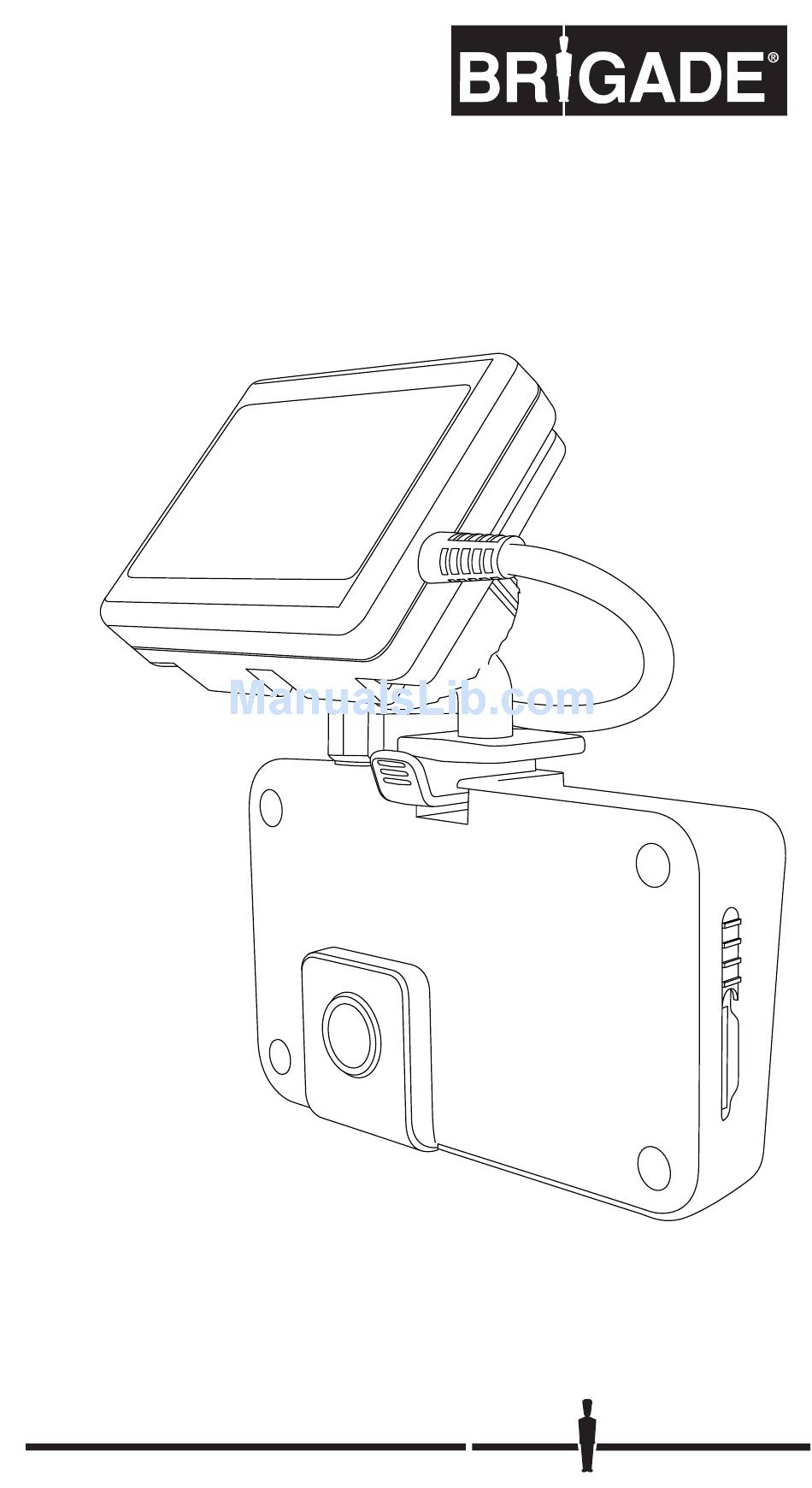

- Page 1 EDR-101 Event Data Recorder Instruction manual Part 4515...
-
Page 2: Table Of Contents
CONTENTS PAGE 1. General instructions ................3 2. Features & box contents ..............4 3. Components and functions ..............5 4. Installing the recorder in your vehicle ..........6 1) Recommended installation location ............6 2) Mounting the GPS antenna ..............7 3) Mounting the recorder ................7 5. -
Page 3: General Instructions
WARNING Always check that data saves on the micro SD card correctly. Brigade does not take any responsibility for data loss. Ensure the micro SD Card is fully inserted. Before ejecting the micro SD Card, please ensure the power is off. If you eject the micro SD Card while powered, it may cause malfunction or data loss. -
Page 4: Features & Box Contents
Self-adhesive pads x 5 Optional parts Cigar cable V-Out cable Micro SD Card M142B External (Optional) (Optional) lock camera • Pictures of the products may differ from the actual product. Some parts may change without notification. Contact Brigade for details. -
Page 5: Components And Functions
Components and functions 13. Mounting Bracket 7. Speaker 6. Microphone 1. Camera 5. Status LED 9. Function button 10. Reset button 12. GPS antenna 3. External camera input 2. V-Out 8. micro SD slot 4. DC in 11. External GPS input 1. -
Page 6: Installing The Recorder In Your Vehicle
Installing the recorder in your vehicle Recommended installation location The optimum position for the recorder is in the centre of the windscreen. If it is difficult to position the recorder in the centre of the windscreen, the recorder may be positioned to one side but this will compromise the recorded view. -
Page 7: Mounting The Gps Antenna
Installing the recorder in your vehicle Always refer to the vehicle manufacturer’s guidelines for installation and connections to the vehicle. • Disconnect the vehicle battery. • Follow safe working practices. Ensure the product is attached to the windscreen properly. - Clean the windscreen and adhere the product firmly, otherwise it may become detached due to temperature/humidity/dust/shock/vibration. -
Page 8: Preparations For Operation
Preparations for operation To remove the micro SD Card, first turn off the power and check the Power & GPS LED is off (no more than 20 sec. required). Then, remove the micro SD Card. If you remove the micro SD Card with the power on, a warning chime sounds and no recordings will be saved. -
Page 9: Operation - System Active
Operation - System active Do not operate whilst driving. Power ON / OFF To power on, turn the vehicle ignition on with the power cable connected, the 3 LEDs will illuminate. When the recorder has finished starting up, a chime will sound and the Power/GPS LEDs will illuminate red. -
Page 10: Operation - Recording Modes
Operation - Recording modes Video recording Once the installation is complete, turn on the vehicle ignition. The recording will start when the recorder has finished starting up. LED operation. Infinite recording: Blue LED flashes at intervals of 2.5 seconds. Event recording: Blue LED flashes at intervals of 0.5 second. -
Page 11: Emergency Recording
Operation - Recording modes Emergency recording Emergency recording function is intended to record any unexpected events or when it is deemed necessary by the driver. Such images will be saved in the EVENT folder of the micro SD Card. Briefly press down Function button [ ], manual recording will be enabled. -
Page 12: Operation - Auxiliary Display
Video input to monitor V-Out cable (Option) *Connect to video input of monitor (Optional) * Additional adaptor cables may be required. If any non Brigade cable is used, the unit may malfunction. Restart System reset function is used in the event of any fault(s) during operation or when the recorder stops suddenly. -
Page 13: Pc Viewer Manager
PC Viewer Manager How to use PC VIEWER MANAGER Copy the PC Viewer program from the CD to your PC. Once copied, double click on icon to run the PC Viewer Program. Playback display Shows front camera video Playback display Shows rear camera video G-SENSOR/Playback Location Shows G-SENSOR data with graphs and playback location... - Page 14 PC Viewer Manager • Menu Button and Control Button Function Description Volume control Controls the play volume (Mute / Volume +,-) Play/Pause Play or pause the playing file Back/Next Play previous or next file • Playback list button controls Button Function Description All Files...
- Page 15 PC Viewer Manager • Playback list Function Description 1 File list Shows file on the micro SD Card 2 File Select Select the file/s to save or delete. 3 File Type Select files to be displayed ALL/EVENT/INFINITE 1) Files are arranged by Date/Time. 2) Files can be arranged by ALL / NORMAL / EVENT / PARKING 3) There is a select button to the left of each file.
- Page 16 PC Viewer Manager • Google Map Button Control Button Function Map Tracking Google Maps can be displayed when user’s PC is connected to the internet Map Zoom IN/OUT # Google Map can be displayed when user PC is connected through the internet. Other buttons Button Function...
-
Page 17: Configuration Settings
PC Viewer Manager Configuration settings CONFIG When the Configuration Set button is selected , the Settings window as shown below opens. Function Description Date/Time Choose the current date and time Standard time Select the standard time zone (summer time) daylight saving Video Quality Set up the video quality (default : HIGH 1280 x 720p) Recording... -
Page 18: Memory Info
PC Viewer Manager Memory Info Function Description Total Memory Shows Micro SD Card capacity Available Memory Shows available memory on Micro SD Card Infinite Memory Shows memory used for Infinite recordings Event Memory Shows memory used for Event recordings Version Info Function Description Firmware... -
Page 19: Firmware Update
Firmware Update Firmware upgradeable through micro SD Card. 1) Copy the target file to update, ‘bin’ file into a root folder of micro SD Card. 2) Insert the micro SD Card into the product and connect the power. 3) The updating process is in progress when the Red LED blinks rapidly. 4) When Update is completed, the recorder will automatically reboot. -
Page 20: Specifications
Specifications Built-in Camera 112° Viewing Angle Max Recording Resolution Built-in camera: 1280x720: Auxiliary camera 640x480 Recording Frame 1CH : 30fps, 2CH : 17fps / 13fps Video Compression H. 264 MPEG4 Recording Modes INFINITE / EVENT / PARKING / EMERGENCY Operating Voltage 12V-24Vdc Operating Temperature -10°C ~ 60°C... -
Page 21: Micro Sd Card Capacities
398.9 37.5 528.5 262.7 797.9 88.0 28.3 124.7 192.7 48.3 249.3 322.0 168.3 498.7 660.7 328.3 997.3 EDR-101 with external camera Infinite Event Extra Total Memory Memory Memory* Video quality Memory File size per Recording Recording Extra (Min) TOTAL (Gb) -
Page 22: External Camera Specification
External camera specification Camera EDR-142C CCD Colour Camera Viewing angle 140° Wide Viewing Angle Dimensions 38.5(W) X 29.5(H) X 38(D) Resolution 420TV Lines IP Rating IPx8 Colour Black painted finish View Normal Weight 125g Cable length Specification subject to change without notice. -
Page 23: Disclaimer
Camera monitor systems are an invaluable driver aid but do not exempt the driver from taking every normal precaution when conducting a manoeuvre. No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor. Specifications subject to change. - Page 24 www.brigade-electronics.com...
