WorldPenScan Series
User Manual
Version: V4.1 Mac
Release: March, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WorldPenScan Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Penpower Technology WorldPenScan Series

Summary of Contents for Penpower Technology WorldPenScan Series

  • Page 1 WorldPenScan Series User Manual Version: V4.1 Mac Release: March, 2015...
  • Page 2 Penpower Technology Ltd. Software User License Agreement You are licensed to legally use this software program (“the Software”) by Penpower Technology Ltd (“Penpower”) under this license agreement (“The Agreement”). If you do not agree with any of the provisions in this Agreement, please do not install, copy or use the Software.
  • Page 3 Penpower is unable to promise nor warrant that there will be absolutely no risk of loss or damage of information, or any other kind of loss, during installation and/or execution of the Software. You must be fully aware of your risks in using the Software. Penpower will provide you with the Software and support services in respect of the Soft- ware to the maximum extent permitted by law.
  • Page 4 10. Jurisdiction With regards to any disputes arising from this Agreement, Penpower and you agree that the court having jurisdiction over the business location of Penpower will be the court in the first instance.0 11. Miscellaneous In the event that any provision of this Agreement is found to be invalid at law, such in- validity will not affect the validity of any other provisions, or the legal enforceability of such other provisions.

  • Page 5: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in- stalled and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 6 < IC RSS-GEN 7.1.5>Industry Canada Caution This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 7: Table Of Contents

    Contents Introduction ............1 - 1 Chapter 1 Product Chapter 2 Getting Started ................. 2 - 1 2.1 System Requirements ................2 - 1 2.2 Hardware Specification ................2 - 1 2.2.1 WorldPenScan .....................2 - 1 2.2.2 WorldPenScan BT ..................2 - 2 2.2.3 WorldPanScan X ..................2 - 3 2.3 Software Installation ................
  • Page 8 There may be newer versions of the software that was released during or after this product’s manufacturing date. If the content in the User Manual differs from the on-screen interface, please follow the instructions on the on-screen interface instead of the User Manual.

  • Page 9: Chapter 1 Product Introduction

    Chapter 1 Product Introduction WorldPenScan series, the best input device, scans and recognizes lots of languges and put the scanned material into your computer via the USB interface. Whenever you come across any particular words or sentences that you do not understand, WorldPen- Scan series will scan for you.

  • Page 10: Chapter 2 Getting Started

    Chapter 2 Getting Started Chapter 2 Getting Started 2.1 System Requirements • Intel based Macintosh • Mac OS X 10.6.8 or later • USB port / Bluetooth module(WorldPenScan BT) 2.2 Hardware Specification 2.2.1 WorldPenScan • Dimensions: 130mm x 37mm x 18.5mm •...

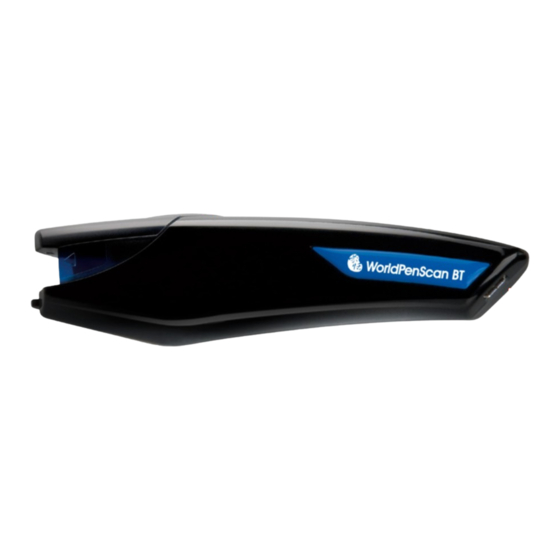

  • Page 11: Worldpenscan Bt

    WorldPenScan Series 2.2.2 WorldPenScan BT • Dimensions: 130mm x 37mm x 18.5mm • Weight: 35g • Interface: USB 2.0/ Bluetooth v2.1+EDR • Built-in lithium polymer rechargeable battery • Voltage and amperage: 4.75-5.25V (<100mA) • Scanning speed: 15 cm/sec. • Character size: 5~22 pt...

  • Page 12: Worldpanscan X

    Chapter 2 Getting Started 2.2.3 WorldPanScan X · Dimensions: 114.7mm x 33mm x 22.45mm · Weight: 55g · Interface: USB 2.0/Bluetooth v4.0 BLE · Built-in lithium polymer rechargeable battery · Voltage and amperage: 4.75~5.25V (<100mA) · Scanning speed: 10 cm/sec.· ·...

  • Page 13: Software Installation

    WorldPenScan Series 2.3 Software Installation 1. Insert the WorldPenScan/ WorldPenScan BT setup CD into the CD-ROM drive. Run the Setup and click [WorldPenScan] / [WorldPenScan BT]on the Installation window to install WorldPenScan/ WorldPenScan BT. (WorldPenScan BT for example.) 2. Please click [Continue] to install.
  • Page 14 Chapter 2 Getting Started 4. Click [Agree] to accept the license agree- ment. 5. Confirm the installation location and click [Install] to continue. 6. Click [Close] to finish the installation process.

  • Page 15: Launching Worldpenscan

    WorldPenScan BT] to launch WorldPenScan or WorldPenScan BT. 2.5 Registration When you first time run the WorldPenScan series, a registration reminder will appear. Please click on [Register now] to register and ensure the warranty service. You can also click [Register later] to close the reminder. When you need to register, click the [Tools] but- ton and select [About] from the toolbar and then click on [Register].

  • Page 16: Connect To Pen Scanner

    Chapter 2 Getting Started 2.7 Connect to Pen Scanner You can plug pen scanner into your computer's USB port via the USB cable to use WorldPenScan or WorldPenScan BT. Besides, WorldPenScan BT can be connected with computer via Bluetooth for use. Please follow the instructions to pair your computer and pen scanner with Bluetooth at first time use.
  • Page 17 WorldPenScan Series 5. The system will remind you that the pairing attempt was unsucceful. Please click on [Passcode Options] on the left buttom; then select [Use a specific passcode] and enter the pen scanner's default passcode: 1234. 6. Then, the pen scanner will connect to your PC automatically. When pen scanner is paired with your PC successfully, the status light on pen scanner blinks slowly (blink every 3 seconds), and the pen scanner will connect with WorldPenScan BT automatically.
  • Page 18 Chapter 2 Getting Started Note 1: Long press the function button on pen scanner will turn off pen scanner. Next time you want to use WorldPenScan BT, please shortly press function button to turn on pen scanner. The pen scanner will connect to WorldPenScan BT software automatically.

  • Page 19: Chapter 3 Scanning And Settings

    Chapter 3 Scanning and Settings Chapter 3 Scanning and Settings 3.1 WorldPenScan Toolbar 1. Language Recognition: The WorldPenScan series can recognize Traditional Chinese, Simplified Chinese, English, French, German, Italian, Japanese, Korean, Spanish and more text. Click to select the language you would like to scan.
  • Page 20 Mode for more detailed information. 7. Tools : Provide Original Image, Settings, Help and About WorldPenScan series. . Original Image: Display the scanned image. See 3.5 Original Image. . Settings: Provide general, recognition, and business mode settings. See 3.7 Settings for more detailed information.

  • Page 21: Scan Text And Image

    5. Stop applying pressure to the pen to stop scanning. The text that the pen has scanned will be displayed in your word processor immediately. Note: WorldPenScan series is able to scan and recognize one row of characters at a time. Please place the scan tip arrow at the center of the line.

  • Page 22: Online Translation

    WorldPenScan Series 3.3 Online Translation WorldPenScan series provides online translation function to translate scanned words and sentences by [Dictionary] and [Sentence Translation]. WorldPenScan series collects the translations results from websites and display them in its translation window. Note: Please connect to the internet while using the online translation function.

  • Page 23: Sentence Translation

    Chapter 3 Scanning and Settings 3.3.2 Sentence Translation 1. Select [Sentence translation] in the drop-down menu from the button 2. Select the language you want to translate from and the language you want to translate to 3. Select the translate engine you want to use 4.

  • Page 24: Business Mode

    WorldPenScan Series 3.4 Business Mode The Business Mode allows you to scan barcodes, invoices, checks, bills, postal codes, coupon numbers and racing numbers etc. The fonts that the Business Mode supports are OCR A, OCR B , MICR, and more fonts...

  • Page 25: Original Image

    Chapter 3 Scanning and Settings 3.5 Original Image Click [Tools] button and select the [Original Image] option from the drop-down menu to open the [Original Image] window. After scanning, the [Original Image] window displays the scanned image. You can check the scanned image to compare with the original text.

  • Page 26: Settings

    Function Button to be. Scan Direction WorldPenScan series must be used to scan the characters in consistent direction, any changes to the direction will cause inaccurate recognition results. When choosing Traditional Chinese, Simplified Chinese, Japanese or Korean as the lan- guage recognition, you can accord to the document you want to scan and your preferred way of holding pen to choose the scan direction manually.
  • Page 27 Scan from left-to-right or from right-to-left Note: Penpower WorldPenScan series is able to scan and recognize one row of characters at a time. Please place the pen in such a manner so that the Scan Tip arrow is at the center of the line of text.
  • Page 28 Left hand: Scan from left-to-right Right hand: Scan from left-to-right Note: Penpower WorldPenScan series is able to scan and recognize one row of characters at a time. Please place the pen scanner in such a manner so that the Scan Tip arrow...

  • Page 29: Recognition Settings

    Recognition Languages WorldPenScan series provides lots of recognition languages for you to choose. In the toolbar, you can drag down the recognition menu to select the recognition language you want.
  • Page 30 3-12 WorldPenScan Series Chinese Recognition Option When choosing Chinese Traditional or Chinese Simplified as the language recognition, you can choose to output the recognized characters in Traditional Chinese or Simplified Chi- nese. Check the [Output full-width punctuations] option to set the punctionations as full- width.

  • Page 31: Business Mode

    3-13 Chapter 3 Scanning and Settings 3.6.3 Business Mode When using the business mode, you can accord with the scan content to choose the scan mode as below for higher recognition accuracy and the font the mode supports will show in the window.

  • Page 32: Stardict Dictionary

    3-14 WorldPenScan Series 3.6.4 StarDict Dictionary WorldPenScan allows you to import StarDict dictionary files (*.bz2), if you have the dictionary file, please follow the steps below to import, you can find the shared StarDict files on internet, and click the link to download then save the dictionary file into your computer, and click [Import] here to import StarDict dictionary files, and also delete the dictionaries you don't want to use in here.

  • Page 33: Hardware Information (For Worldpenscan Bt)

    3-15 Chapter 3 Scanning and Settings 3.6.5 Hardware Information (For WorldPenScan BT) In [Hardware info] page, you can view the Bluetooth status and pen status. y Host Bluetooth status: Show whether the Bluetooth of your computer is turned on or not. y Pen Bluetooth status: Show the connecting status of pen scanner.
  • Page 34 WorldPenScan Series V4.1 Mac User Manual Release: March, 2015 PenPower Technology Ltd.
