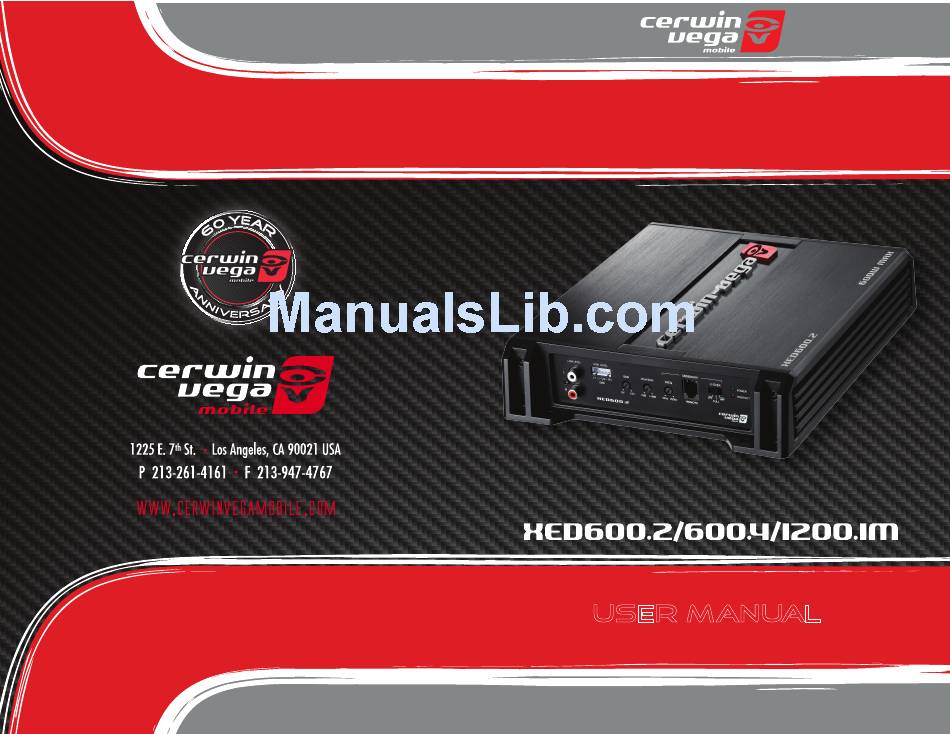

- Page 1 SERIES AMPLIFIERS USER MANUAL...
- Page 2 For optimal performance of this product, it is highly Limited Warranty (U.S.A.) Cerwin Vega Mobile warrants all of our amplifiers and speakers to be free of defects in materials and workmanship for a period of recommended that you have your new amplifier installed by an authorized one (1) year.
-
Page 3: Installation
WARNING: PRODUCT SPECIFICATIONS Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. Cerwin Vega Mobile amplifiers can exceed that level so please exercise restraint when listening and enjoying your new amplifier. XED600.2 XED600.4 XED1200.1M... - Page 4 Standard automotive type ATC/ATO fuses are used on Cerwin Vega Mobile amplifiers. Always replace with the correct fuse size. Never insert fuses of higher values. Doing so will void the warranty of your Cerwin Vega Mobile amplifier. Also include a main fuse at the connection to the vehicle battery within18 inches of the positive battery post.
-
Page 5: Fuse Ratings
The switched voltage is usually taken from the FUSE RATINGS source unit’s remote amp turn on lead. If the source unit XED600.2 = 25A does not have this output available, the recommended XED600.4= 2X25A solution is to wire to an accessory terminal in the car’s fuse XED1200.1M= 2X30A... -
Page 6: Wire Diagrams
Set up Wire Diagrams Placing the x-over switch in the FULL position (XED600.2, & XED600.4) sets the amplifier to Full Range. This setting allows Four Channel Mode:XED600.4 Three Channel Mode:XED600.4 ALL frequencies to pass to the speakers. Placing the switch in the HPF or LPF position activates the crossover.
