Summary of Contents for Cerwin-Vega CVPRO PRO Series

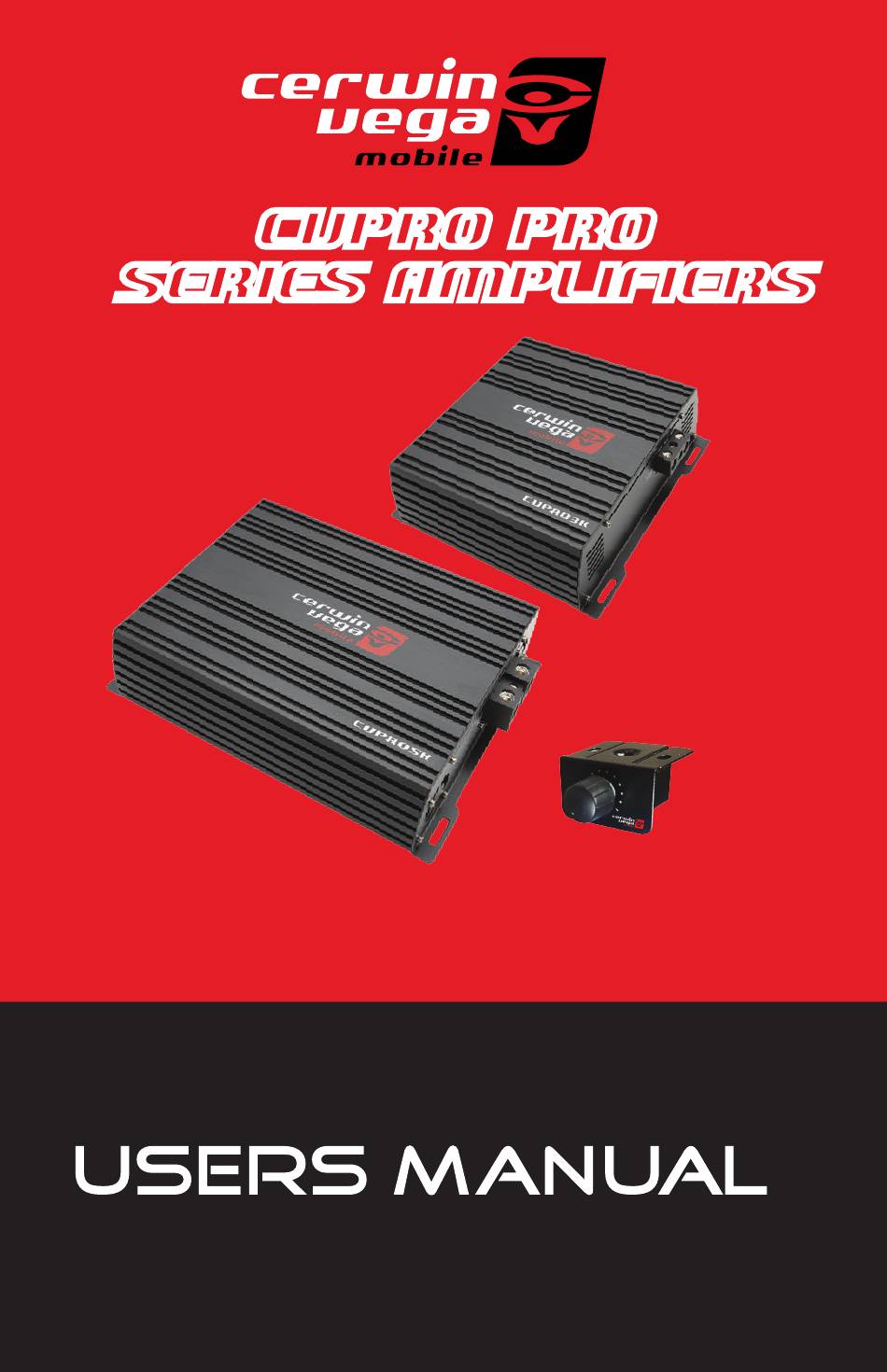

- Page 1 CVPRO PRO CVPRO PRO SERIES AMPLIFIERS SERIES AMPLIFIERS CVPRO3K/CVPRO5K...
- Page 2 Cerwin Vega Mobile Amplifiers Thank you for purchasing a Cerwin Vega Mobile amplifier for your car audio system. You have chosen Cerwin Vega Mobile because you deserve the best! Cerwin Vega Mobile amplifiers are designed and engineered to the highest quality standards in the industry to create the ultimate listening experience in your vehicle.
-
Page 3: General Precautions
General Precautions Installation WARNING Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. Cerwin Vega Mobile amplifiers can exceed that level so please exercise restraint when listening and enjoying your new amplifier. GENERAL PRECAUTIONS •... -
Page 4: Installation
Installation VEHICLE ELECTRICAL SYSTEM Amplifiers (regardless of brand name) will put on increased load on the vehicles battery and charging system. Cerwin Vega Mobile recommends checking your alternator and battery condition to ensure that the electrical system has enough capacity to handle the increased load of your stereo system. Original equipment electrical systems which are in good condition should be able to handle the extra load of any CVM amplifier without problems, although battery and alternator life can be reduced depending on your individual listening habits. - Page 5 Installation H71200.1D/H718 5. Prepare the ground wire for attachment to the amplifier by stripping 5/8" of insulation from the end of the wire. Always use a wire of the some gauge as the power connection, never smaller. Insert the bare wire into the GND terminal and tighten the set screw to secure the cable in place.
- Page 6 Functions H72400.1D 11.9”/302mm 10.4”/265mm 7.28”/185mm 8.75”/222mm...
- Page 7 GAIN This control matches the preamp stage of the Cerwin-Vega Mobile amplifier to your source unit. This is NOT a volume control. The range is between aprox 150mV -12V.
- Page 8 Set up Before setting gain ..Adjust the crossover filters, since they are always on..you must set them up. Assuming you are using the CVPO3K or 5K as a subwoofer amplifier adjust the LowPass Filter. Typically start at about 80-100Hz. This setting allows ALL frequencies to pass to the subwoofers.
- Page 9 System Diagrams TRADITIONAL SUBWOOFER 1 OHM CONFIGURATION (CVPro3K/5K): NOTE: SET LOW PASS TO ABOUT 100Hz(Starting point) DUAL 4 WOOFER (MAKING IT A 2 OHM DRIVER) DUAL 4 WOOFER BASS REMOTE (INCLUDED) (MAKING IT A 2 OHM DRIVER) PRO AUDIO FULL RANGE MONO 1 OHM CONFIGURATION: NOTE: SET HIGH PASS TO ABOUT 100Hz NOTE: “PRO STYLE”...
-
Page 10: Product Specifications
PRODUCT SPECIFICATIONS CVPRO3K CVPRO5K RMS Power Rating (rated at 0.1% THD) Max Power 6000 W MAX 10000 W MAX 3000 5000 RMS Power (1 ) 3300 2050 RMS Power (2 ) 1100 1900 RMS Power (4 ) Type Topology FR Class D FR Class D FR Class D Power Supply... - Page 11 Thank you for purchasing a Cerwin Vega Mobile product and we hope to provide you with countless hours of listening enjoyment. Please take a brief moment to register your new product. By registering your new product, you will receive benefits such as: - Important product notifications that may pertain to your purchase.
- Page 12 3761 SOUTH HILL STREET LOS ANGELES, CA 90007 USA P 213 - 261 - 4161 F 213 - 246 - 2423 2020 Cerwin Vega Mobile All Right Reserved (a division of CV & DA Holdings, Inc.)
