2. Remove the inner chain guard
shoud by removing the three
screws (highlighted in Fig. 7).
3. Place the cadence sensor
inside the foam holder (Fig. 4).
4. Affix the strip of double stick
adhesive to the underside of
the cadence sensor and foam
holder to cover the battery
access cap.
5. Mount the cadence sensor
and foam holder to the inside
of the shroud, as shown in
Fig. 8. It should be within 10
cm (.4 inches) of the magnet
on the crank arm.
6. Reinstall the chain
guard shroud and test
synchronization.
NOTE: To test synchronization, first press the reset button on the sensor.
Rotate the bike pedals for at least ten rotations. A green light will flash after
each pass to confirm the synchronization between the sensor and magnet.
©2015 Mad Dogg Athletics, Inc. All rights reserved. Spin®, Spinner®, Spinning®, Spin Fitness® and the Spinning logo
registered trademarks that are owned by Mad Dogg Athletics, Inc.

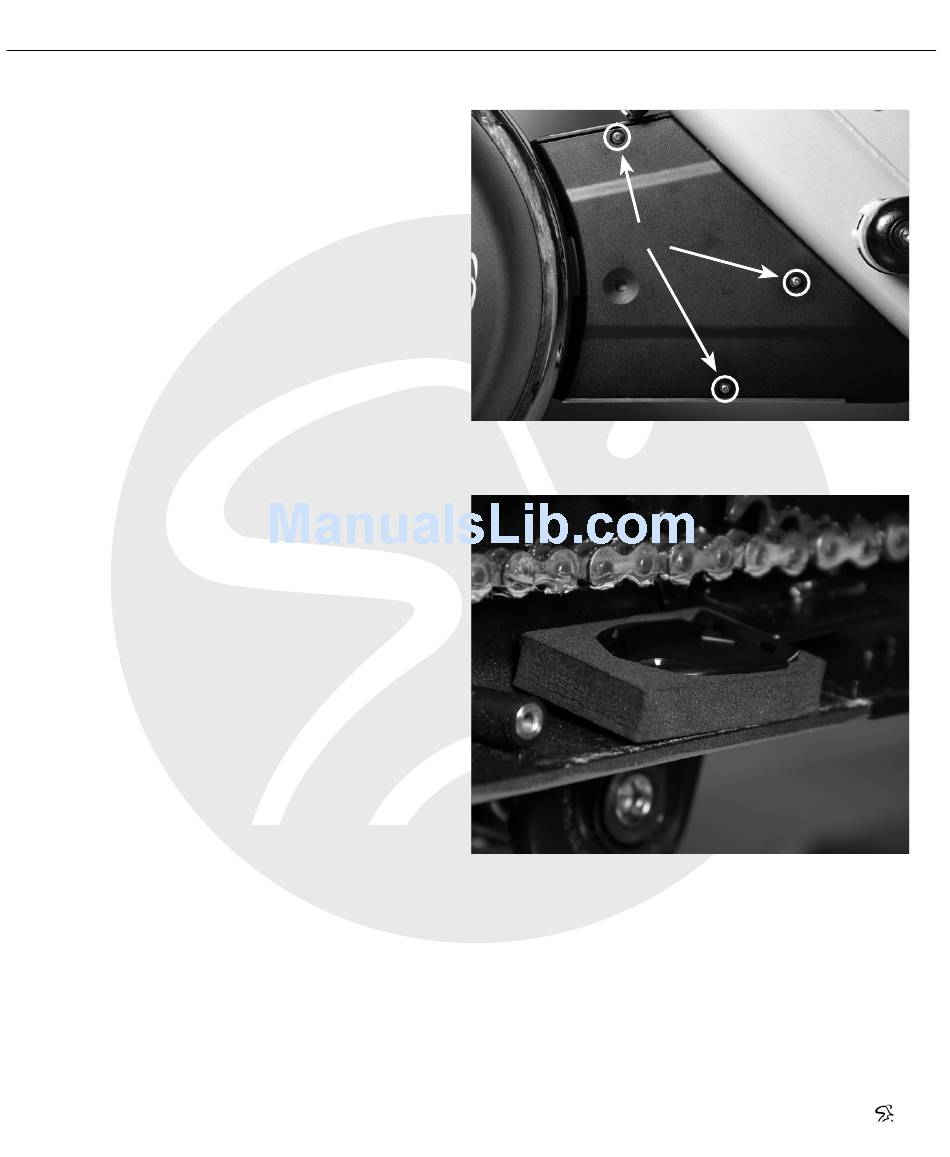

screw locations
