Section 2: Installation

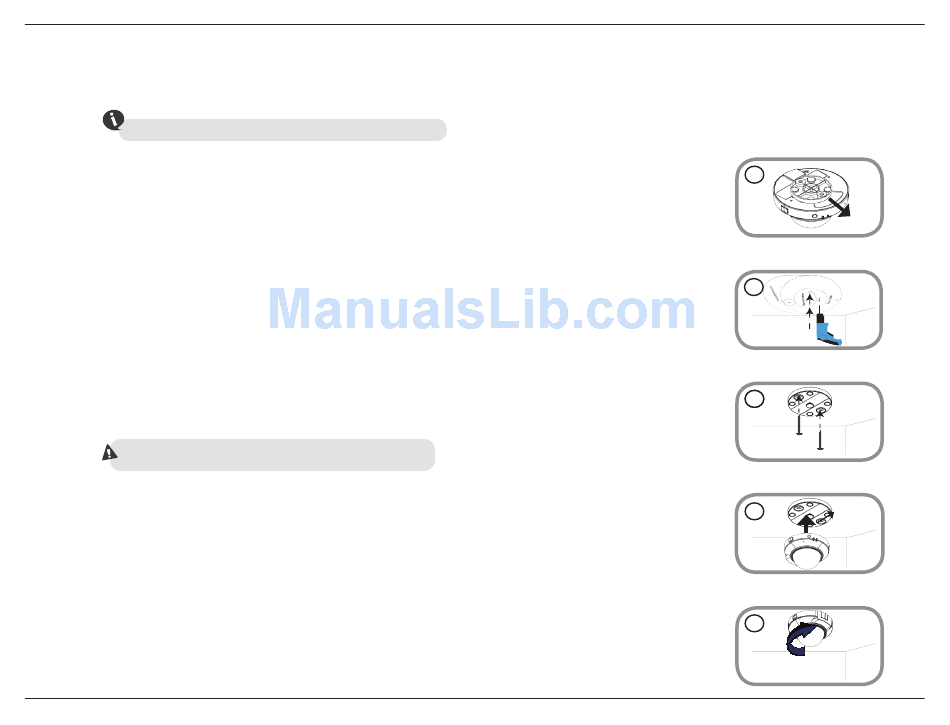

Please refer to the steps below to assist you with mounting the camera.
We suggest that you configure the camera before mounting.
1. The camera needs to be separated from the mounting base to expose the holes in the
mounting base. Remove the camera head from the mounting base by firmly holding the
camera with the D-Link logo facing you and then sliding the mounting base towards you.
2. Place the mounting base alignment sticker where you want to position the camera.
Depending on the material of the wall or ceiling, use proper tools to drill two holes where
you placed the alignment sticker. If the wall is made out of concrete, drill the holes first, then
insert the plastic anchors to support the screws.
3. Place the mounting base over the holes that are in the wall. Make sure to align the mounting
base holes with the holes in the wall. Use the supplied screws to attach the mounting base to
the surface of the wall.
Do not overtighten screws as this may crack the mount.
4. With the D-Link logo facing you, reattach the camera to the mounting plate by sliding the
camera towards you until it locks into position.
5. Adjust the angle of the camera as desired, then tighten the collar on the camera stem to lock
it in place.
