Rev 4

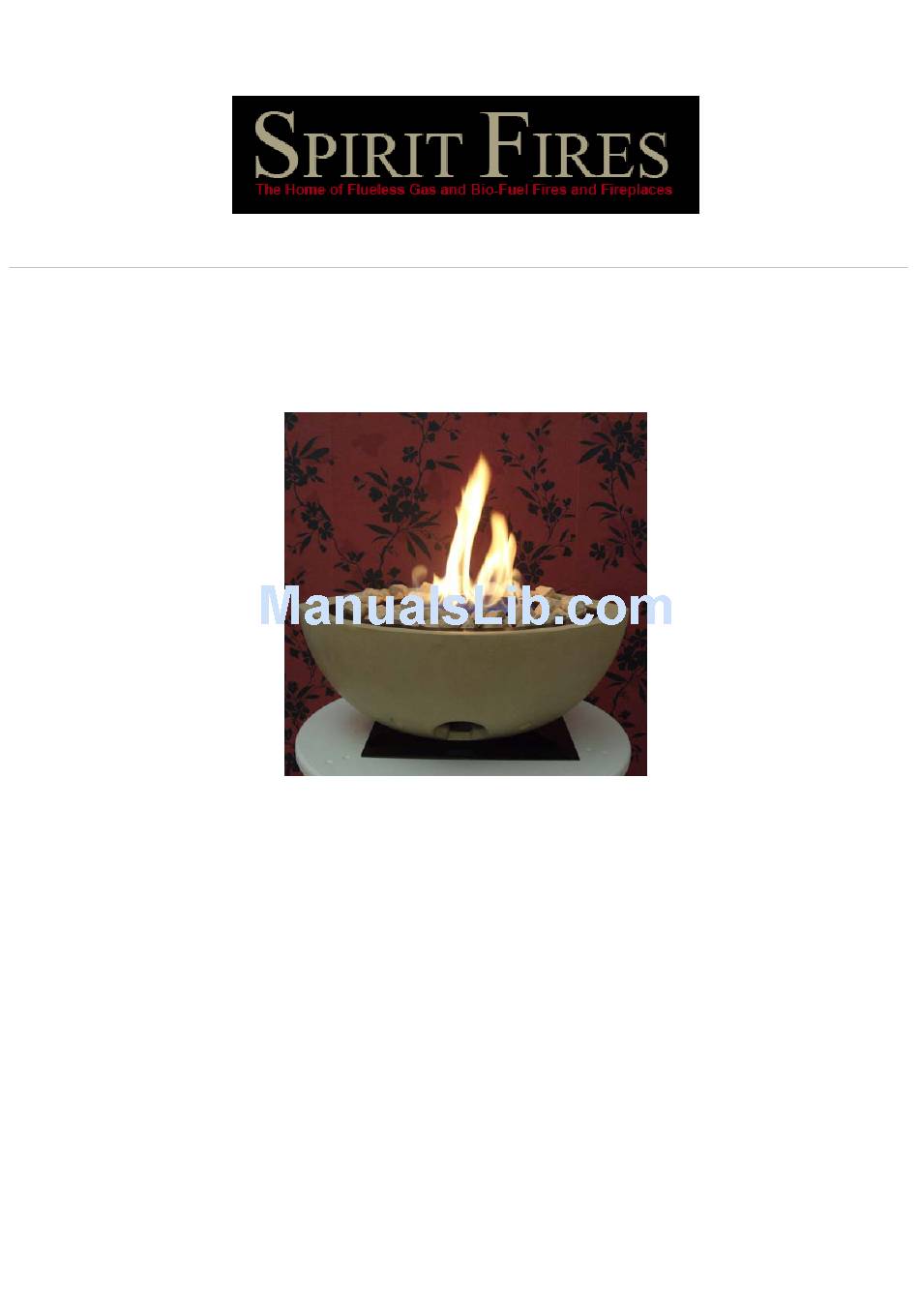

OVAL GEL BOWL – Freestanding Gel Fire
ASSEMBLY AND USER INSTRUCTIONS
For use with Spirit Fires Approved Fire Gel ONLY
THIS IS A DECORATIVE FIRE ONLY AND IS NOT TO BE USED AS A PRIMARY HEAT
SOURCE FOR A ROOM OR PROPERTY. ENSURE THAT YOU READ THROUGH THIS
INSTRUCTION MANUAL FULLY BEFORE INSTALLATION AND USE
Order Number ....................................
Please quote this order number when contacting Spirit Fires. Your Warranty is
valid for 1 Year from date of delivery. The Warranty card supplied is to be filled
in and sent to the address below.
Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe,
County Durham, DL5 6SW.
Advertisement
Table of Contents
Related Manuals for Spirit Fires OVAL GEL BOWL
Summary of Contents for Spirit Fires OVAL GEL BOWL
- Page 1 INSTRUCTION MANUAL FULLY BEFORE INSTALLATION AND USE Order Number ……………………………… Please quote this order number when contacting Spirit Fires. Your Warranty is valid for 1 Year from date of delivery. The Warranty card supplied is to be filled in and sent to the address below.
-
Page 2: Unpacking The Appliance
Note: Bio-Ethanol Version is only available for orders placed after the 15-Oct-2008. Previous versions have no secondary fuel bed and are suitable for Gel Fuel Only. Unpacking the Appliance Read these instructions fully before proceeding Carefully examine the carton for damage before unpacking. If it is obviously damaged, consult the supplier over whether to proceed. -
Page 3: Installation Instructions
Installation Instructions General • The installation must also be in accordance with the relevant parts of local and national building regulations. • Soft furnishings, decorations and wall coverings etc. must not be placed within 1.5 metres of the appliance and its outlets. •... - Page 4 • The fire is intended as a secondary heat source and should not be used as a primary heat source. Check that a primary heat source (such as radiators) is present in the room. If insufficient primary heat is being used there may be a build up of condensation.
- Page 5 CLEARANCE TO COMBUSTIBLE MATERIALS AND SHELVES As with all flueless fires the possibility of convection staining on surfaces in the vicinity above the fire outlet should be expected. Particular attention should be taken to ensure soft furnishings such as scatter cushions, rugs and curtains are kept at least 1.5 metres from the appliance.
- Page 6 reached. Do not overfill. The fuel must be lower than the top edge of the burner. o Ensure any spillages are wiped clean with a damp cloth and removed before lighting. • Gel Bio-Fuel o Remove the Snuffer lid. USING A FUNNEL (Never tip direct from the bottle) - the gel is poured into the inner oval trough which can be filled up to a level of 5mm below the top.
- Page 7 Removing spillages Where a liquid has been spilled onto the surface of the unit, it should be removed quickly to prevent staining or serious damage. A solution of warm water and organic cleaner will give best results. Apply the mixture with a dabbing motion, using a sponge.
- Page 8 The information supplied in this manual is correct at the time of publish; Dated on the 30/08/10. There may be changes made in future as we improve our products. If there are any queries please write or call our technical department. Spirit Fires Ltd, 4 Beaumont Square Aycliffe Industrial Park, Newton Aycliffe...
