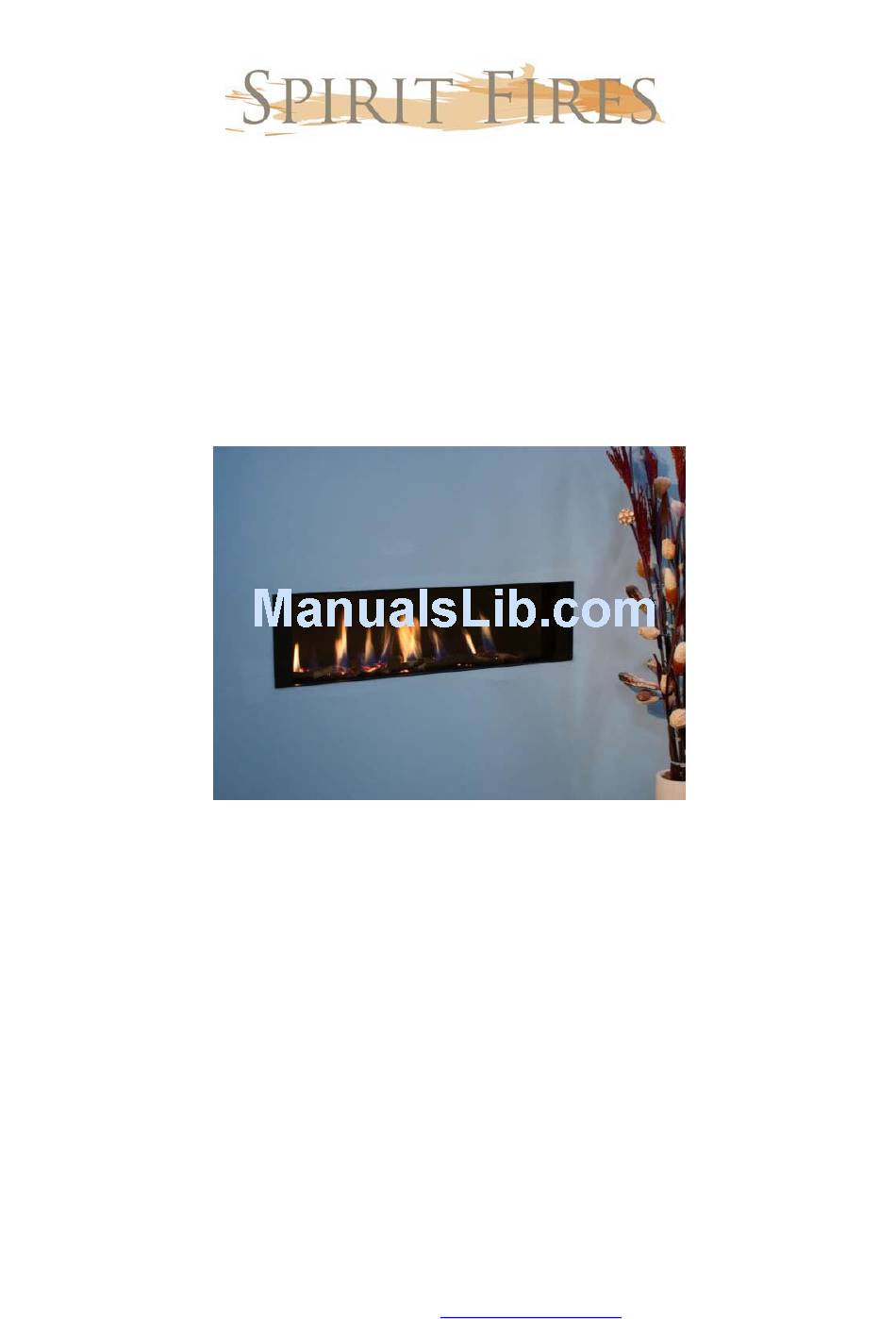

TECHNICAL INSTALLATION MANUAL
FR920HE
(HIGH EFFICIENCY GAS FIRE)
CE Approval:
BSEN613:2001+A1:2003+C1:2008 & BS7977-
1:2009+A1:2013
CE Pin Number:
0558CP1693
The FR920HE is suitable for Natural Gas only.
Serial Number ....................................
Please quote this serial number when calling to discuss your fireplace. To register your
installation please return the warranty card supplied with the fire.
This booklet contains the Instructions for Installation and
Maintenance and the User Instructions must be handed to
the User once the appliance has been commissioned. The
booklet should be retained for future reference.
Page 1 of 60
Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County
Durham, DL5 6XN. Tel : 01325-327221 Web :
www.spiritfires.co.uk
Advertisement
Table of Contents
Related Manuals for Spirit Fires FR920HE
Summary of Contents for Spirit Fires FR920HE
- Page 1 User once the appliance has been commissioned. The booklet should be retained for future reference. Page 1 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 2: Table Of Contents
Page 41 Servicing Instructions Page 42 Spare Parts/Optional Extra Page 43 Gas Fire User Instructions Page 2 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 3: Technical Data
[notified body number 0558]. The efficiency value may be used in the UK Government’s Standard Assessment Procedure (SAP) for energy ranging of dwellings Page 3 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 4: Introduction And Installation Requirements
• The installation must be carried out by a Gas Safe registered engineer in accordance with National Regulations. Page 4 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 5 Gas Supply: This appliance is intended for use on a gas installation with a governed meter. The FR920HE is available for Natural Gas only. Inlet is via an 8mm connection via the isolation valve provided with the fire. The gas connections must be in accordance with National Regulations.
- Page 6 • This appliance becomes hot during operation therefore all areas must be considered to be working surfaces. Page 6 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 7: Remote Control System
Page 7 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 8: Unpacking The Appliance
For this reason the fire is supplied to site as the following models: • FR920HE-BS7977 • FR920HE-EN613 Page 8 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 9: Removing/Fitting The Glass Panel
Page 9 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 10: Glass Removal
5. Screw the top bolts back in using fingers until seated – they do not have to be tight. This creates a gap at the top. Page 10 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 11 9. Ensure the glass is stored in a safe place. Fitting the Glass Refitting the glass is a reversal of the above procedure. Page 11 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 12 To refit the vanity cover just lift the cover back in and fix with the screws. Page 12 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web :...
-
Page 13: Version # 2 : En613 : 2001
If installing this fire to EN613 go to page 21 Page 13 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 14 Page 14 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 15 See section in manual. Page 15 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 16 Note: The base must be level – if the base is not level the flame will not be central in the fireplace and the user will most likely complain. Page 16 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 17 When measuring the fireplace opening the MINIMUM DEPTH FROM FINISHED WALL TO BACK OF FIREPLACE OPENING IS 326MM Page 17 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 18: Fitting The Fire
There must be a clearance of 10mm above the fireplace. There must be a clearance of 10mm on each side of the fireplace. Page 18 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 19 Once positioned the fireplace must be secured to the base of the fireplace opening using plugs and screws. Page 19 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 20 Page 20 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 21 The fire is now ready to be connected to the gas and commissioned. Now Go To Page 29 Page 21 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 22 50mm from the hearth. If the fire is to be fitted without a hearth the minimum height from the base of the fire is 100 mm. Page 22 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 23 See following images. Page 23 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 24 Page 24 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 25 The flue pipe must have a weather cowl fitted as any water which enters the flue pipe will leak to the gas fire chamber and damage the remote control. Page 25 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 26: False Chimney Breast
Cold air is drawn in at the base, warmed in the cavity and expelled a ceiling level. Page 26 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 27: Connecting The Gas
“I”. The fire is now ready to be switched on and commissioned. Page 27 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 28: Commissioning Checklist
This could be the pipe work or the meter. Page 28 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web :... -
Page 29: Commissioning The Appliance
- record the pressure on the commissioning sheet. Are the results within the limits? Page 29 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 30 Before the logs can be fitted the vanity cover needs to be refitted. Review the procedure on Page 12. To refit reverse the procedure shown. Page 30 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 31: Log Set Layout
Add Log 13 then add the wool strips along the flame cut-out. This creates the sparkle effect when the fire is alight. Page 31 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 32 Add Log 5 then Log 6 Add Log 17 then Log 12 Add Log 14 then Log 8 Page 32 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 33 Only the logs supplied with the fireplace can be used. If a log is damaged a replacement must be purchased from the manufacturer by calling 01325-327221. Page 33 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 34 This is to validate the warranty. The card must then be given to the customer for postage back to the factory. Page 34 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 35: Final Safety Check
For some countries a non-combustible hearth must be fitted in front of the fire in accordance with National Regulations (e.g. United Kingdom). Page 35 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 36: Fault Diagnosis/Troubleshooting
Technical : Fault Diagnosis & Troubleshooting Every gas fire manufactured by Spirit Fires is tested at the factory and give a full 40 point performance check to ensure it operates correctly. It is highly unlikely that when installed in line with these instructions that it would not operate as designed. - Page 37 If you do not have the chart, call 01325-327221 to request a copy. Do not start dismantling the gas fire as further damage will be done. Page 37 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 38: Remote Control Components
Page 38 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 39: Remote Control - Error Codes
To get to the valve the glass panel and front vanity cover need to be removed. Page 39 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 40: Service And Aftercare Requirements
• Unit serial number as shown on Data Plate or front of booklet. • Component part number or description of fault Page 40 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 41: Servicing Instructions
If the pilot is not being changed then make sure the pilot journals are clear and free from dirt. Page 41 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 42: Optional Extras
These parts must be ordered from customer services. The work must be carried out by a trained gas safe engineer with electrical qualifications. Page 42 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... -
Page 43: User Manual
Appliance is has been commissioned. The booklet should be retained for future reference. Page 43 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 44 Page 58 Warning Fire Guards and Hearths Page 59 Warranty Information Page 60 Contact Details Page 44 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
-
Page 45: Consumer Protection Information
Page 45 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 46 Power to the appliance is provided by 3 high power alkaline 1.5V batteries (AA size) these batteries can be changed to Nickel Metal Hydride Page 46 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 47 • This appliance becomes hot during operation therefore all areas must be considered to be working surfaces. Page 47 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 48 Slide the slide switch to the right to the On position (I symbol). Page 48 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 49 Page 49 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 50 Page 50 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 51 N.B. Pairing is not lost, even if the batteries are removed or flat. Page 51 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 52 Note: Whilst doing this setup pressing “SET” advances to the next display and pressing “MODE” will return you to the previous display setting. Page 52 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 53 F= operate an electric fan –which can have 9 speed levels o A= operate an auxiliary contact to operate another device. Page 53 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 54 SETUP is flashing in the top right corner. • Press and release the “set” button again to enter the “setup” Page 54 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 55 The snooze time period can be set before or during manual operation of the fire. Hold the handset to unlock as described previously and press the mode Page 55 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 56 If the room temperature is higher than the set temperature the fire will turn down. If the room becomes cooler the fire will adjust up. Page 56 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
- Page 57 Lighting the Fire with the Manual Switch Panel Note: Normal operation is via the handset only. Due to the design of the FR920HE it is not possible to use the manual switches on the gas control during normal operation. Use these instructions during installation and commissioning.
-
Page 58: Cleaning Instructions
Page 58 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web :... -
Page 59: Warranty Information
Page 59 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk... - Page 60 01325-327221. You can also find many technical sheets and guides on our website. Page 60 of 60 Spirit Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe, County Durham, DL5 6XN. Tel : 01325-327221 Web : www.spiritfires.co.uk...
