Myron & Davis SDM-108 User Manual

Myron & Davis SDM-108 User Manual

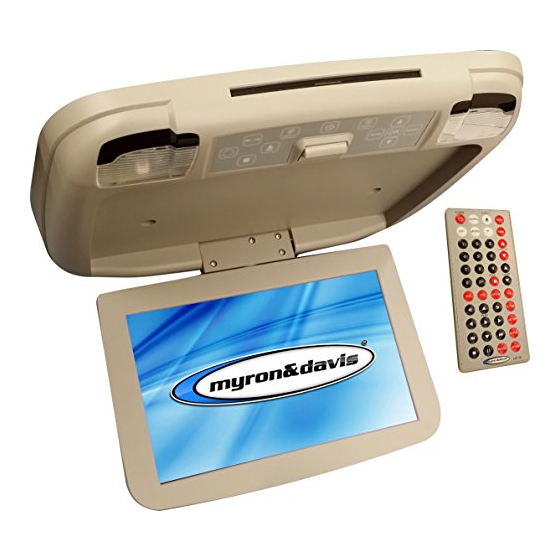

Super slim overhead monitor with 10.2" wide screen, built in dvd player, usb port, spsc port, miracast (optional)

Advertisement

IMPORTANT NOTICE
● Before operating the unit, please read these instructions carefully.
● Retain the manual for future reference.
● You are advised to follow the instructions carefully when operating the unit.
● Do not use any chemical solvent, cleaning agent or corrosive detergent to clean dirt off the surface of the screen. By doing so, you
may cause irreversible damage to the surface of the TFT screen. To clean off dirt or fingerprints, we recommend the use of a soft
damp lens cleaning cloth.
● Using spare parts from another manufacturer may caused permanent damage to the unit.
● When operating the display unit, avoid touching or pressing the LCD glass panel. Excessive force may cause irreparable damage to
the LCD screen.
● It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a screen that is located in the motor
vehicle at any point forward of the back of the driver's seat, or that is visible, directly or indirectly, to the driver while operating the
vehicle. In the interesting of safety, this monitor should never be installed where it will be visible, directly or indirectly, by the operator
of the motor vehicle.
● Lock the LCD screen in the fully closed position when not in use.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights
can drain the vehicle's battery.
SDM108 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDM-108 and is the answer not in the manual?

Questions and answers

Summary of Contents for Myron & Davis SDM-108

  • Page 1 IMPORTANT NOTICE ● Before operating the unit, please read these instructions carefully. ● Retain the manual for future reference. ● You are advised to follow the instructions carefully when operating the unit. ● Do not use any chemical solvent, cleaning agent or corrosive detergent to clean dirt off the surface of the screen. By doing so, you may cause irreversible damage to the surface of the TFT screen.
  • Page 2: Main Features

    MAIN FEATURES ● FLIP DOWN 10.2” 16:9 WIDE SCREEN TFT-LCD MONITOR. ● BUILT IN 1/4 DIN FULL FUNCTION DVD PLAYER. ● BUILT IN USB INPUT (1 BUILT IN, 1 OPTION). ● BUILT IN SPSC INPUT (SMART PHONE STREAMING CONNECTOR) (1 BUILT IN, 1 OPTION). ●...
  • Page 3: Dvd Player

    DVD PLAYER ● Support Disc Type DVD-ROM, DVD-R/+R, DVD-RW/+RW, CD, CD-R & CD-RW. ● Media format support DVD-VIDEO, VCD, SVCD, CD-DA, JPEG, BMP, MP2, MP3, MPEG & DAT. MEDIA PLAYER (USB) ● Support partition format: FAT32. ● Media format support MPEG1, MPEG2, JPEG, MP2, MP3, BMP & PNG. WIRELESS DISPLAY (OPTION) ●...
  • Page 4: Controls And Connectors

    CONTROLS & CONNECTORS ● POWER button: Press to turn the monitor on/off. ● MENU button: Press menu button to active OSD feature and select OSD features. ● UP/DOWN buttons: Adjustment buttons. ● IR Sensor: IR sensor for remote control. ● Dome lights: Provide additional interior illumination.
  • Page 5: Monitor Function

    REMOTE CONTROLLER FUNCTION DESCRIPTIONS MONITOR FUNCTION 1. MUTE button Press to mute the audio, press the button again to restore sound to the previous audio level. 2. MENU button Press this button to active the OSD menu screen. VOLUME UP button VOLUME DOWN button Use these buttons to increase / decrease the volume level of the audio output.
  • Page 6: Dvd Function

    DVD FUNCTION NUMBER buttons Allows the user to enter the numbers 0 to 10 for selection of CD track, DVD chapters, and password setting. PBC button Allows the user to select the subtitle when playing the VCD 2.0 version only. 10.
  • Page 7 21. STOP button During DVD playback, pressing the STOP button for the first time brings the DVD player to a pre-stop mode. You can resume playback from the stopped point by pressing the PLAY button. To completely stop playback, press the STOP button twice. 22.
  • Page 8 USB DRIVE FUNCTIONS 30. Page Up 31. Page Down Moves pages up and down. 32. REPEAT button Allows the user to repeat play. 33. SETUP button Press to enter the SETUP MENU MAIN PAGE 34. DISPLAY button Open the media player control menu. The media player control menu closes when pressed again.
  • Page 9: Monitor Operation

    MONITOR OPERATION Sliding the screen release lock forward will unlock the LCD screen and the LCD screen will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. ● Press the POWER button on the unit or remote to turn on the monitor. ●...
  • Page 10: Overhead Dome Lights

    OVERHEAD DOME LIGHTS The lights are controlled by dome lights button (DOOR->OFF->ON->DOOR) cycling loop. Do not leave the vehicle unattended with the dome light setting on, as this could result in a discharged battery. DVD OPERATING The DVD player has the ability to play DVD, VCD, Audio CD, MP3 audio and MPEG video, as well as display JPEG and BMP images.
  • Page 11 INPUT SOURCE OPERATION ● Press SOURCE button to open INPUT SOURCE MENU. ● Then press SOURCE button to scroll through INPUT SOURCE from top to bottom. ● Pressing ENTER or PLAY button will change to the chosen SOURCE. SDM108 11...
  • Page 12 VIDEO DISCs VIDEO DISCs Playback 1. Press the Source button and select DVD as the input source. 2. Press the EJECT button to eject the disc. 3. Place the disc with the label side facing up and the recorded side facing down. 4.
  • Page 13: Using The Repeat Feature

    AUDIO / MP3 CDs PLAYING AUDIO CDs (CDDA) ● When playing an audio CD, It displays the current track and time for that track playing. USING THE REPEAT FEATURE ● The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: ...
  • Page 14: Playing Mp3 Discs

    PLAYING MP3 DISCS ● MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on your DVD player. ●...
  • Page 15: Skipping Song

    SKIPPING SONG ● When an MP3 disc is inserted in the player, the Smart Nav screen appears automatically. You can change folders and songs through Smart Nav. The DVD player plays the songs in order they were burned on to the disc. ...
  • Page 16 MIRACAST OPERATION (OPTION) ● Switch INPUT SOURCE to Miracast. ● The following screen will be displayed. ● Open a Miracast Supported device (Android device) and search. ● Select Wi-Fi display. ● Enable Wireless display. SDM108 16...
  • Page 17 ● Select an available device on smart phone that matches ● When into the connecting status, both the smart phone and the device on display of SDM108. screen of SDM108 are showing the connecting messages. SDM108 17...
  • Page 18 ● Wait for device connected. ● When a successful connection is made, your phone’s screen will be mirrored onto the video screen. SDM108 18...
  • Page 19 Using a SPSC port by MHL to SPSC cable ● For iPhone lighting device: 1. Switch INPUT SOURCE to SPSC. 2. Using the SPSC cable Connection between the Lightning Digital AV Adapter and the SPSC port of SDM108. 3. Connect the adaptor cable on lighting side (male) to a smart phone. 4.
  • Page 20 ● For Android device: 1. Switch INPUT SOURCE to SPSC. 2. Using the SPSC cable Connection between MHL adaptor and the SPSC port of SDM108. 3. Connect the adaptor cable on micro USB side to a smart phone. 4. Connect the USB connector of adaptor cable to USB port of SDM108. The USB supports 1A for charging.
  • Page 21 USB DRIVE OPERATION ● Insert a USB Drive into the proper socket as shown on the above figure. Use caution when inserting Digital Media Card into the port. ● Select the USB Source on the Input Source menu CAUTION: USB Socket can be damaged if the wrong side is inserted or it is force in.
  • Page 22 PHOTO ● Enter into PHOTO, staying on the photo for 3 seconds, will ● Press ENTER button to view selected photo. cause it to preview automatically. ● Press PLAY button to display mode. ● Press LEFT, RIGHT, and ENTER button to operate,Press the down button to close the operating menu.
  • Page 23 MUSIC ● Enter MUSIC mode, staying on the desired MP3 file for 3 ● Press PLAY button to play. seconds, will cause it to preview automatically, press ENTER button to display the wanted MP3 file.  Press Left, Right and ENTER button to operate, press the down button to close the operating menu. ...
  • Page 24 MOVIE ● Enter MOVIE mode, staying on the desired movie file for 3 ● Press ENTER button to play the wanted movie. seconds, will cause it to preview automatically. ● Press PLAY button to play. ● Press Left, Right, and ENTER button to operate, press down button can close the operating menu.
  • Page 25 TEXT ● Enter TEXT mode, staying on the desired file for 3 seconds, ● Press ENTER button to choose the desired file. will cause it to preview automatically. ● Press PLAY button to enter the display mode. ● Press STOP button to stop the display. SDM108 25...
  • Page 26: Menu Operation

    MENU OPERATION ● Press MEMU button to open OSD menu, press again to close the OSD menu. ● Use Left and Right button to choose desire category. ● Move button up and down to choose the function of the category, then press ENTER or PLAY button to open the submenu. SUBMENU OPERATING ●...
  • Page 27: Picture Operation

    PICTURE OPERATION SDM108 27...
  • Page 28: Color Mode

    Picture Mode Personal Color Mode ● Choose display mode, including Standard, Dynamic, ● Color temperature mode select, including Cool, Normal and Soft and personal. Warm. SDM108 28...
  • Page 29: Zoom Mode

    Zoom Mode ● Normal Preserves the content’s original aspect ratio. Since the 4:3 aspect ratio is not large enough to fill the TV’s screen, black bars are added to the left and right of the display image. ● Wide If the source content aspect ratio is 4:3 this setting will expand the display image to fill the screen.
  • Page 30 AUDIO OPRATION SDM108 30...
  • Page 31: Channel (Option)

    Equalizer Personal Channel (Option) ● Equalizer mode includes Standard, Music, Movie, Sports and ● Setting FM channel frequency from 87.50Mhz to 108.00Mhz. Personal. FM Transmitter (Option) On : AVC On. On: Truns On FM Transmitter. Off : AVC Off. Off: Truns Off FM Transmitter. Bluetooth (Option) Bluetooth pairing button (Option) On: Turn on Bluetooth.
  • Page 32: Setup Operation

    SETUP OPERATION Menu Language Transparent ● Changing the On-Screen Menu Language. There are English, ● Setting Transparent mode, including 0%, 25%, 50%, 75% and French and Spanish languages. 100%. Restore Default Software Update (USB) ● Restore its factory default settings. ●...
  • Page 33: Setup Menu

    ADJUST DVD SETUP MENU This chapter describes how to set and how to adjust using the on-screen SETUP menu. ● Press the SETUP button to display the SETUP menu on the display screen. ● Select the main item via the up / down key to select item, the right key will take you into next submenu, the left key is return to parent menu and the enter key is setting the final submenu item in DVD SETUP MENU.
  • Page 34: System Setup

    SYSTEM SETUP ● TV System (NTSC, PAL, AUTO) When the video output is set to PAL or NTSC system, the DVD player will convert the disc content to the selected system if it is different. When the video output is set to AUTO, the DVD player will not perform system conversion. The AUTO mode is only to be used if your TV supports both NTSC and PAL systems.
  • Page 35: Language Setup Menu

    LANGUAGE SETUP MENU LANGUAGE SETUP The LANGUAGE SETUP MENU allows the user to select the OSD Language, Audio Language, Subtitle Language, Menu Language, Divx[R] VOD and Font setup. SDM108 35...
  • Page 36: Video Setup Menu

    VIDEO SETUP MENU ● Brightness To adjust the brightness (black level) of the video output. ● Contrast To adjust the contrast (white level) of the video output. ● Hue To adjust the hue (tint) of the video output. ● Saturation To adjust the saturation (color intensity level) of the video output.
  • Page 37: Other Information

    OTHER INFORMATION GAME PORT INPUT WIRELESS IR HEADPHONE TRANSMITTER ● Connect your Game A/V output to the A/V input jacks. This monitor includes a built in Wireless IR transmitter, for use with ● Press the “SOURCE” button on the remote control to select the Myron &...
  • Page 38: Software Update (Usb)

    Software Update (USB) ● Copy the update file to USB thumb driver.                                                ● Checking for update and choose “yes”.  ● Opening setup menu and select Software Update (USB) item.        ● When the update is finished, the unit will reboot automatically.  ● Restore default after update is finished.  SDM108 38...
  • Page 39: Troubleshooting

    LIMITED ONE-YEAR WARRANTY (NON-TRANSFERABLE) Myron & Davis warrants to the original purchaser a non- transferable warranty to repair or replace, free of charge, the video product(s) in materials and workmanship under normal use and conditions for a period of one (1) year from date of purchase. Limited warranty excludes: ●...
  • Page 40 The Equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
  • Page 41 NOTES SDM108 41...
