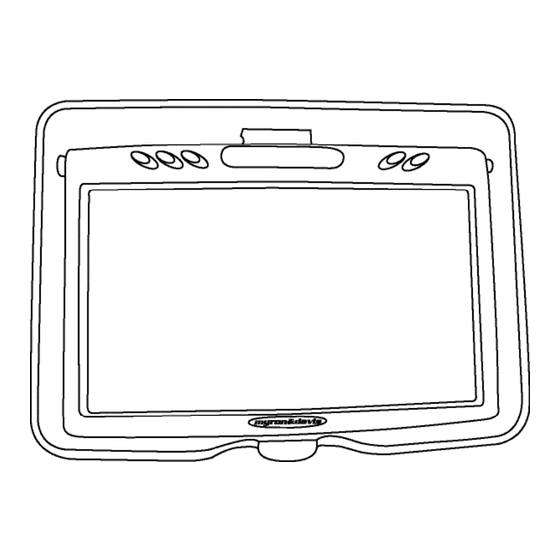

7" active matrix super thin tft-lcd panel

Advertisement

WARNING:
This unit is not intended for installation in the front driver/passenger compartment where it may be seen by the driv-
er. Installation of this unit in any portion of the vehicle which could impair or distract the driver is improper and dan-
gerous. We assume no liability whatsoever for failure to follow the proper installation of this product.
IMPORTANT NOTICE
Before operating the unit, please read these instructions carefully.
Retain the manual for future reference.
You are advised to follow the instructions carefully when operating the unit.
Do not use any chemical solvent, cleaning agents or corrosive detergents to clean dirt off the surface of the screen. By doing so,
you may cause irreversible damage to the surface of the TFT screen. To clean off dirt or fingerprints, we recommend using a soft
damp lens cleaning cloth.
Using spare parts from another manufacturer may cause permanent damage to the unit.
When operating the display unit, avoid touching or pressing the LCD glass panel.
Excessive force may cause irreparable damage to the LCD screen.
Some states restrict the use of screens and television in vehicles.
In the interest of safety, this monitor should never be installed where it will be visible, directly or indirectly, by the operator of the
motor vehicle.
Lock the LCD screen in the fully closed position when it is not in use.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights can drain
the vehicle's battery.
AGG7/ 1
AGG7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Myron & Davis AE22

  • Page 1 WARNING: This unit is not intended for installation in the front driver/passenger compartment where it may be seen by the driv- er. Installation of this unit in any portion of the vehicle which could impair or distract the driver is improper and dan- gerous.
  • Page 2: Main Features

    MAIN FEATURES: 7" Active Matrix Super Thin TFT-LCD Panel Full Function OSD (On Screen Display) Control Full Function Remote Control 2 Composite Video Inputs Built-In Wireless Headphone IR Transmitter User Select 7-Channel Wireless FM Modulator Control Adjustable Viewing Angle SPECIFICATIONS: Display: 7"...
  • Page 3: Standard Package

    OPTIONAL ACCESSORIES: ANT129: 7-Channel Wireless FM Modulator AE21: Single Channel IR Wireless Headphone (For Single Source Application) AE22: Dual Channel IR Wireless Headphone (For Dual Source Application) AE31: Single Channel IR Wireless Headphone(Fits small children and adults) AGG7 AGG7/ 3...
  • Page 4: Monitor Operation

    MONITOR OPERATION POWER Button Press POWER button to turn the monitor ON. LCD screen will display Video 1 or Video 2. Press and hold POWER button will turn the monitor OFF. SOURCE Button Press SOURCE button to switch between Video 1 and Video 2 MENU –...
  • Page 5 Press SOURCE button to switch between Video 1 and Video 2 Press the UP and DOWN buttons to increase or decrease the value of the adjustment item. DIMMER Select this feature dims the badklight for night viewing or low light condition. BRIGHTNESS Controls the intensity of the backlight.
  • Page 6: Remote Control Operation

    REMOTE CONTROL OPERATION: Press the POWER button to turn monitor ON. Press the MENU button to activate the OSD function as shown below. DIMMER BRIGHTNESS CONTRAST COLOR POWER TINT MONITOR MENU FM MOD AUTO ON IR TX RIGHT LEFT RESET Press the UP or DOWN button to select the adjustment item Press the LEFT or RIGHT button to decrease or increase the VIDEO IN...
  • Page 7 Dual Source (DVD Player / Game) - Source 1 audio is transmitted through IR transmitter on the Passenger side monitor (Freq. 2.3/2.8 MHz). Source 2 audio is transmitted through Driver side monitor (Freq. 3.2/3.8 MHz). Select Channel-A (DVD) and Channel-B (GAME/DVD2) on Wireless IR Headphone (model AE22) WIRELESS FM MODULATOR (OPTIONAL) If your video system includes a wireless FM modulator (ANT129), following the instruction below to fine tuning your FM radio to receive the audio through your speakers.
  • Page 8 AGG7 AGG7/ 8...
  • Page 9 Warranty Limited One-Year Warranty (Non-Transferable) Myron & Davis warrants to the original purchaser a non- transferable warranty to repair or replace, free of charge, the video product(s) in materials and workmanship under normal use and conditions for a period of one (1) year from date of purchase. Limited warranty excludes: Labor cost for removal, reinstallation, and trouble shooting of the video product(s).
  • Page 10 MAIN FEATURES: Active Matrix Super Thin TFT – LCD Panel Full Function OSD (On Screen Display) Control Full Function Remote Control2 Composite Video Inputs Built-In Wireless Headphone IR Transmitter User Select 7 – Channel Wireless FM Modulator Control Adjustable Viewing Angle SPECIFICATIONS: Display: 7"...
  • Page 11 ANT129: 7 – Channel Wireless FM Modulator AE21: Single Channel IR Wireless Headphone (For Single Source Application) AE22: Dual Channel IR Wireless Headphone (For Dual Source Application) AE31: Single Channel IR Wireless Headphone (For small children and adults) AHG37/ 2...
  • Page 12 MONITOR OPERATION POWER Button Press POWER button to turn the monitor ON. LCD screen will display Video 1 or Video 2. Press POWER button once after the monitor is ON will toggle between Video 1 and Video 2. Press and hold POWER button will turn the monitor OFF. MENU –...
  • Page 13 Press the MENU button to select the next adjustment item. Press the UP and DOWN buttons to increase or decrease the value of the adjustment item. DIMMER Select this feature dims the badklight for night viewing or low light condition. BRIGHTNESS Controls the intensity of the backlight.
  • Page 14 REMOTE CONTROL OPERATION: Press the POWER button to turn monitor ON. Press the MENU button to activate the OSD function as shown below. DIMMER BRIGHTNESS CONTRAST COLOR POWER TINT INVERT MONITOR MENU AUTO ON/OFF FM MODE RESET LEFT RIGHT VIDEO IN DOWN Press the UP or DOWN button to select the adjustment item Press the LEFT or RIGHT button to decrease or increase the value of the adjustment item.
  • Page 15 Dual Source (DVD Player / Game) – Source 1 audio is transmitted through IR transmitter on the Passenger side monitor (Freq. 2.3/2.8 MHz). Source 2 audio is transmitted through Driver side monitor (Freq. 3.2/3.8 MHz). Select Channel-A (2.3/2.8 MHz) and Channel-B (3.2/3.8 MHz) on Wireless IR Headphone (model AE22) WIRELESS FM MODULATOR Select FM MODE with remote control or MENU button on the monitor.
  • Page 16 Warranty Limited One-Year Warranty (Non-Transferable) Myron & Davis warrants to the original purchaser a non- transferable warranty to repair or replace, free of charge, the video product(s) in materials and workmanship under normal use and conditions for a period of one (1) year from date of purchase. Limited warranty excludes: Labor cost for removal, reinstallation, and trouble shooting of the video product(s).
