Connect Squeezebox Receiver

For this step, you'll need:
• Squeezebox Receiver
• AC adapter for Squeezebox Receiver
• Plug adapter for your region
• RCA stereo cables or your own optical or coaxial S/PDIF cable
• Your own ethernet cable (for
Next, you should connect Squeezebox Receiver to your stereo or powered
speakers, and if you're using a wired network connection (either a hybrid or
bridged installation), you should connect the ethernet cable as well.
1. Connect your stereo or powered speakers to the Receiver, using the
supplied color-coded, gold-plated RCA cables, which can be used
with nearly any stereo or powered speaker system. You can also
connect the Receiver to a digital input via the S/PDIF connector,
using your own optical or coaxial cable.
2. Optional:
network switch or jack.
3. Fit the plug adapter onto the AC adapter of the Receiver, making sure
the plug adapter snaps firmly into place.
4. Plug the AC adapter into an electrical outlet, and then insert the
barrel plug into the Receiver. The button on the front of the Receiver
should blink red, indicating that the Receiver is powered up, but is
not yet programmed for your network.

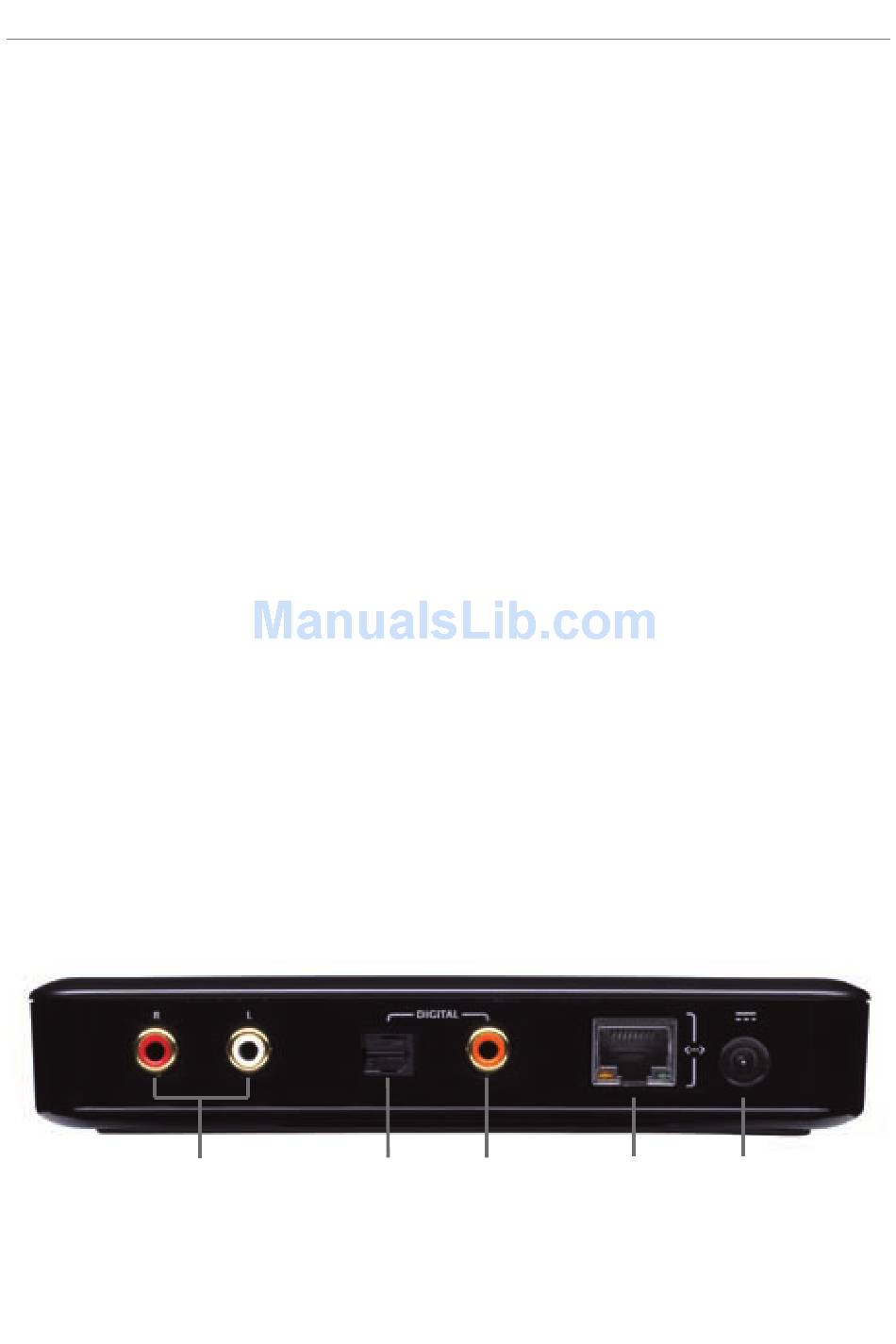

Analog
Audio Out
(RCA)
Connect your ethernet cable to the Receiver and your
Digital
Optical
Output
"hybrid" and "bridged" installations)
Digital
Ethernet
Coax
Output
