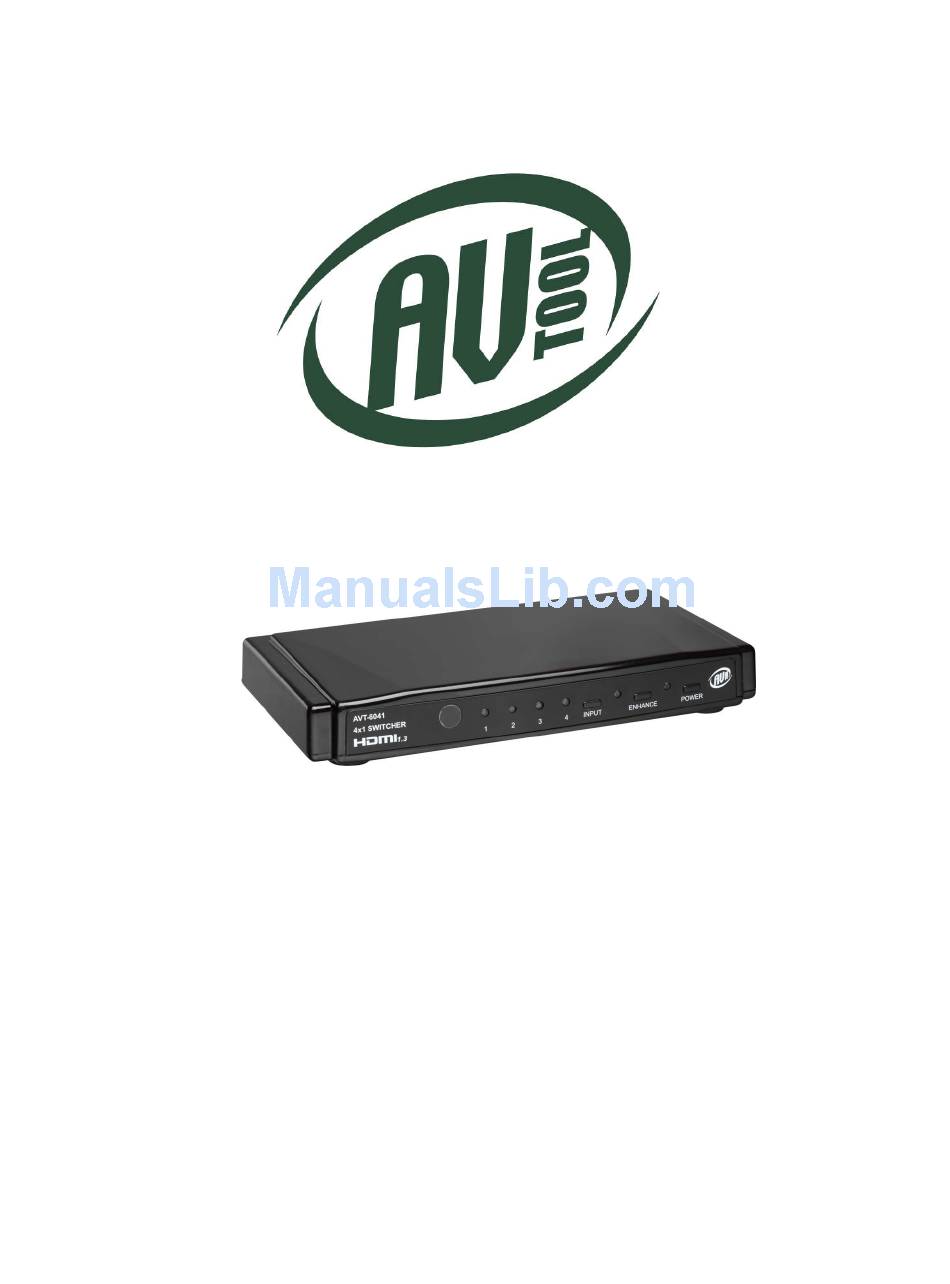

Page 1: Instruction Manual
Instruction Manual AVT-6041 HDMI 4x1 Switcher... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
Thanks for purchasing this product from the AV Toolbox Division of TV One. The AVT-6041 HDMI 4x1 Switcher allows selection of any of 4 inputs for display on an HDMI compliant display device. This version 1.3 HDMI device supports all standard High Definition Television formats, PC formats from 640x480 through 1920x1200 as well as embedded HD-Audio, including Dolby®... - Page 5 There are many factors affecting the quality of results when switching HDMI type signals. Some basic precautions will ensure the best possible performance from your AVT-6041 4x1 HDMI Switcher. Output display device – The quality of the output signal will depend largely upon the type and quality of the HDMI display device used.
-
Page 6: Specifications
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: 1x AVT-6041 4x1 HDMI Switcher 1x 100~240VAC to 5VDC Power Adapter 1x User Manual Note: Please retain the original packing material should the need ever arise to return the unit. -
Page 7: Operating The Unit
60Hz to 5VDC. Connect the DC Output Cable from the Power Adapter to the back of the unit and then plug the Power Adapter into an AC Receptacle. You will be able to turn the AVT-6041 via either the front panel power switch or the power switch on the remote control. -
Page 8: Troubleshooting
In addition, HDCP encryption requires additional processing which also is dependent on the equipment you have connected to the sources and destination device. If you experience problems using the AVT-6041 HDMI Switcher, you should attempt to determine what is wrong by attaching each of the source devices –... -
Page 9: 8.0 Regulatory Compliance
8.0 REGULATORY COMPLIANCE The AVT-6041 has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supplies have been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. - Page 10 AV Toolbox USA AV Toolbox Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 800-235-3280 Tel +44 (0)1843 873307 Tel 859-647-1077 Fax +44 (0)1843 873312 Fax 859-282-8225 sales.europe@avtoolbox.com sales@avtoobox.com www.avtoolbox.com www.avtoolbox.com AV Toolbox Latin America AV Toolbox Mercosur 6991 NW 82nd Avenue #8...
