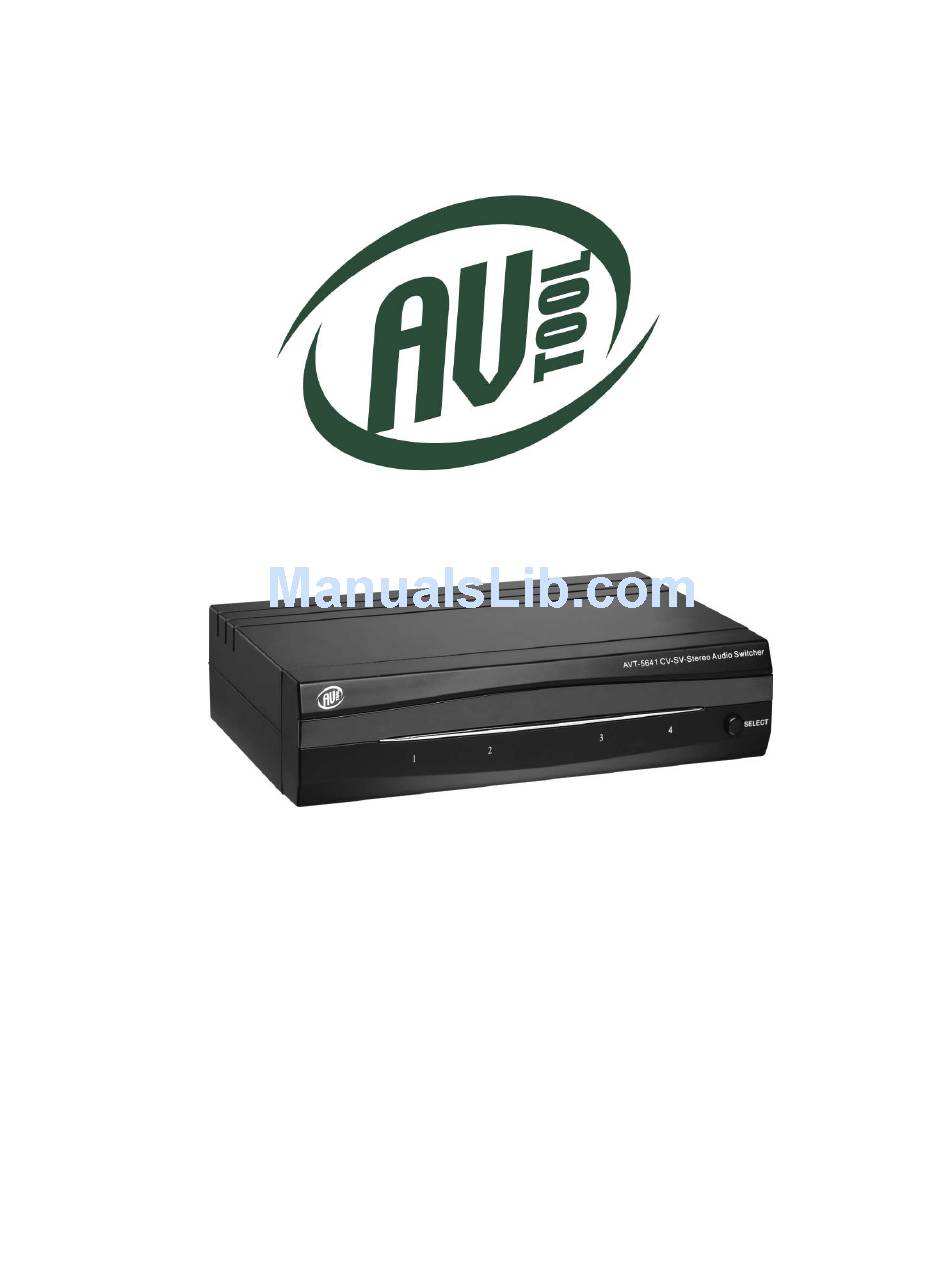

Page 1: Instruction Manual
Instruction Manual AVT-5641 Composite, S-Video And Stereo Audio Switcher... -
Page 3: Table Of Contents
Table Of Contents Introduction Specifications Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this AVT-5641 4x1 Composite, S-Video and Stereo Audio Switcher product from AV Toolbox. The AVT- 5641 is designed to provide high quality switching of up to four Video inputs with Stereo Audio. The unit will accept S-Video or Composite Video plus analog Stereo Audio. -
Page 5: Specifications
Limited Warranty 1 Year, Parts and Labor Power Requirements External AC Adaptor 9VDC/100ma US, UK or EURO AC Plug Regulatory Approvals AVT-5641 FCC, CE AC Power Adaptor UL, CE, CUL Accessories Included 1x AC Power Adapter 1x Infrared Remote Control... -
Page 6: Package Contents
Please study the drawings below and become familiar with the inputs, outputs and control locations on the AVT-5641. AVT-5641 Front Panel The front panel of the AVT-5641 contains the product’s control switches. The operation of the switches and meaning of the LED indications will be explained below. - Page 7 AC power source. 5.1 Default Operation When the power is first connected to the AVT-5641, the unit will default to input Number One (1) and the LED above the “1” label will light. If you have not connected a signal to input number 1, no output will be present.
-
Page 8: Troubleshooting
First, check that power is present and then check for faulty cables. Make sure the AVT-5641 is connected to a known good monitor and the desired inputs are present. If some input images are acceptable but others are not, you should suspect faulty cables. -
Page 9: Regulatory Compliance
8.0 REGULATORY COMPLIANCE The AVT-5641 has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supplies have been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. - Page 10 AV Toolbox USA AV Toolbox Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 800-235-3280 Tel +44 (0)1843 873307 Tel 859-647-1077 Fax +44 (0)1843 873312 Fax 859-282-8225 sales.europe@avtoolbox.com sales@avtoobox.com www.avtoolbox.com www.avtoolbox.com AV Toolbox Latin America AV Toolbox Mercosur 6991 NW 82nd Avenue #8...
