IPC3500 Series
Hardware Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC3500A-D and is the answer not in the manual?

Questions and answers

Summary of Contents for UDP Technology IPC3500A-D

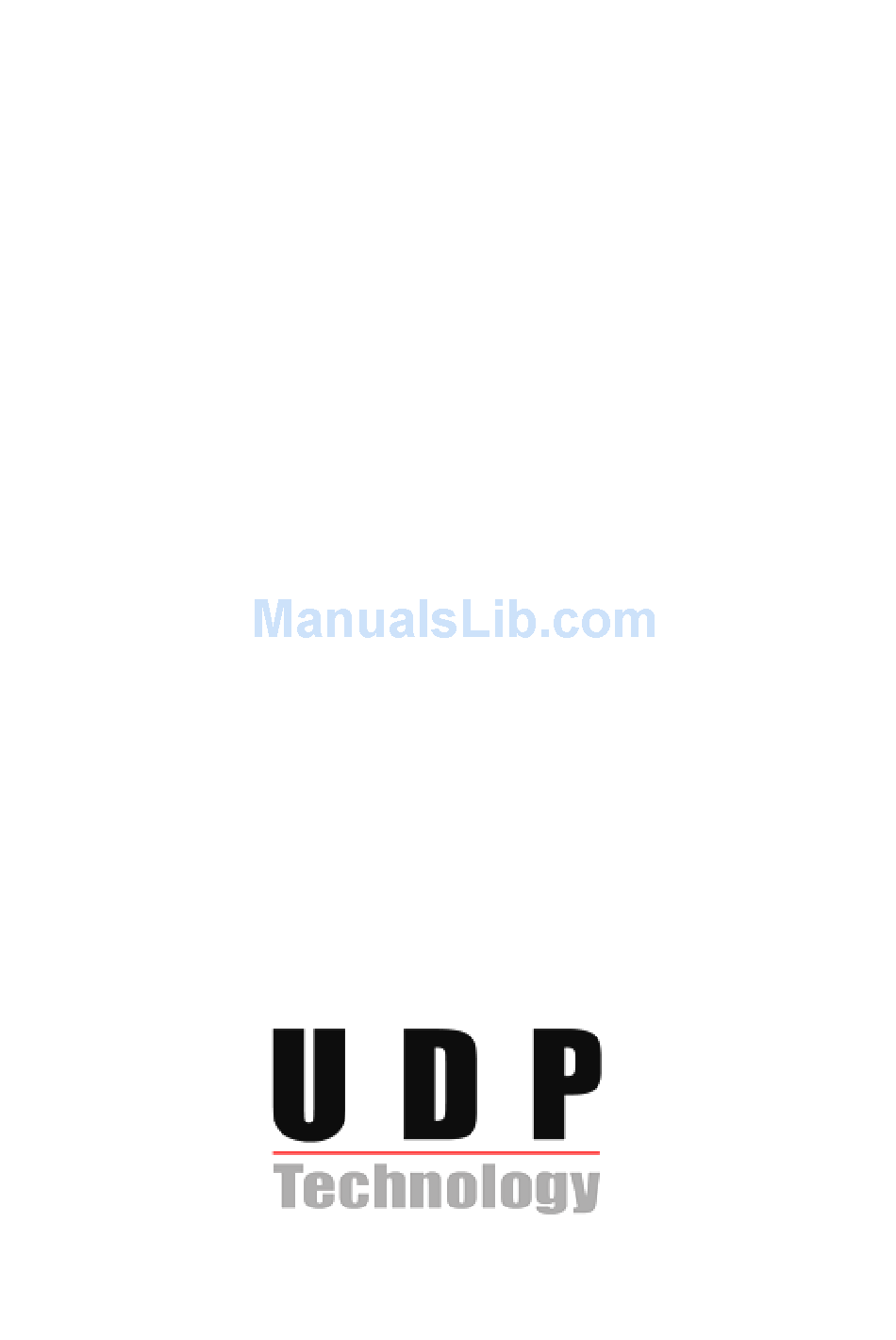

  • Page 1 IPC3500 Series Hardware Manual...

  • Page 2: Table Of Contents

    IPC 3500 Hardware Manual Table of Contents 1. INTRODUCTION ........................3 2. Product Description ........................ 4 2.1. Function Specifications ....................4 3. INSTALLATION & CONFIGURATION ................6 3.1. Package Contents ......................6 3.2. Part List ........................... 6 3.3. Basic Connection ......................7 3.4.

  • Page 3: Introduction

    Camera • Sony 1/3” Super HAD CCD & High Quality SS-HQ1 Full Kit Chip Set • True Day / Night (ICR) (IPC3500A-D, IPC3501A-D only) • AGC / EE, AI / BLC / FLK / Gamma / Mirror Function • Improvement of color rolling suppression Additional Features •...

  • Page 4: Product Description

    IPC3500 specification is shown as the following table Model Classification IPC3500A-D : Day / Night Sony 1/3” Super HAD CCD, 540 TVL, 12 VDC IPC3500A-IR : IR(Built in 12PCS LED), 1/3” Super HAD CCD, 540 TVL, 12 VDC IPC3500A : Sony 1/3” Super HAD CCD, 540 TVL, 12 VDC (Standard Model)
  • Page 5 IPC3500 Hardware Manual Camera IPC3500A-D IPC3500A IPC3500A-IR Day / Night Available (ICR) N / A Image Sensor Sony 1/3” Super HAD CCD NTSC – 768(H) x 494 (V) / PAL – 752 (H) x 582(V) Effective Pixels TV System NTSC / PAL...

  • Page 6: Installation & Configuration

    IPC3500 Hardware Manual 3. INSTALLATION & CONFIGURATION 3.1. Package Contents The Package contains the following. Please make sure all listed items are included in the box. IPC3500.-------------------------------------------------------------------------------- 1 LAN Cable (Cross Type 1.5m) ------------------------------------------------------ 1 Screw ------------------------------------------------------------------------------------ 5 Driver for adjusting DC Level ------------------------------------------------------- 1 3.2.

  • Page 7: Basic Connection

    IPC3500 Hardware Manual 3.3. Basic Connection Alarm Input Sesor Siren Alarm Output Flashing Light DC 12V Power supply MIC4DVR Ethernet Network DC 12V Power supply Amp Speaker DC 12V Power supply Client PC Analog Monitor Figure 2. Basic Installation Configuration UDP Co., Ltd.

  • Page 8: Functions

    IPC3500 Hardware Manual 3.4. Functions Figure 3. External connectors of IPC3500 UDP Co., Ltd.
  • Page 9 IPC3500 Hardware Manual ON OTA X K HS 8 2 Figure 4. Internal view of IPC3500 ① 4 pin connector for audio In / Out IPC3500 have a mono audio input and a mono audio output. Aout Figure 5. 4 pin connector for audio in and out. ②...
  • Page 10 IPC3500 Hardware Manual Do not use voltage and relay type sensor together. Figure 7. Voltage Type Digital Input Connection Figure 8. Relay Type Digital Input Connection IPC3500 provides 1 channel D/O. It can be connected to either a voltage type sensor or a relay type sensor as following Figure 9.
  • Page 11 IPC3500 Hardware Manual <RS-232C Application> TX GND Figure 10. RS-232C Connection RS-485 The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following Figure 11. <RS-485 Application> TRX+(RX+) TRX-(RX-) PTZ Device Figure 11. RS-485 Connection ③ Reset Switch (Reset) Reset switch is used for restarting IPC3500 or resetting IPC3500 to Factory Default (FD). Refer to ‘4.1.

  • Page 12: Serial Number / Mac Address

    IPC3500 Hardware Manual Video Loop Out It is a loop back video output port. DIP Switch for Camera Modes BLC FLK r=1 M IR R O R OFF OFF G A M M A OFF Figure 14. DIP switch for camera mode AGC(Automatic Gain Control) ON/OFF switch The automatic gain function automatically adjusts picture in accordance with the brightness of subject.

  • Page 13: Operation Description

    IPC3500 Hardware Manual 4. Operation Description 4.1. Factory Default Settings Factory default settings are as follows: • IP address: 192.168.xx.yy (refer to 2.3 Serial Number / MAC Address) • Mask: 255.255.0.0 • Gateway: 192.168.0.1 • User ID: root • Password: pass MAC address = 00-13-23-01-23-45 →...

  • Page 14: Electrical Characteristics

    IPC3500 Hardware Manual 5. Electrical Characteristics 5.1. Operating conditions Parameters Typical Units Audio input range 0.01 Vp-p Ambient Operating Temperature ºC Ambient Operating Humidity Table 1. Operating conditions 5.2. Power consumption (Max. ±5%) IPC3500A IPC3500A-IR Input Voltage 12 V Current 500 mA 640 mA Consumption...

  • Page 15: Dimensions

    IPC3500 Hardware Manual 6. DIMENSIONS <Surface mounting> UDP Co., Ltd.
  • Page 16 IPC3500 Hardware Manual <Flush mounting> UDP Co., Ltd.

  • Page 17: Revision History

    IPC3500 Hardware Manual Revision history Rev. Date Description 2007-05-29 Created. 2007-06-05 Correct Figure 2. Basic Installation Configuration 2008-10-14 Power consumption is changed 2009-05-04 Model IPC3101A, IPC3101A-D, and IPC3101A-IR deleted. Power consumption modified per model and mounting type (flush and surface) Weight modified per model and mounting type (flush and surface) Dimension modified Dimension drawing for flush mounting added newly.
