N6223 NVR
IMPORTANT SAFETY INSTRUCTIONS
DO NOT DISCARD, READ BEFORE OPERATING
Please read the safety precautions carefully before
using this product. Ensure that you use the product
correctly according to the procedures described in
these instructions.
The following safety precautions are intended to
instruct you in the safe and correct operation of the
product and its accessories to prevent injuries or damage
to yourself, other persons, and property. Please read and ensure that you understand them before you
proceed to the other sections of these instructions.
• Do not operate this device in a wet environment.
• Refer servicing to qualified service personnel only.
• Please read the Operating Manual carefully before operating. Follow all operating and other instructions
carefully.
• This device should only be operated with the accompanying power adapter.
• Do not use this product near heat sources such as radiators, air ducts, areas subject to direct, intense
sunlight, or other products that produce heat.
• Do not use this product near devices that produce extreme magnetics fields.
Disclaimer
• While every effort has been made to ensure that the information contained in these instructions is
accurate and complete, no liability can be accepted for any errors or omissions. SVSi reserves the right
to change the specifications of the hardware and software described herein at any time without prior
notice.
• SVSi makes no warranties for damages resulting from corrupted or lost data due to mistaken operation
or malfunction of the SVSi hardware, software, or accessories.
Product Overview

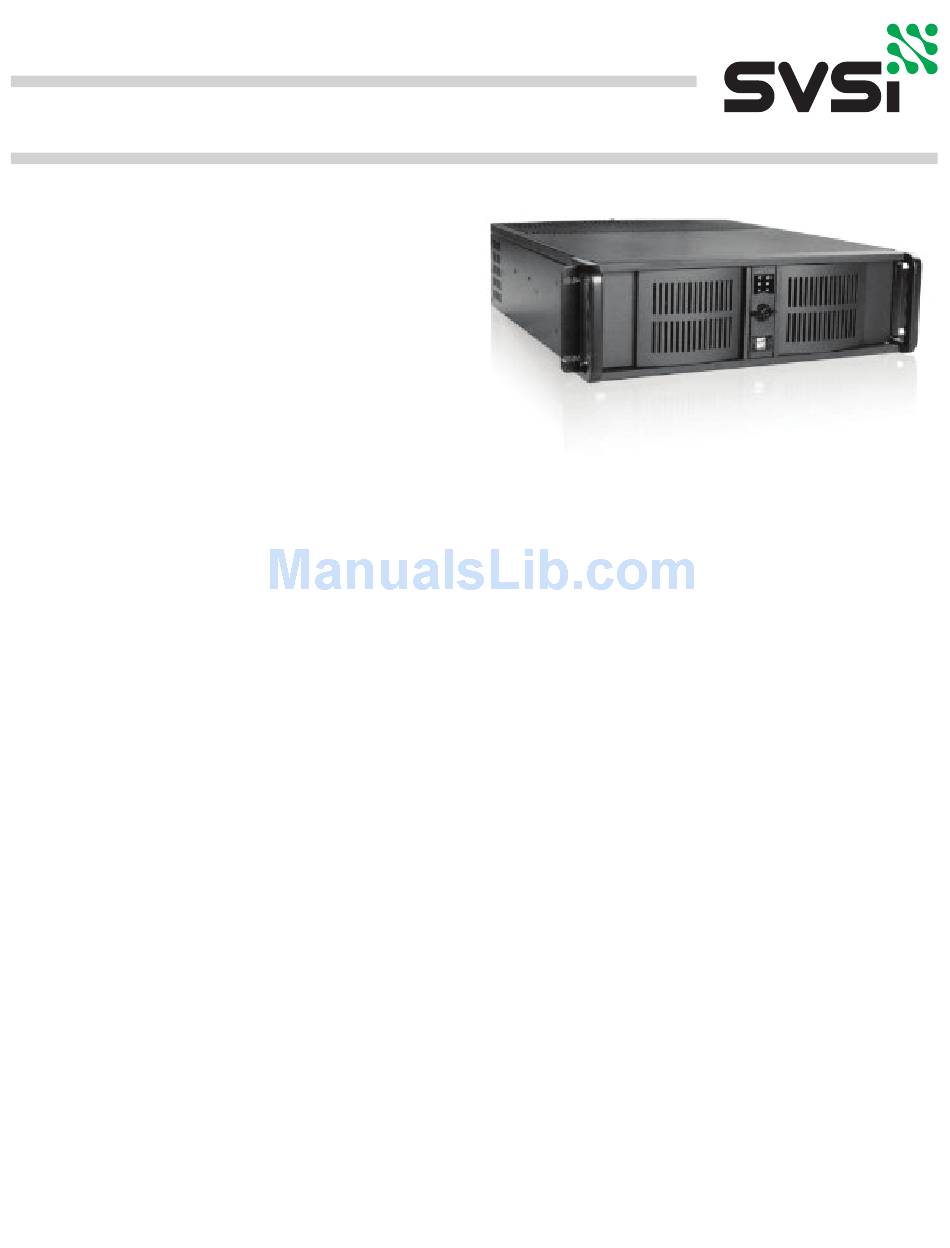

The SVSi N6223 is a networked video recorder capable of recording up to 80 hours of high-resolution, HD
content over four Ethernet LAN connections. This rack-mount DVR is compatible with all SVSi
video-over-IP products and attaches to the video network at any point to record up to 80-hrs of 1080p
video. Each video stream is recorded and played back at its original resolution. The N6223 acts as a
receiver during recording and as a transmitter during playback. The N6223's 3RU form-factor is stackable
for a high density of recorded video streams in a small footprint.
USER MANUAL
Advertisement
Table of Contents
Related Manuals for SVSi N6223
Summary of Contents for SVSi N6223
- Page 1 SVSi hardware, software, or accessories. Product Overview The SVSi N6223 is a networked video recorder capable of recording up to 80 hours of high-resolution, HD content over four Ethernet LAN connections. This rack-mount DVR is compatible with all SVSi video-over-IP products and attaches to the video network at any point to record up to 80-hrs of 1080p video.
-
Page 2: Installation Instructions
Attach the NVR to the network by connecting up to four Ethernet cables to the RJ-45 ports on the back of the NVR. If the application is simply using the N6223 for enhanced recording time, then only a single network connection is required for each play/record head that will be utilized. If utilized as four NVR’s then four network connections will be required. - Page 3 While the four NVR heads require individual IP addresses for playback and recording purposes, overall system management can be done by utilizing any of the four IP addresses. You can enter any one of the NVR’s IP addresses into a web browser (or click the button with its IP address on the settings page pictured below) to access recordings and other features covered later in this manual for all four recording/playback heads.
- Page 4 Recording Sources The N6223 can record and playback 2x N-1000 stream, 8x N-2000 streams (in sync), or 40x N-3000 streams (N-3000 available late 2013) per playback/record head. Transport controls are available on the DVR window of Netlite. To start a recording of a source: 1.
- Page 5 3. Enter a text description of the file to be recorded. This has a maximum character length of 255 characters. No Special Characters other than dot (.) and dash (-) are allowed. 4. Enter duration (in minutes) for the recording to last. 5.
- Page 6 To convert a recorded file: 1. Click on the DVR tab of Netlite. 2. Select any of the DVR’s in the N6223 3. Select the file you wish to convert to MPEG from the list. 4. Click the Convert to MPEG button.* 5.
-
Page 7: Specifications
Distribution | Switching | Recording | Windowing | Wall Processing | Control 360B Quality Circle Suite 200, Huntsville, AL 35806 • 256.461.7143 • www.svsiav.com © Southern Vision Systems, Inc. SVSi and voLANte are trademarks of Southern Vision Systems, Inc. in the United States and other countries. Made in the U.S.A 800DOCN6223MNREV1.1...
