  • Page 1: User Manual

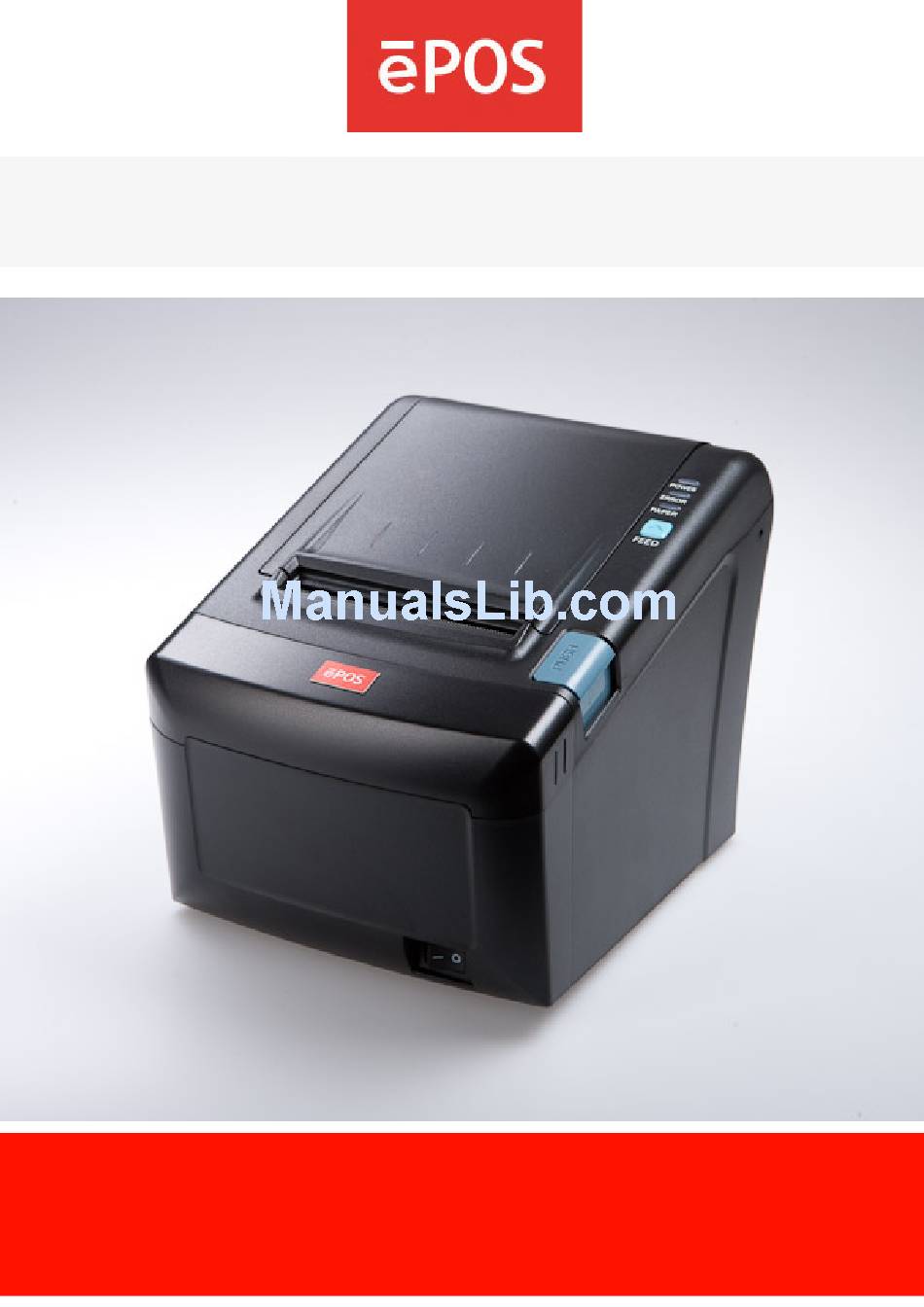

    USER MANUAL ePOS PRINTER T-12 www.eposcom.ru www.eposcom.ru...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Parts Identifications 2. Setting up the printer 2.1 Unpacking 2.2 Connecting the cables 2.3 Loading the paper 2.4 Dip switch setting 3. Control panel and other functions 3.1 Control panel 3.2 Error Indicator 4. Self Test 5.

  • Page 3: Parts Identifications

    1. Parts Identifications PRINTER COVER Open this cover to load or replace paper. CONTROL PANEL Features LED indicators to indicate printer status and switches to operate the printer. COVER OPEN PUSH POWER SWITCH BUTTON Used to turn on/off Push down this button to power to the printer.
  • Page 4 INTERFACE CONNECTOR PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR INTERFACE CONNECTOR (USB) www.eposcom.ru...

  • Page 5: Setting Up The Printer

    2. Setting Up the Printer 2-1. Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. The Printer Power Adaptor Interface Cable www.eposcom.ru...

  • Page 6: Connecting The Cables

    2-2. Connecting the Cables All cables connect to the connector panel on the back of the printer which is shown below: INTERFACE CONNECTOR POWER CONNECTOR For connection of the AC adapter. For connection to a INTERFACE CONNECTOR (USB) Never unplug the AC adapter while host computer.

  • Page 7: Interface Connector

    2-2-1. Interface Connector > - USB Interface SIGNAL DESCRIPTION DATA- Printer transmit data line DATA+ Printer transmit data line System Ground - Serial Interface SIGNAL DESCRIPTION Output Printer transmit data line RS-232C level Input Printer receive data line RS-232C level 4, 20 Output Printer handshake to host line RS-232C level...

  • Page 8: Centronics Parallel Interface

    - Centronics Parallel Interface SIGNAL DESCRIPTION STROBE- Input Synchronize signal Data received DATA0~7 Input/Output Data bit Transmitted 0~7 ACK- Output Data receiving completed. BUSY Output Impossible to print of data receiving. Output Paper empty SELECT Output Printer status for ON/OFF line AUTO FEED- Input Paper auto feed signal...

  • Page 9: Loading The Paper

    2-2-2. Cash Drawer Connector The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A for 510ms or less when not printing. SIGNAL DESCRIPTION Signal GND Drawer kick-out drive signal 1 Output Drawer open/close signal...
  • Page 10 3. Remove the used paper roll core if there is one inside. 4. Insert new paper roll as shown. 5. Note the correct direction that the paper comes off the roll: 6. Pull out a small amount of paper as shown. Then, close the cover. www.eposcom.ru...

  • Page 11: Dip Switch Setting

    7. Tear off the paper as shown. 2-4. DIP SWITCH SETTING The printer is set up at the factory to be appropriate for almost all users. It does, however, offer some settings for users with special requirements. It has DIP switches that allow you to change communication settings, such as handshaking and parity check, as well as print density.
  • Page 12 2-4-1. Serial Interface Specification DIP Switch Setting (Standard) FUNCTION Hexadecimal HEXDUMP NORMAL Cut Mode Full Cut Partial Cut Paper Low Mode Paper Low Detect Do not detect Baud rate selection FUNCTION SW-3 SW-4 Low Power Normal Normal Dark Parallel Interface FUNCTION Bi-direction Mode Disabled...
  • Page 13 DIP SWITCH COVER DIP SWITCH 3. Set the switches using a pointed tool, such as tweezers or a small screwdriver. 4. Replace the DIP switch cover. The new settings take effect when you turn on the printer. ☞ CAUTION: When the paper cutter is jammed, the top cover might be stuck closed. In this case, repeat power on and off several times.
  • Page 14 3. Turn screw with a screwdriver until paper is released from the cutter. www.eposcom.ru...

  • Page 15: Control Panel And Other Functions

    3. Control panel and other functions. 3-1. Control panel You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights let you to monitor the printer’ s status. Control Panel POWER ERROR PAPER...

  • Page 16: Self Test

    4. Self Test The self-test lets you know if your printer is operating properly. It checks the control circuits, printer mechanisms, print quality, ROM version and DIP switch settings. This test is independent of any other equipment or software. Running the self test 1.

  • Page 17: Specifications 1

    6. Specifications Important! When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A. Be careful about installing the printer in an area where there is electrical noise. Take the appropriate measure to protect against electrostatic AC line noise, etc.
  • Page 18 (9) Overall dimensions www.eposcom.ru...

  • Page 19: Auto Cutter Specifications

    6-2. Auto Cutter Specifications (1) Cutting Frequency Max. 30 cuts per minute (2) Thickness of paper 0.065 ~ 0.1mm (3) Cutter Life 1.5 million cuts (if the paper thickness is between 65 and 80µm) 6-3. Interface RS232 Serial Interface, Centronics Parallel Interface(IEEE1284), USB Interface, Ethernet Interface(10Mbps) 6-4.

  • Page 20: Environmental Requirements

    6-5. Environmental Requirements (1)Operating Temperature 5°C to 40°C Humidity 10% to 90% RH (without condensation) (2)Transport/Storage (except paper) Temperature -20°C to 60°C Humidity 10% to 90% RH (without condensation) 6-6. Reliability (1)MCBF 50 million lines (based on an average printing rate of 12.5% with paper thickness in the range 65µm to 75µm) 35 million lines (based on an average printing rate of 12.5% with paper thickness in the range 76µm to 150µm)

  • Page 21: Command List

    7. Command List Command Function REMARKS Horizontal tab Print and line feed Print and carriage return Print and return to standard mode(in page mode) Cancel print data in page mode DLE EOT Real-time status transmission DLE ENQ Real-time request to printer DLE DC4 Generate pulse at real-time ESC FF...
  • Page 22 Command Function REMARKS GS $ Set absolute vertical print position in page mode GS * Define downloaded bit image GS / Print downloaded bit image GS B Turn white/black reverse printing mode on/off GS H Select printing position of HRI characters GS I Transmit printer ID GS L...
