- Page 1 Infrared Digital Scouting Camera User’s Manual Scouting Camera SG560X-12mHD...
-
Page 2: Table Of Contents
Content 1 Instruction..............1 1.1 Camera Body Interfaces ........1 1.2 General Description ........2 1.3 Application............3 1.4 Shooting Information Display ......3 1.5 Cautions ............4 2 Quick Start Guide ..........6 2.1 Power Supply ..........6 2.2 Insert the SD Card.......... 7 2.3 Enter into Setup Mode ........ -
Page 3: Instruction

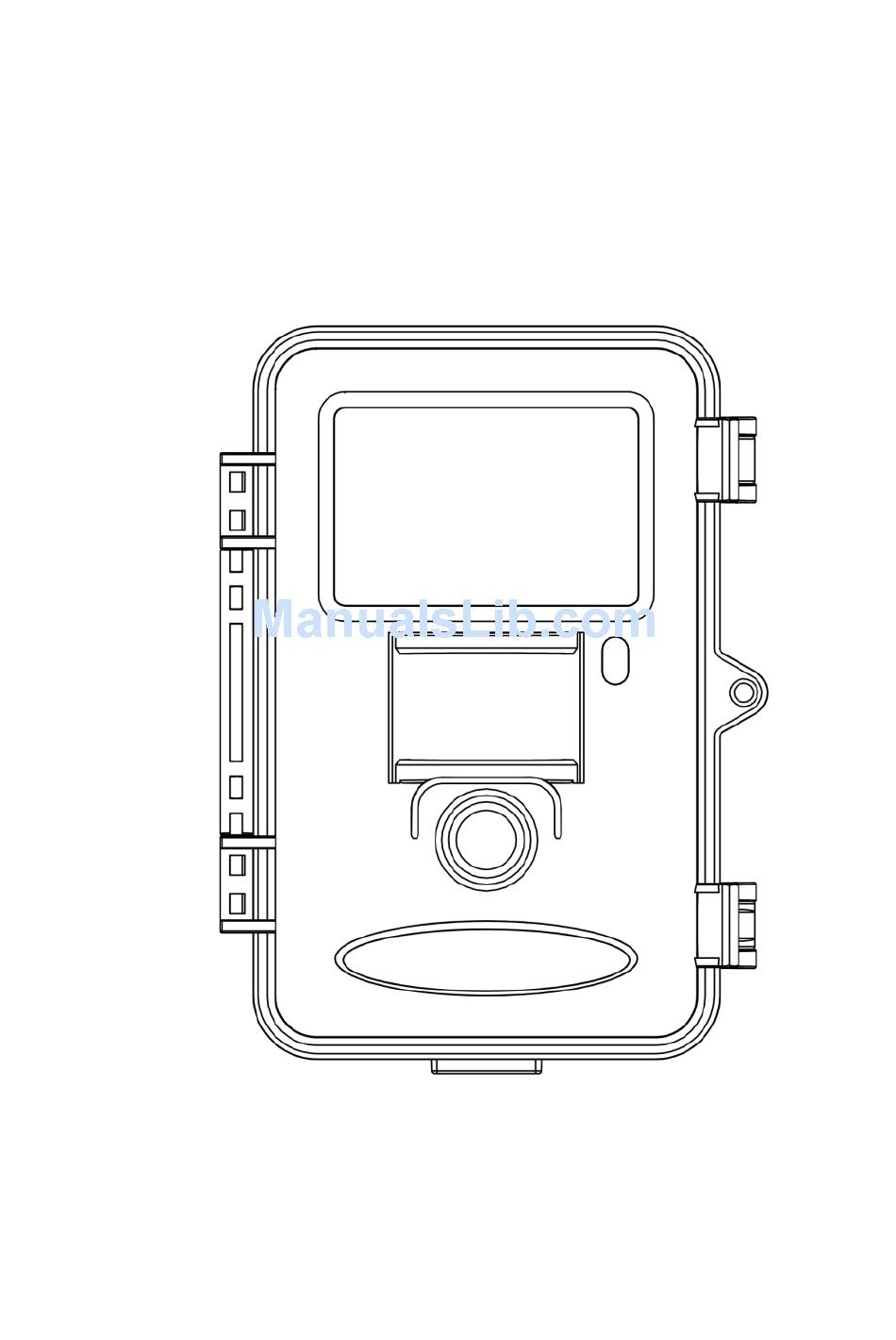

SG560X-12mHD 1 Instruction 1 Instruction 1.1 Camera Body Interfaces Page 1... -
Page 4: General Description
SG560X-12mHD 1 Instruction 1.2 General Description This camera is a surveillance device working automatically with dual light: infrared LEDs and incandescent flash. It can be triggered by any movement of human (or animal) in a certain region of interested (ROI) monitored by a highly sensitive Passive Infra-Red (PIR) motion sensor，and then... -
Page 5: Application
SG560X-12mHD 1 Instruction Pictures or videos can be taken manually by pressing on the operation panel. 1.3 Application This camera can be used as an automatic surveillance device for guarding and recording unexpected intrusions to homes, shops, schools, depots, offices, taxies, worksites etc. It can also be used as trail camera for hunting or monitoring animals by recording the traces of wild animals. -
Page 6: Cautions
SG560X-12mHD 1 Instruction Key notes: “MENU” : to enter the program menu in preview mode; “▲”“▼”“◄”“►”: for parameter settings ; “OK”: to save parameter settings and play videos; “ ”: to exchange between playback mode and preview mode; “DEL”: to delete an image or video;... - Page 7 SG560X-12mHD 1 Instruction card function is as a removable disk. ★In TEST mode, the camera will shut down automatically after 3 minutes if no operation is done. Please turn on the power again if you want to continue to work with the camera.
-
Page 8: Quick Start Guide
SG560X-12mHD 2 Quick Start Guide 2 Quick Start Guide 2.1 Power Supply To supply power for the camera, four or eight size AA batteries are needed. 1. High-density and high-performance alkaline batteries (Recommended) 2. Rechargeable alkaline batteries 3. Rechargeable NiMH batteries When in a low-battery state, the camera will be automatically shut down. -
Page 9: Insert The Sd Card
SG560X-12mHD 2 Quick Start Guide 2.2 Insert the SD Card Insert a new SD card into the card slot. Please note that the SD card is on the “write” (not locked) position otherwise the camera will not function correctly. 2.3 Enter into Setup Mode... -
Page 10: View Images Or Videos
SG560X-12mHD 2 Quick Start Guide 2.3.4 View Images or Videos Press to view images or videos, the latest image or video will be shown on the LCD screen. Press “▲” or “▼” to view the previous or next image or video and press OK to see a video. -
Page 11: Item Settings
SG560X-12mHD 3 Item Settings 3 Item Settings 3.1 Camera Menu To view the camera settings menu, press MENU in SETUP mode. Use “▲” or “▼” key to select the sub-menu, use “◄” or “►” key to select the different options. Press “OK” to save the settings. - Page 12 SG560X-12mHD 3 Item Settings Choose duration of recording video. This parameter is effective and can be adjusted only when the device in the video mode under ON mode. Its value Video extends from 5 to 60 seconds with a step Length of one second.
- Page 13 SG560X-12mHD 3 Item Settings interference, and to use lower sensitivity for outdoor or environment with lots of interference like hot wind, smoke, near window etc. Furthermore, the sensitivity of the PIR is strongly related to the temperature. Higher temperature leads to lower sensitivity.
-
Page 14: Default Setting
SG560X-12mHD 3 Item Settings 3.2 Default Setting Setting Default Options Submenu Items Camera Video Photo Mode Pic+Video Format Enter Yes, No Photo Size 12MP Video Size 1280x720 640x480 Set Clock Enter Adjust Clock Photo 2 Photos 1 Photo Burst 3 Photos... -
Page 15: Power Off
SG560X-12mHD 3 Item Settings 3.3 Power Off Switch the camera to OFF position to power off the camera. Please note that even in OFF mode, the camera still consumes certain power at μA level. Therefore, please remove the battery if the camera will not be used for a long time. -
Page 16: Mounting The Camera
SG560X-12mHD 4 Mounting the camera 4 Mounting the Camera When use the camera in outdoor environment, such as hunting or monitoring the living habits of wild animals, you need to mount the device on a certain place properly. It is recommended to mount the... -
Page 17: Pir Detection Zone
SG560X-12mHD 5 PIR Detection Zone 5 PIR Detection Zone This camera has a new design of PIR and the new PIR is patented. The new patented PIR’s detection range can reach to 85ft in good environments. Following picture shows the compared detection zone between normal PIR and the new patented PIR. -
Page 18: Technical Specifications
SG560X-12mHD 6 Technical Specifications 6 Technical Specifications 5MP Color CMOS, Image Sensor 8MP and 12MP Interpolation F/NO=2.2 Lens FOV(Field of View)=60° PIR detection range 85ft Display Screen 2.0” LCD Memory Card From 8 MB to 32 GB 12MP=4032×3024 Picture Resolution 8MP = 3264 ×2448... -
Page 19: Parts List
SG560K-12mHD 7 Parts List 7 Parts List Part Name Quantity Digital Camera USB Cable Belt User Manual Warranty Card Version 1.2 Page 17...
