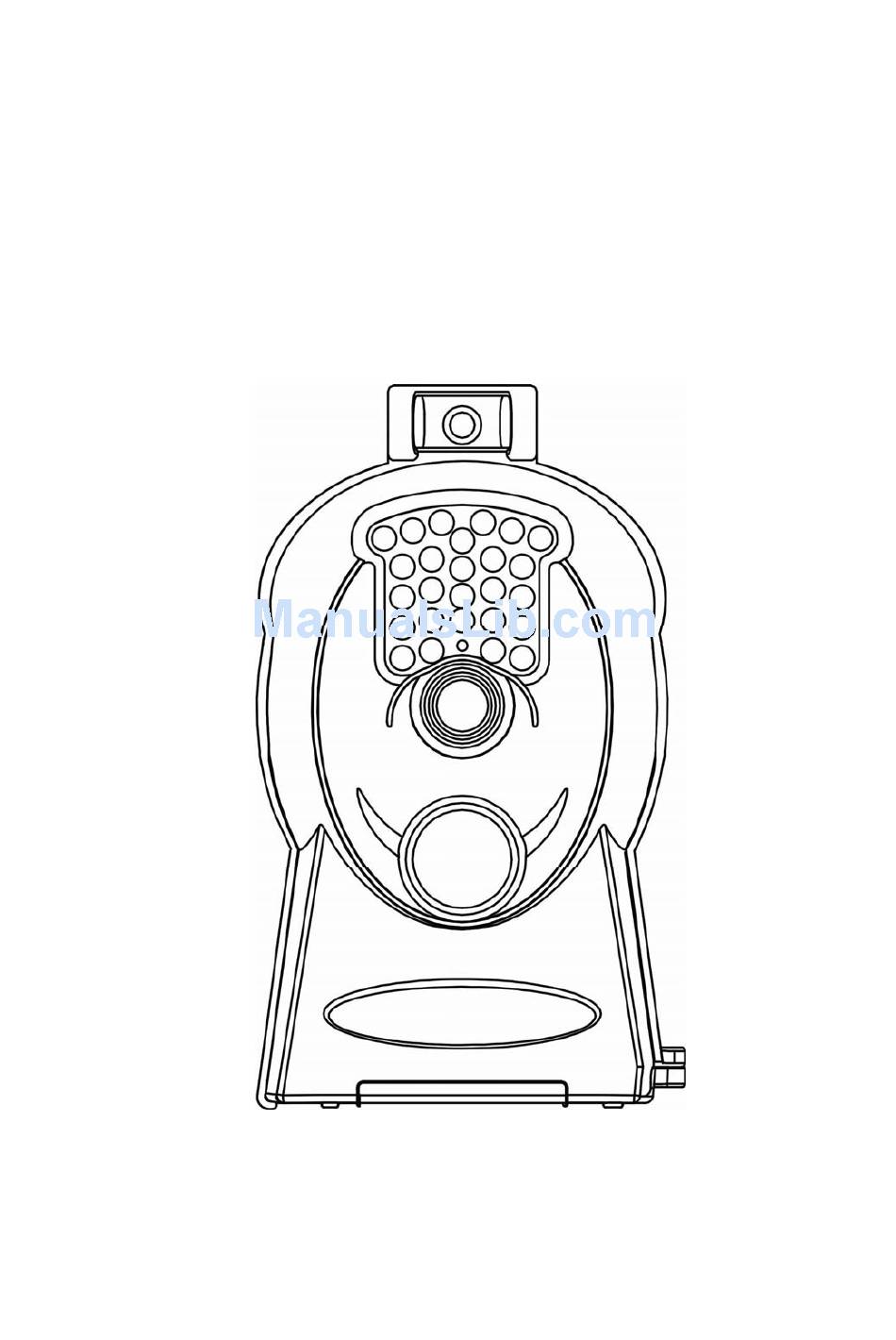

- Page 1 Infrared Digital Scouting Camera User Manual SG570-12mHD...
-
Page 2: Table Of Contents
Content 1 Instruction ................1 1.1 General Description ............1 1.2 Application ..............1 1.3 Camera Overview ............2 1.4 Shooting Information Display ........3 1.5 Saving Images or Videos ..........3 2 Cautions ................4 3 Easy Operations ..............5 3.1 Power Supply .............. -
Page 3: Instruction
SG570-12mHD 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interest (ROI) monitored by a high sensitive... -
Page 4: Camera Overview
SG570-12mHD 1 Instruction unexpected intrusion to homes, shops, schools, depots, offices, taxies, worksites etc. It can also be used as a trail camera for hunting or monitoring animals by recording the traces of wild animals. It can be left alone for months and it will save event records automatically in digital format. -
Page 5: Shooting Information Display
SG570-12mHD 1 Instruction 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to ON position), the shooting information will be displayed on the monitor. 1.5 Saving Images or Videos The camera uses a standard SD (Secure Digital) memory card to save images (in .jpg format) and... -
Page 6: Cautions
SG570-12mHD 2 Cautions 2 Cautions ★ Please install batteries according to shown polarity. ★ Must insert the SD card before power on camera. The camera will not work properly unless a working SD card is detected by the camera ★ Please unlock the write-protect before inserting the SD card. -
Page 7: Easy Operations
SG570-12mHD 3 Easy Operations 3 Easy Operations 3.1 Power Supply Use 4 AA batteries or 6V external battery for power supply. Use high-capacity and high-performance alkaline batteries (recommended), rechargeable Lithium batteries or rechargeable NiMH batteries. 3.2 Insert the SD card The camera has no internal memory for saving images or videos. -
Page 8: Power On And Entering Into The On Mode
SG570-12mHD 3 Easy Operations 3.3 Power on and Entering into the ON Mode Before switching on, please pay attention to the follows: 1. Avoid temperature motion disturbances in front of the camera such as big leaf, curtain, air-conditioner, air outlet of the chimney and other heat sources to prevent from false triggering. -
Page 9: Enter Into The Test Mode
SG570-12mHD 3 Easy Operations (the control must be unplugged when in ON mode) will take pictures or videos automatically according to the default settings or preset customer settings. 3.4 Enter into the TEST Mode Connect the wired control, then switch to the ON position and enter into the TEST mode. -
Page 10: Power Off
SG570-12mHD 3 Easy Operations 3.5 Power Off Switch the camera to OFF position to power off the camera. Please note that even in the OFF mode, the camera still consumes certain power at μA level. Therefore, please remove the battery if the camera will not be used for a long time. -
Page 11: Advanced Operations
SG570-12mHD 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: OFF mode: Power switch is at OFF position. ON mode: Power switch is at ON position. -
Page 12: Setting Items
SG570-12mHD 4 Advanced Operations 4.2 Setting Items Setting Description Items There are two camera modes: Photo or Video. You can enter the Setup interface to set the camera mode or use shortcut key to switch Camera the camera mode. Mode Via shortcut key: press “▲”... -
Page 13: Default Settings
SG570-12mHD 4 Advanced Operations Choose sensitivity of PIR. The higher, the easier the motion sensor would be triggered. It is recommended Normal Sensitivity mode. The sensitivity of PIR is strongly related temperature. Higher temperature leads to lower sensitivity. This parameter means how long the PIR sensor will be inactive after each triggering in ON mode. -
Page 14: View Image
SG570-12mHD 4 Advanced Operations Photo 12MP Size Photo 2 Photo, 1 Photo Burst 3 Photo Video Size 1280x720 640x480 Video 5–60 10 seconds Length seconds Sensitivit Normal High, Low 0–55 seconds, 5 sec Interval 1-60 minutes Format Enter Yes, No 4.4 View Image... -
Page 15: Delete Image Or Video
SG570-12mHD 4 Advanced Operations When view images, the total number of all images in the SD card and the index of the displaying image will be shown respectively. 4.5 Delete Image or Video View the image (or video) which will be deleted. -
Page 16: Trouble Shooting
SG570-12mHD 5 Trouble Shooting 5 Trouble Shooting 1 There is something in front of the camera lens. Is the camera broken? A: The camera is not broken. It’s an IR-Cut filter. When the camera is powered on, the IR-Cut will be reset and cover the lens. -
Page 17: Appendix I: Pir Detection Zone
SG570-12mHD AppendixⅠ:PIR Detection Zone Appendix I: PIR Detection Zone This camera has a new design of PIR and this new PIR is patented. The new patented PIR’s detection range can reach to 73ft(in good environments). Following picture shows the compared detection zone between normal PIR and the new patented PIR. -
Page 18: Appendixⅱ: Technical Specifications
SG570-12mHD AppendixⅡ:Technical Specifications AppendixⅡ: Technical Specifications Image Sensor 5MP Sensor F/NO=2.2 Lens FOV(Field of View)=55° Detection Range Up to 73ft Display Screen 1.44” LCD Memory Card Up to 32GB 1280x720 Video Resolution 640×480 Trigger Time 1.2s Weight * 0.2 kg Operation/Stora -20 - +60°C / -30 - +70°C... -
Page 19: Appendixⅲ: Parts List
SG570-12mHD Appendix Ⅲ: Parts List AppendixⅢ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual Warranty card （Version 1.6） Page 17...
