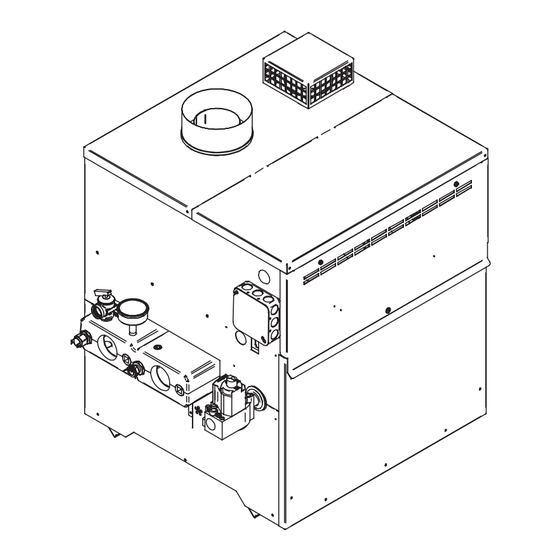

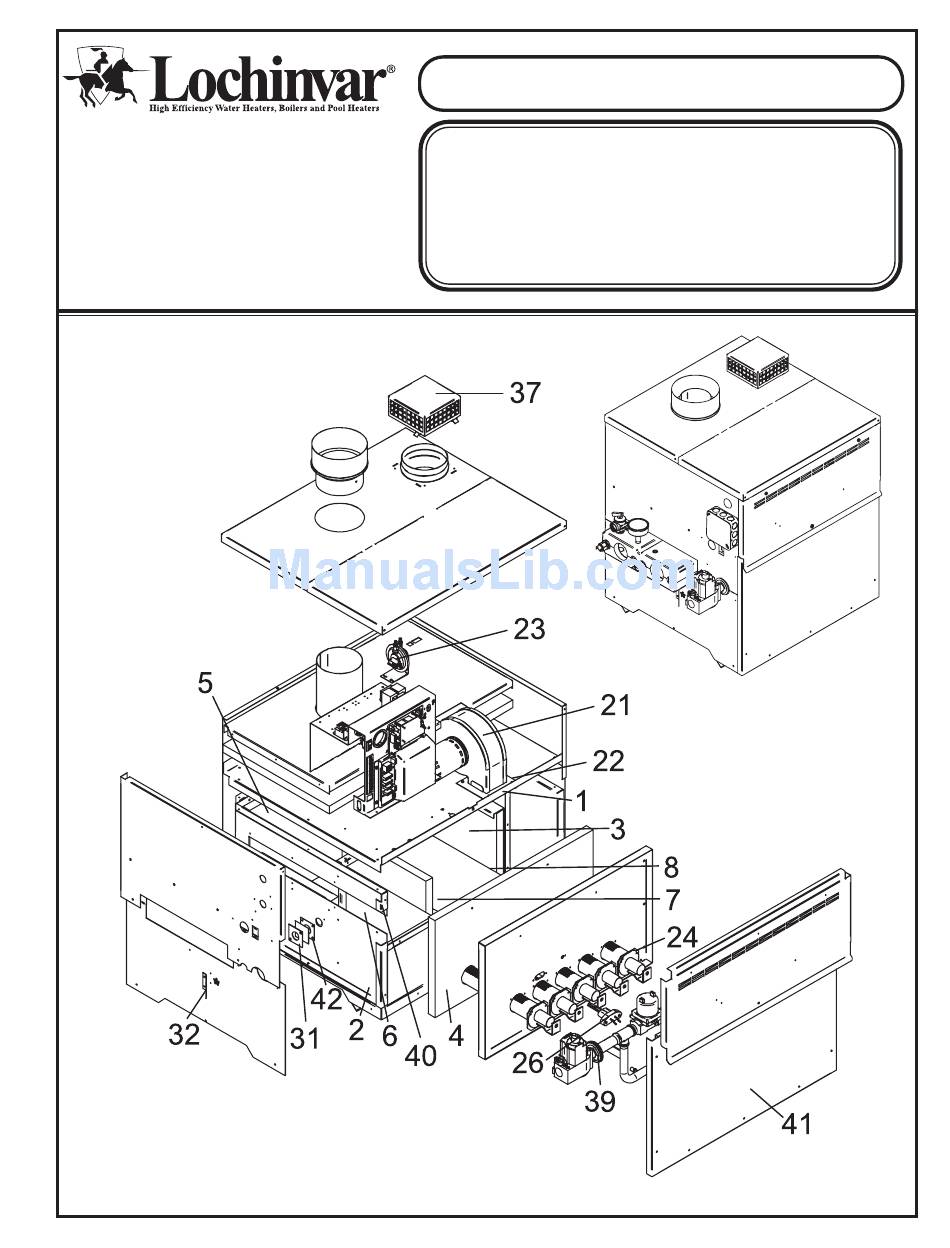

EB/EW-RP-04 Replacement Parts List EB 150 — 300 PARTS & SERVICE DEPARTMENT Lebanon, Tennessee EW 150 — 300 615-889-8900 • Fax: 615-547-1000 www.Lochinvar.com Water Heaters & Boilers Starting Serial Number A05H00172365 RPL7030... - Page 2 CONTROL PANEL ASSEMBLY HEAT EXCHANGER ASSEMBLY GAS TRAIN ASSEMBLIES SINGLE STAGE 2 STAGE...
- Page 3 HEAT EXCHANGER HEX3031 HEAT EXCHANGER GKT2400 GASKET, FRONT HEADER JKA2000 V-BAFFLE JKA2001 V-BAFFLE JKA2002 V-BAFFLE JKA2003 V-BAFFLE ARM3044PAB PUMP WATER HEATER RLY2105 RELAY,PANEL MOUNT,24VAC,COIL RLY2052 RELAY,PANEL MOUNT,24VAC,COIL RLY2400 IGNITION MODULE TRF2004 TRANSFORMER 50V.A. MSC2426 SWITCH, ROCKER ON-OFF TST2314 THERMOSTAT TST5314...
- Page 4 MSC2077 GKT2417 GKT2408 GKT2715 GKT2401 NOTE: EB = BOILER / EW = WATER HEATER PLEASE HAVE MODEL NUMBER AND SERIAL NUMBER WHEN ORDERING PARTS. DESCRIPTION PILOT & BURNER ASSEMBLIES BNR3417 is Main Burner BNR3415 is Main Burner with Pressure Tap (Burners include burner gasket.)
