AAS PhoneAire 16-1050 Installation And Programming Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

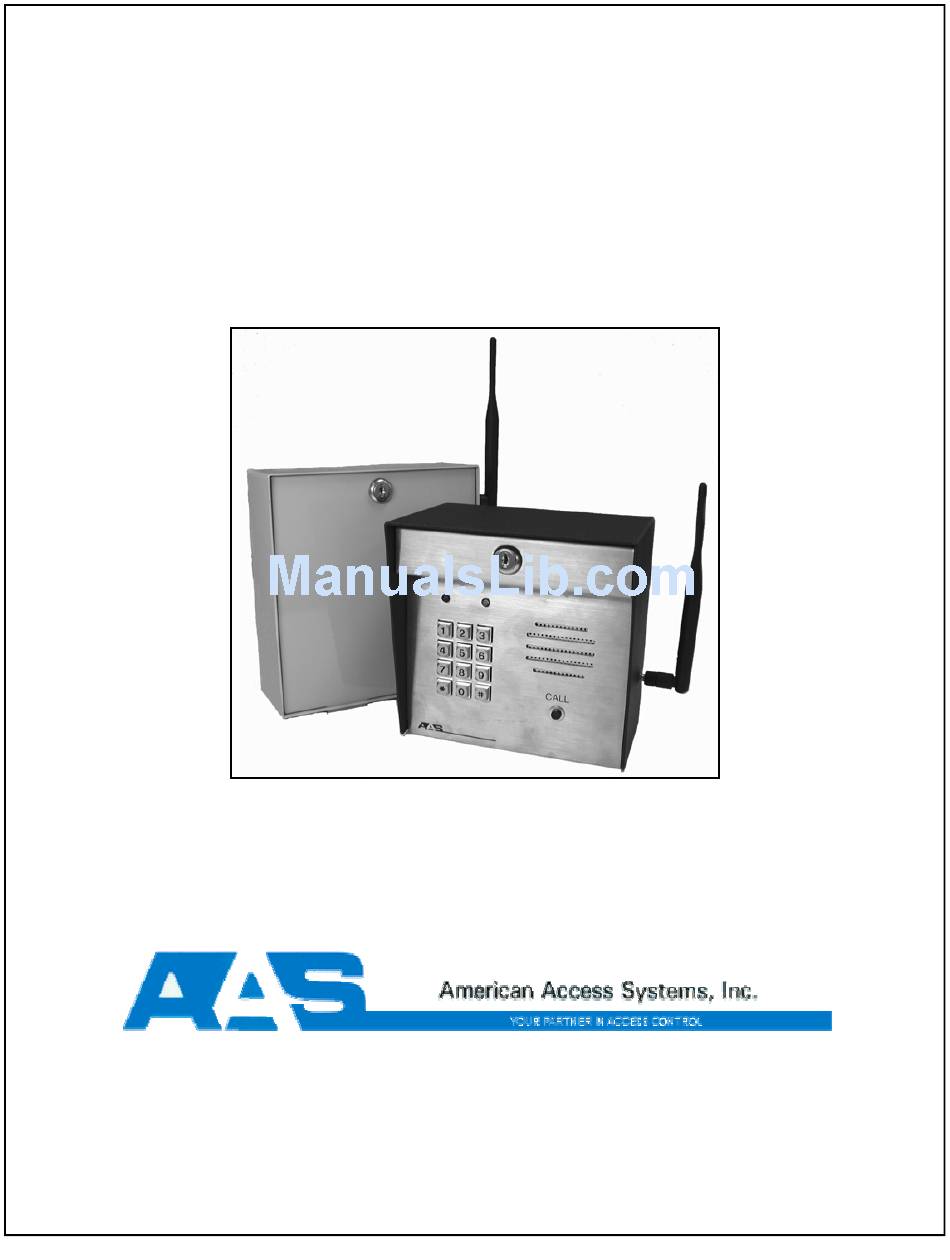

Installation and Programming
Instructions for the PhoneAire
Model 16-1050
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PhoneAire 16-1050 and is the answer not in the manual?

Questions and answers

Related Manuals for AAS PhoneAire 16-1050

Summary of Contents for AAS PhoneAire 16-1050

  • Page 1 Installation and Programming Instructions for the PhoneAire Model 16-1050...

  • Page 2: Fcc Requirements

    FCC REQUIREMENTS This equipment complies with Part 68 of the Federal Communications Commission Rules. On the inside panel of this equipment is a label that contains, among other information, the FCC registration number, Facility Interface code (FIC) and Service Order Code (SOC). This information must be provided to the telephone company. Registration No: US: AAAOT01B30027 FIC: 02LS2 SOC: 9.0Y...

  • Page 3: Doc Requirements

    DOC REQUIREMENTS Equipment Attachment Limitations Notice: This equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements Document(s). This is confirmed by marking the equipment with the Industry Canada certification number. The Department does not guarantee the equipment will operate to the users satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.

  • Page 4: Important Tips

    Important Tips 1. Your PhoneAire contains static sensitive components. Proper grounding techniques should be exercised during installation to prevent damage to circuit board. 2. Additional surge protection is highly recommended to provide extra lighting protection. 3. Please follow the instructions in this manual carefully to prevent problems during installation and programming.
  • Page 5 To earth ground 12 awg copper wire Belden #9912 2. Mounting the PhoneAire Gate unit to an AAS gooseneck pedestal (18-001) or double height gooseneck (18-003) Locate the four carriage bolts and four hex nuts found inside the unit box. Place the unit up to the pedestal flange and insert the four carriage bolts from the backside.
  • Page 7 16-1050 Phoneaire Transmitter Station Hook-up Diagram RELAY A RELAY B EVENT Power INPUT N/O COM N/C N/O COM N/C Device Control Relays 12 VAC or VDC (12 VAC Adapter Provided) This diagram show the basic hook-ups for the remote sytation (“gatebox”). Installation is common to most keypad installations.
  • Page 8 30-029 Circuit Board Receiver Unit SETUP RESET JUMPER BYPASS SWITCH FROM PHONE CO TO PHONES POWER 12VAC ONLY...
  • Page 9 30-028 Circuit Board Transmitter Unit UNIT & MASTER MICROPHONE ADJUST RESET NIGHT LIGHT Speaker Volume CONTROL RELAYS POWER EVENT INPUT...
  • Page 10 PhoneAire System Intercom Operation: A visitor desiring access will push the call button on the outside control station, causing a special ring signal to be sent to the inside phone. Picking up the phone before 10 rings are completed will establish intercom mode between the receiver and the control station. The control station will respond with a GOOD BEEP.

  • Page 11: Function Codes

    intercom mode. Intercom mode is also terminated after five minutes of inactivity --- i.e. five minutes after the last gate command, or five minutes after it is started if no gate commands are given. Intercom mode and use of the keypad are mutually exclusive: if someone is in the middle of entering a four digit code on the keypad (i.e.

  • Page 12: Master Reset

    unit will be enabled. An override code is provided. “ONE SHOT CODE” This code is a programmable four digit code that disables itself after one use. The user can enable this code for reuse using the keypad or telephone. GOODBEEPS & ERRORBEEPS Your unit will beep each time a key is pressed.

  • Page 13: Sub-Mode Description

    Press and release HWRESET button. The idle mode The idle mode is the normal mode of operation. When in this mode the unit sits and waits for data from the keypad. When in this mode you will have approximately 4 seconds between key presses.
  • Page 14 Sub-Mode 1 (Program Relay A Access Codes) To program new Relay A access codes enter the following; (MASTER CODE) (NEW CODE) (NEXT NEW CODE) etc..( to exit) Should you make a code entry error, simply press the key and enter the correct code. You may select any 4 digit code you wish.
  • Page 15 mode see the Unit Reset instructions on pages 10 & 11. NOTE: You can also toggle the sleep code with the telephone. (See intercom operating instructions.) To program or change your sleep code enter the following; (MASTER CODE) + 1 + SLEEP CODE Should you make a code entry error, simply press the key and enter the correct code.

  • Page 16: Sub-Mode 6 (Set Relay Output Times)

    Double beep = disabled Notes: 1) Pressing * will clear the phone number digits entered. 2) Pressing # will “enter” the phone number. A good beep will sound if 7, 10, or 11 digits have been entered when # is pressed. If not, a bad beep will sound and call forwarding will be disabled if it was enabled.

  • Page 17: Sub-Mode 9 (Program Event Input)

    program mode if the memory reaches capacity. When memory is full you will not be able to enter this Sub-Mode and will receive an ERROR if entry is attempted. Sub-Mode 8 (Enable/Disable 3 Strikes-You’re Out) EXPLANATION: This feature is desirable to keep unwanted persons from successively entering codes until they "hit"...

  • Page 18: Sub-Mode 0 (Erase All Codes)

    (MASTER CODE) 9 (*current mode) To program the event input as Remote Open enter the following; (MASTER CODE) 9 (*current mode) (*Relay to Activate) To program the event input as NIGHT LIGHT enter the following; (MASTER CODE) 9 (*current mode) To DISABLE the event input enter the following;...

  • Page 19: Troubleshooting

    Troubleshooting At the gate, press call button, get 1 and a half rings and then error tone. Unit can not find house unit. Either move units closer, different locations, or try antenna extension. At the gate, press call button, get 3 rings and then error tone. Units are talking but no phone line.
  • Page 20 Customer Service: 800-541-5677 Customer service is available free of charge. Hours are 8:00 a.m. to 5:00 p.m. MST. If you call, please have your Model and Serial # to help our technicians assist you with any problems you have. E-Mail: customerservice@americanaccess.com Technical Support: 800-541-5677 Technical support is available free of charge.
