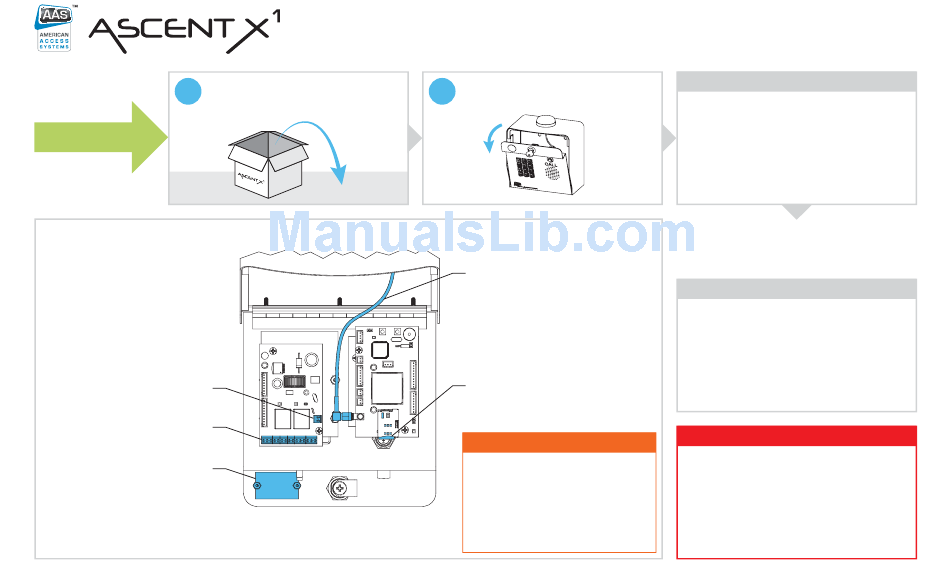

AAS Ascent X1 Quick Start Manual

Carefully unpack box.
1
START HERE
What's what?
All the important components
labeled for you.
Power Terminals
For wiring to compatible AC/DC power source
Connection Terminals
For wiring to all external devices including
gate operator or door opener
Camera Mounting Location
For future camera kit or third-party camera
Q U IC K S TA R T
Unit shown with front panel fully open.
Internal wiring not shown for clarity.
GUI DE
Unlock and open front panel of unit
2
for access to internal components.
Antenna Cable
SIM Card
If you have your own SIM card, see page 4
and follow the instructions entitled,
Installing a Third-Party SIM Card.
CAU TIO N!

Please use all four screws when
mounting unit to a pedestal; leave the
"hockey puck" antenna in place, even if
using the extension; and seal any holes
or gaps created in the enclosure.
Failure to follow these instructions
can result in damage to the unit!
IM P O R TAN T!
r
We recommend mounting Ascent on a
gooseneck pedestal with the included hardware.
If using alternate mounting, the optional
Ascent 10' Cable Extension (p/n 16-X-EXT)
should be purchased. Follow the instructions
included with the extension before moving on.
Failure to do so may result in no signal!
Continued on next page...
IM P O R TAN T!
r
Ascent WILL NOT WORK until the
activation process is COMPLETE!
Follow the Activation Guide or call
Summit Control at (844) 259-8265 to
activate your unit.
W AR NIN G!

AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH IS
CLEAR BEFORE OPERATING!
Reversing or other safety devices should
ALWAYS BE USED!
1 of 4
