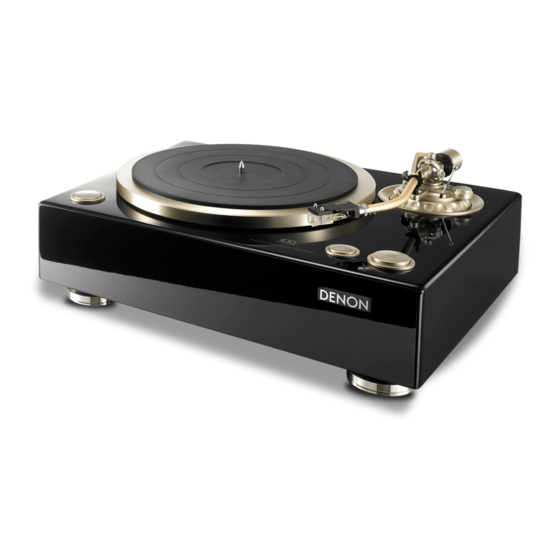

DIRECT DRIVE
MANUAL TURNTABLE SYSTEM
DP-A100
Owner's Manual
Manuel de l'Utilisateur
Manual del usuario

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-A100 and is the answer not in the manual?

Questions and answers

Related Manuals for Denon DP-A100

Summary of Contents for Denon DP-A100

  • Page 1 DIRECT DRIVE MANUAL TURNTABLE SYSTEM DP-A100 Owner’s Manual Manuel de l’Utilisateur Manual del usuario...

  • Page 2: Safety Precautions

    Install in accordance with the manufacturer’s instructions. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. approved by DENON may void your authority, granted by the FCC, to use Do not install near any heat sources such as radiators, heat registers, the product.
  • Page 3 ESPAÑOL FRANCAIS ENGLISH n CAUTIONS ON INSTALLATION NOTES ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO PRÉCAUTIONS D’INSTALLATION WARNINGS AVERTISSEMENTS ADVERTENCIAS EMPLAZAMIENTO DE LA INSTALACIÓN • Avoid high temperatures. • Eviter des températures élevées. • Evite altas temperaturas. Allow for sufficient heat dispersion when Tenir compte d’une dispersion de chaleur Permite la suficiente dispersión del calor cuando...

  • Page 4: Table Of Contents

    ENGLISH Getting started Thank you for purchasing this DENON product. To ensure proper operation, please read these owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference. Contents About this manual Accessories Getting started Check that the following parts are supplied with the product.

  • Page 5: Features

    ENGLISH Features Cautions on handling Maintenance Stylus life (DL-A100) • Before turning the power switch on Cabinet with natural wood exterior in dark brown Check once again that all connections are correct and that there are with gloss fi nish The stylus has service life of about 2000 hours.
  • Page 6 ENGLISH Part names and functions For buttons not explained here, see the page indicated in parentheses ( ). POWER switch ·············································· (7) SPEED button ··············································· (7) Insulator ························································ (5) START/STOP button ···································· (7) Lock nut ························································· (5) Tone arm ······················································· (5) Armrest ·························································...

  • Page 7: Preparations

    ENGLISH Preparations Assembly Before use, attach the included parts to the main unit. Mounting the counterweight 0RXQW WKH KHDG VKHOO VR WKDW WKH VW\OXV WLS LV SRVLWLRQHG Turn the power off when assembling. DERXW  PP IURP WKH HGJH RI WKH KHDG VKHOO¶V PRXQW Insert the counterweight onto the shaft at the back of the tone arm and screw it in.

  • Page 8: Mounting The Head Shell

    ENGLISH Assembly Adjustments Mounting the head shell Turn the power off when making the adjustments. Adjusting the height of the tone arm To protect the stylus tip, attach the stylus cover to the cartridge. START/STOP This adjustment is for the stylus tip of the cartridge so that it will trace ,QVHUW WKH KHDG VKHOO WR WKH HQG RI D WRQH DUP ZLWK WKH Tone arm the groove of a record correctly.

  • Page 9: Adjusting The Stylus Pressure And Anti-Skating

    ENGLISH Adjustments Connections Adjusting the stylus pressure and anti-skating +ROGLQJ WKH FRXQWHUZHLJKW ZLWK D ¿QJHU VR WKDW LW NOTE GRHV QRW PRYH WXUQ WKH VW\OXV SUHVVXUH DGMXVWPHQW Adjust the stylus pressure for the cartridge to be used. Anti-skating ULQJ VR WKDW LW¶V ³´ PDUN LV OLQHG XS ZLWK WKH EODFN •...

  • Page 10: Operation

    ENGLISH Operation Turning power on Stopping playback START/STOP 3UHVV WR VHW LW WR ³h ´ POWER 5DLVH WKH OLIWHU OHYHU VORZO\ Tone arm The “33” indicator on the surface of SPEED lights in amber. The tone arm raises and the stylus tip removed from the record. 5HWXUQ WKH WRQH DUP E\ KROGLQJ WKH KHDG VKHOO¶V ¿QJHU FDWFK WR WKH DUPUHVW If the player is not to be used for extended period, be sure to...

  • Page 11: Troubleshooting

    ENGLISH Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other components operating properly? If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction.

  • Page 12: Specifications

    ENGLISH Specifications n Turntable section n Cartridge (DL-A100) Driving system: Servo system direct drive Power generation method: Moving coil (MC) type Speed: 33–1/3rpm, 45rpm Output voltage: 0.3 mV (1 kHz 50 mm/sec horizontally) Wow & flutter: Less than 0.1 % WRMS Channel balance: within 1 dB (1 kHz) Starting time:...
  • Page 13 D&M Holdings Inc. Printed in China 5411 10576 004D...
