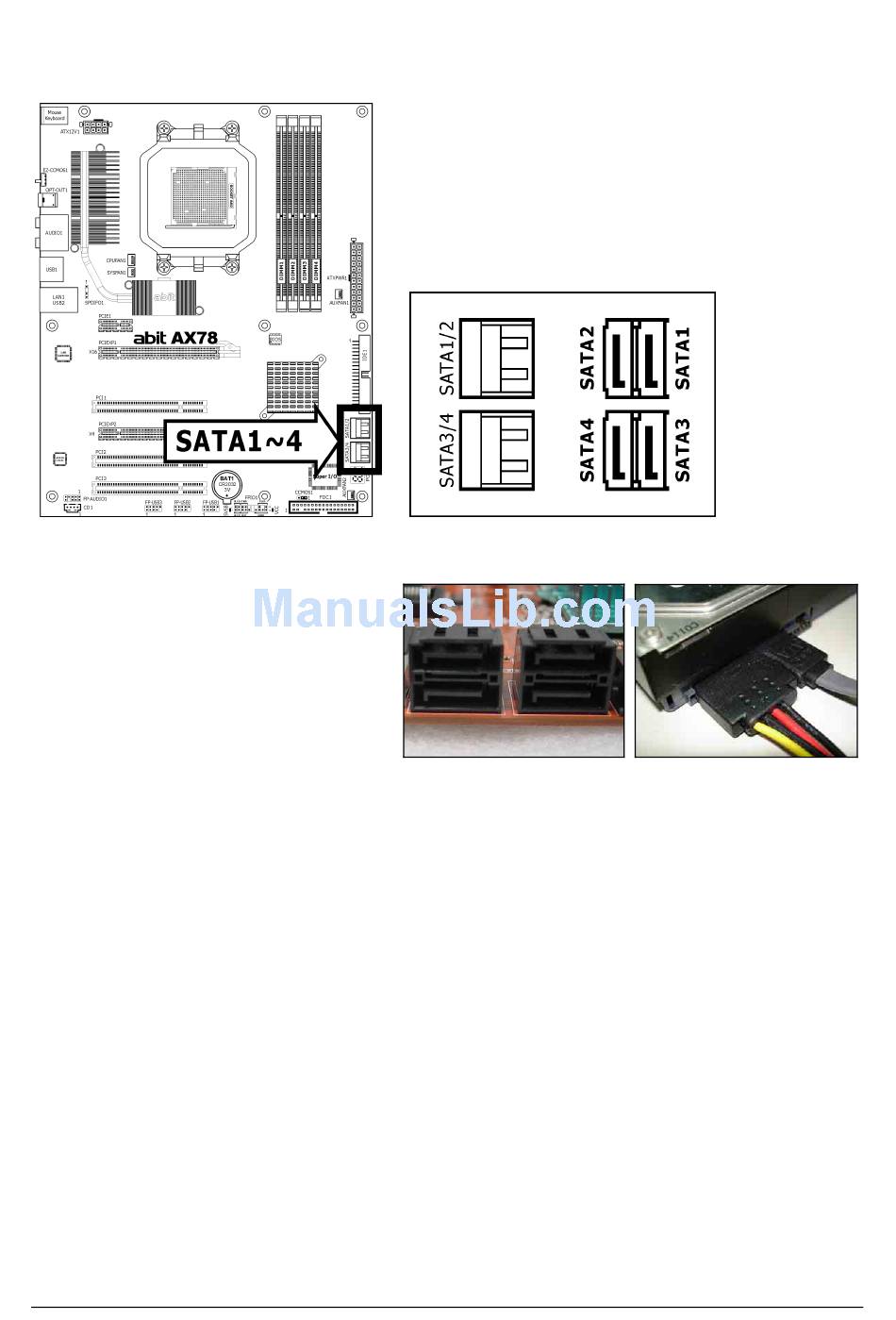

1.8.2 Serial ATA Connectors

Each SATA connector serves as one single channel to connect one SATA device by SATA cable.
To connect SATA device:
1. Attach either end of the signal cable
to the SATA connector on
motherboard. Attach the other end
to the SATA device.
2. Attach the SATA power cable to the
SATA device and connect the other
end from the power supply.
1-14 AX78
