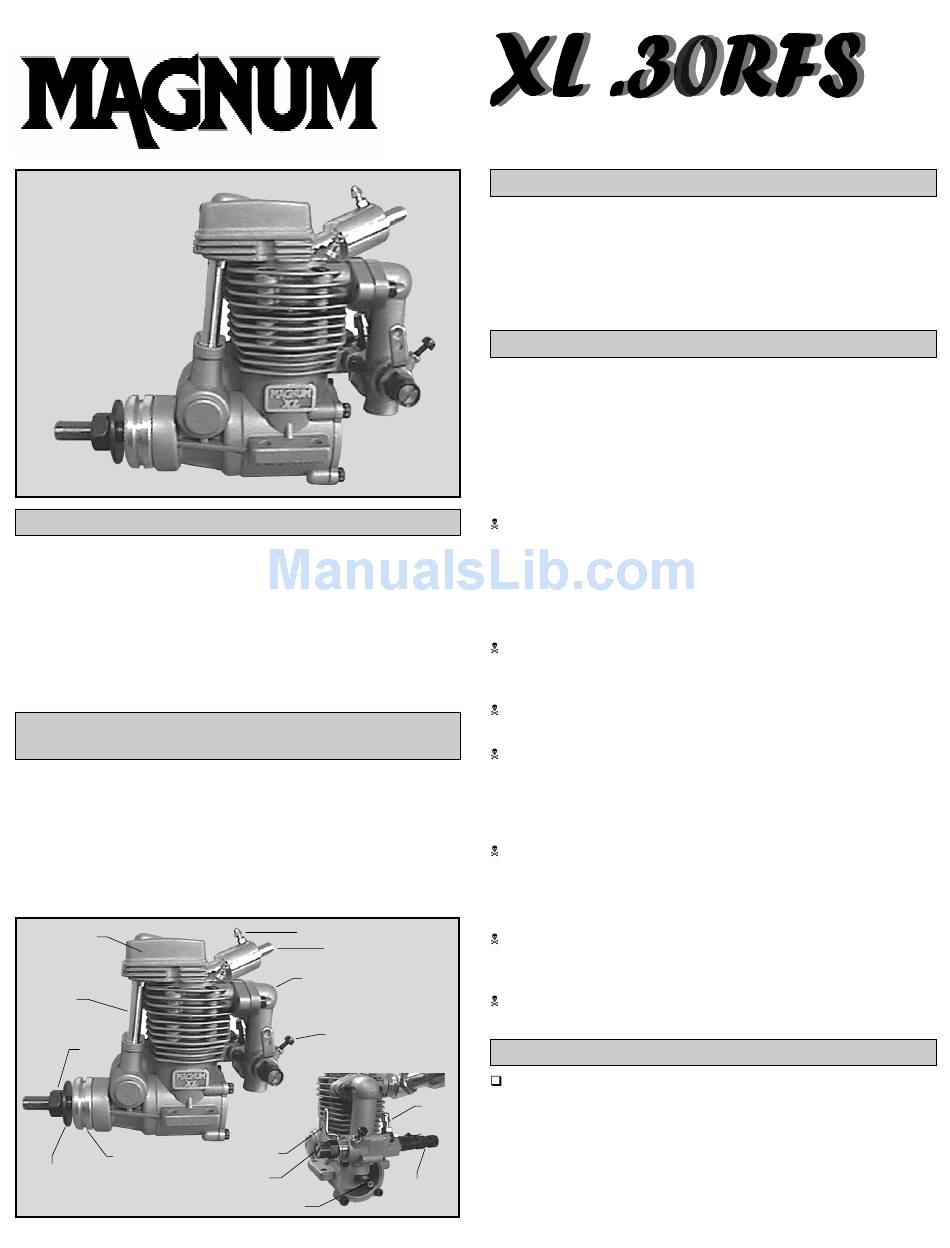

Magnum XL .30RFS Operating Instructions Manual

INTRODUCTION
The Magnum XL .30RFS is a single cylinder, overhead valve four stroke
engine incorporating ringed piston technology for long life and high power
output under extreme conditions. A dual needle carburetor is utilized for
easy and precise mixture adjustments. A polished aluminum muffler is
included to keep the noise to a minimum without sacrificing power. The
engine was designed by expert engineers and built by master craftsmen
using only the highest quality materials and CNC machinery. These quali-
ties provide the long life and dependability you have come to expect
from an engine of this caliber.
BECOMING FAMILIAR WITH THE
MAGNUM XL .30RFS
If you are familiar with the operation of model engines or just can't wait to
run your new engine, please read through the Quick Starting Guide in-
cluded. This guide will help you get started right away and also includes
some good recommendations. We do recommend reading through this in-
struction sheet in it's entirety to familiarize yourself with the features and
operation of your new engine. We have also included a Troubleshooting
Guide should you encounter any problems. Please use the photos below to
familiarize yourself with the components of your new XL .30RFS engine.
Rocker Cover
Pushrod
Tubes
Prop
Nut
Drive Washer
Prop
Washer
Crankcase Breather Nipple
Pressure Nipple
Muffler
Intake
Pipe
Rotor Bolt
Throttle Arm
Low Speed
Needle Valve

OPERATING INSTRUCTIONS

Displacement.............................................5.0cc (.30cu.in.)
Bore............................................................................19.7mm
Stroke..........................................................................16.4mm
Practical R.P.M.................................................2,200 - 13,000
Weight (w/Muffler)....................................................9.6oz.
Crankshaft Thread Size...............................................1/4 - 28
Magnum model engines will consistently give you dependable perfor-
mance and reliability and will be a source of satisfaction and pleasure if
you follow these instructions as to the engine's proper and safe use. You
alone are responsible for the safe operation of your engine, so act sensi-
bly and with care at all times. This Magnum model engine is not a toy. It
is a precision built machine whose power is capable of causing serious
injury to yourself and others if abused, misused or if you fail to observe
proper safety precautions while using it.
Keep spectators, especially small children, at least 20 feet away from
the engine while it is running.
Mount the engine securely in the airplane or on a suitable engine test
stand to run the engine. Follow the mounting instructions in your kits
instruction manual or on the plans for individual mounting recommenda-
tions. Do not clamp the engine in a vise to test run it.
Use the recommended size propeller and follow the proper procedure
for mounting the propeller. Use the correct size wrench to tighten the
propeller nut and the safety nut. Do not use pliers.
Inspect the spinner, propeller and propeller nut on a regular basis,
looking for any signs of nicks, cracks or loosening.
To stop the engine, adjust the throttle linkage to completely close the
throttle barrel and therefore cut off the fuel/air supply. You can also pinch
the fuel line to stop the engine, but only if it is accessible. Do not throw
anything into the spinning propeller or attempt to use your hands to stop
the engine.
While the engine is running stand behind the engine to make any ad-
justments to the needle valves. Do not reach over or around the propeller.
Do not lean towards the engine. Do not wear loose clothing or allow any-
thing to be drawn into the spinning propeller while the engine is running.
If you need to carry your model while the engine is running, be con-
scious of the spinning propeller. Keep the airplane pointed away from you
and others at all times.
Do not use tight fitting cowls over the engine. They can restrict air
from flowing over the engine and result in engine damage from overheating.
Engine Orientation
Fuel
The Magnum XL .30RFS engine can be orientated in any position on the
Nipple
firewall. Keep in mind that if you mount the engine inverted, carburetor
adjustments will need to made differently and the fuel tank may need to be
lowered. (See fuel tank size and orientation to carburetor on next page).
Engines mounted inverted tend to run richer during idle and transition to
High Speed
full throttle, and are generally more difficult to setup and tune properly.
Needle Valve

SPECIFICATIONS

WARNING!
ENGINE INSTALLATION
