2.3 How to Connect

Connecting your TV to a power outlet
• Plug the power cord into a power outlet.
Connecting an outside antenna

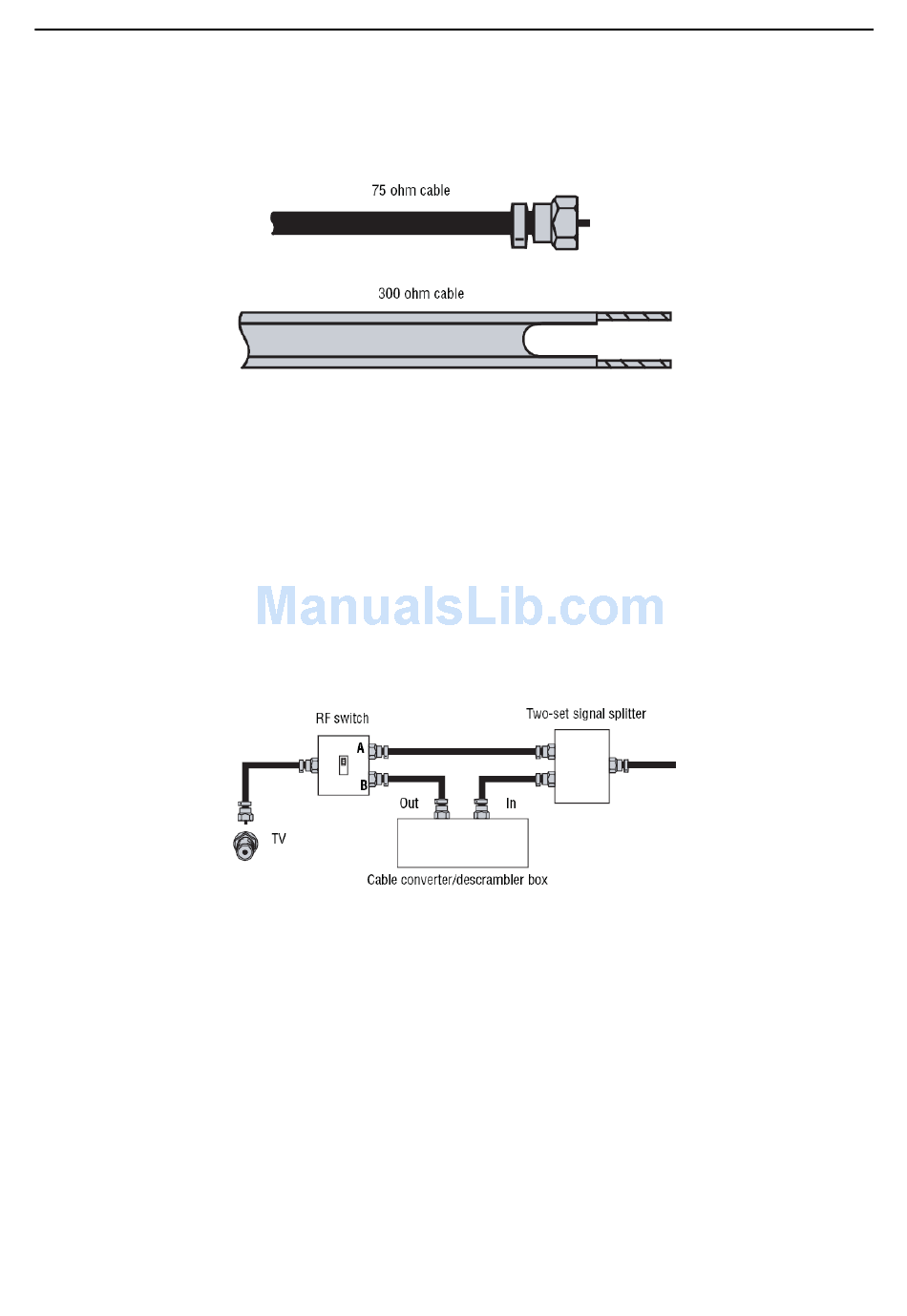

Antenna cables come in two types: 75 ohm and 300 ohm.
• If your antenna cable has a 75 ohm connector, connect the cable to the coaxial jack on the back of your TV.
• If your antenna cable has a 300 ohm connector, connect the cable to a 300-75 ohm adapter (not included), connect
the adapter to a 75 ohm cable, then connect the other end of the 75 ohm connector to the coaxial jack on the back of
your TV.
To connect cable TV without a converter/descrambler box:
1 Connect one end of a 75 ohm cable to the coaxial jack on the back of your TV.
2 Connect the other end of the cable to the cable TV wall outlet.
To connect cable TV with a converter/descrambler box:
• Use the following illustration to connect a converter/descrambler box. (The RF switch and the signal splitter are not
provided.) Set the RF switch to the A position to watch unscrambled channels using your TV remote control. Set the
RF switch to the B position to watch scrambled channels using the converter/descrambler controls.
To connect an external signal source:
1 For composite video—plug the audio/video cable into the AUDIO L, AUDIO R and VIDEO in jacks on the back of
your TV. - OR –For S-Video—Plug in the audio cables as described above, then plug one end of an S-Video cable
into the S-Video jack on the back of your TV and the other end into the S-Video jack on external signal source.
- OR - For component video—plug the Y, Pb, and Pr video cables and the Audio L and Audio R cables into the
COMPONENT VIDEO IN and AUDIO L/R jacks on the back of your TV, then plug the other ends of the cables into
the corresponding jacks on the external signal source.
- OR - For HDMI—plug one end of an HDMI cable into the HDMI1 INPUT or HDMI2 INPUT jack on the back of your
TV, then plug the other end into an HDMI device.
2 Turn on your TV.
3 Press the INPUT button repeatedly to select the external signal source you want to watch.
4 Turn on external signal source.
5 Insert a disc or videotape into the external signal source, then press the PLAY button.
