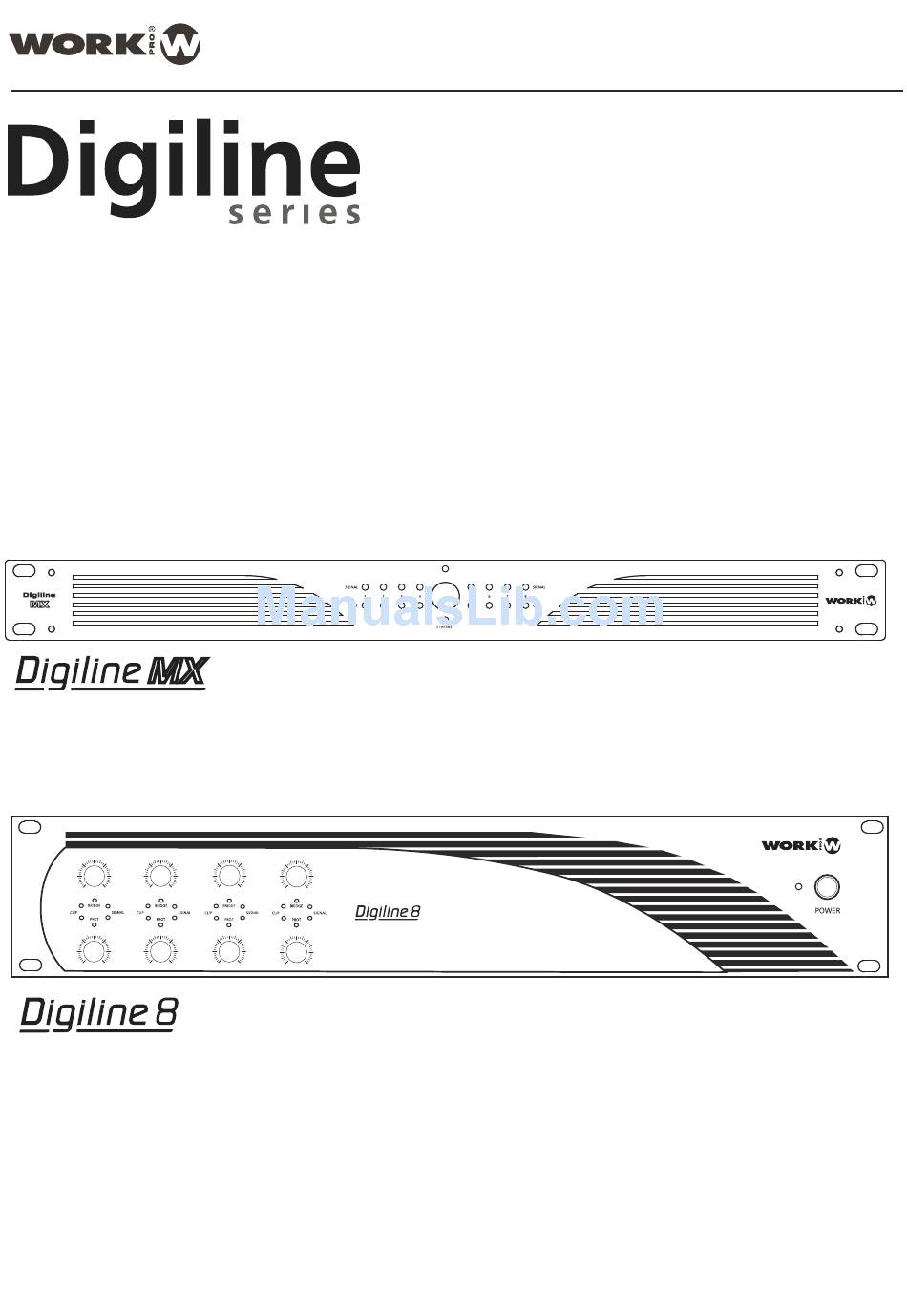

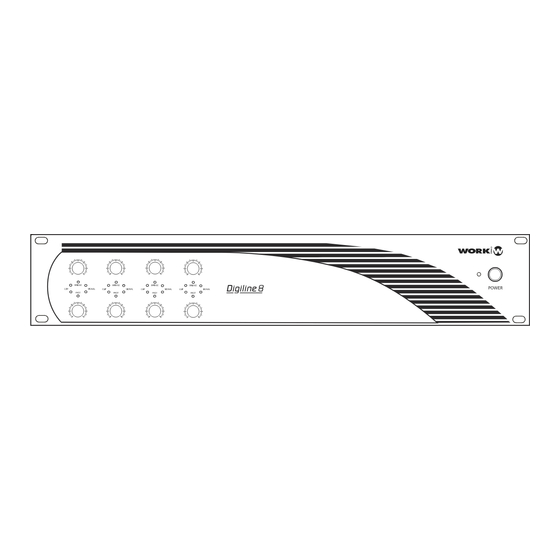

- Page 1 User manual POWER Rev. 13.04.01 www.work.es...
-
Page 3: Table Of Contents
2.2 WorkCAD (Common Interface)........................10 2.2.1. DEVICES ............................... 10 2.2.1.1. Library ............................ 10 2.2.1.2. Network ..........................11 2.2.1.3. Connecting virtual & physical devices between them ............11 2.2.2 PROJECT INSPECTOR ..........................12 2.2.3 OSC HISTORY ............................13 DIGILINE 8 / DIGILINE MX Page 1... - Page 4 3.1.3. XOVER ................................. 18 3.1.4. LIMITER ................................20 3.2. PRESETS ..................................21 3.3. GPI ....................................22 3.3.1. Commands ................................24 3.3.2. Other Commands ..............................26 4. Updating Firmware ............................... 29 5. OSC - ASCII converter ..............................31 DIGILINE 8 / DIGILINE MX Page 2...
-
Page 5: Safety Instructions
If liquids have been spilled, metallic objects have entered inside the unit or the device generates smoke or strange smell and looks like malfunction, switch it off immediately and contact with your distributor. DIGILINE 8 / DIGILINE MX Page 3... -
Page 6: Additional Notes About Security And Maintenance
In addition to processing feature, DIGILINE 8 includes a powerful class D amplifier with 8 different channels of 150W each. To maximizeS/N ratio in audio signal, it features a double switching mode power supply: one for amplificatrion and another for DSP. -
Page 7: Contents
9. LAN network connection: Connect the unit to a LAN using an UTP CAT5 cable. 4. PHANTOM Power: Select the MIC channel to 10. AC MAINS SOCKET apply 24V Phantom power usi 5. Outputs 1-8: Balanced outputs to c onnect them to an external amplified system. DETAIL DIGILINE 8 / DIGILINE MX Page 5... - Page 8 3. 1-8 OUTPUTS: This terminal blocks series allow to obtain 150 W in each one. Therefore, it is possible a direct connection to inputs (General Purpose Input/Output) with TTL an adecuate loudspeaker system. (Digiline 8 only) level (0-5 V DC) for presets triggering from a wallmount controller.
-
Page 9: Block Diagram
1.6. Block Diagram Powered Section (Digiline 8 only) DIGILINE 8 / DIGILINE MX Page 7... -
Page 10: Device Connection
LINE 1 Balanced input signal (LINE level) Digiline 8 DIGILINE 8 incorporates powered outputs, thus it disposes of different terminal block ti direct connection to loudspeaker system DIGILINE 8 output connection corresponding to the 2 independent outputs placed in the same terminal block. -
Page 11: Workcad Designer
2. A window opens to inform the start of software installation process. Click Next and follow the steps for the installation process. NOTE: After the installation, a window informs you that a new extension (* WPJ) is associated to WorkCAD. This extension is used by projects created. DIGILINE 8 / DIGILINE MX Page 9... -
Page 12: Workcad (Common Interface)
Project Inspector window is off. You can create presets but, in order to use them, you need to download them into a physical device. Consult (3.2. PRESETS) section for further information. DIGILINE 8 / DIGILINE MX Page 10... -
Page 13: Network
After, in the installation, load the project generated file (from File tab). the Project will be loaded and now you can repeat the same process described in the previous point: Load the physical device from Network and Copy/paste the information. DIGILINE 8 / DIGILINE MX Page 11... -
Page 14: Project Inspector
Depending on the color of the circle closed the name, a different state will be present: Digiline MX in DISCONNECTED state and Digiline 8,(created Digiline MX in from the library), and CONNECTED state not associated with any physical device DIGILINE 8 / DIGILINE MX Page 12... -
Page 15: Osc History
Ethernet or Serial depending on where you connected the control. (Ethernet Port or RS 232 Port respectively) In the first case, the line is as follows: //out1/eq/1;ifff;4;66.12;-19.48;0.707; In the second case, the line is as follows: #//out1/eq/1;ifff;4;66.12;-19.48;0.707;\ DIGILINE 8 / DIGILINE MX Page 13... -
Page 16: Digiline Interface
Change their names, copy/paste and store them. Also, you can establish a backup point and access to it (Push/Pop). Finally, you can work in LIVE or EDIT mode. NOTE: See the (3.2. PRESET) section for further information DIGILINE 8 / DIGILINE MX Page 14... - Page 17 The button over the value allows to change the state: Push it to MUTE the whole outputs The button over the value allows to change the state: Push it to MUTE all outputs. The icon change to red colour. DIGILINE 8 / DIGILINE MX Page 15...
- Page 18 Options: Allows to disable the frontal control against unwanted manipulations. The potentiometers values are then stored and reloaded when the device restarts. press Apply. It is posible to change Baudrate speed of the serial port of the MX device. It can also be disabled. DIGILINE 8 / DIGILINE MX Page 16...
-
Page 19: Dsp
Q factor. The response curve appears in the graphic windows. In that case, the most lower green and red points correspond to this filter. Also, in OSC HISTORY has been created an OSC command corresponding to this filter creation. DIGILINE 8 / DIGILINE MX Page 17... -
Page 20: Mixer
Linkwitz-Riley or Bessel) (Type), and the magnitude order of that filter (Up to 8 orders) (N). The obtained response curve applying both filters is displayed on the screen. The horizontal axis shows the frequency in Hz and vertical the gain in dB. DIGILINE 8 / DIGILINE MX Page 18... - Page 21 In that case, the last action has been to create the Low Pass filter to Output 1 with the example values. At this moment, the Complete Response and if it is shown only Output 1, you can see the complete response after applying the Xover and EQ filter explained in this example. DIGILINE 8 / DIGILINE MX Page 19...
-
Page 22: Limiter
Limiter setting. In that case from Limiter 1-7 to Limiter 8 or viceversa. Like each DSP section, a command sentence will appears in OSC HISTORY each time that we change any value. DIGILINE 8 / DIGILINE MX Page 20... -
Page 23: Presets
ONLY exist in the software. If you try to connect to physical device. The software will alert that both devices (virtual device present in the software and physical device have not the same stored presets, they are desynchronized. DIGILINE 8 / DIGILINE MX Page 21... -
Page 24: Gpi
Local. 3.3. GPI DIGILINE devices incorporate GPIs (General Purpose Input), 4 GPI for DIGILINE 8 and 12 GPI for DIGILINE MX Also, both devices incorporate LMI input. These inputs are contacts. We can assign to them commands to be executed in both states: When the GPI is activated or deactivated.The LMI is a microphone analog input that, from the selected... - Page 25 You can select a command in the OSC Method and delete it using this icon. After creating a command in section , pressing this icon, and having selected a command in OSC Method window, this new command will replace the selected. DIGILINE 8 / DIGILINE MX Page 23...
-
Page 26: Commands
4 dB, leaving the output without applying a Mute or invert its phase Once written the values? ? , click the icon and the command will appear in the OSC Methods If you press the icon will delete the selected command line. DIGILINE 8 / DIGILINE MX Page 24... - Page 27 We applied that command on channel 2 by typing 2 in the first parameter and writing -5 in the second, of This way, we will reduce the value 5dB previously had output number 2. DIGILINE 8 / DIGILINE MX Page 25...
-
Page 28: Other Commands
: These commands are more sensitive to create, especially the limiter / compressor so need some knowledge of the values ? ? t hat are being edited and the impact they can create the modified output. DIGILINE 8 / DIGILINE MX Page 26... - Page 29 High / Low pass frequency values ? ? a re the frequency in the filter in Hz (150 Hz and 12,000 Hz in this case). (See 3.1.3 XOVER on page 18 for additional information). DIGILINE 8 / DIGILINE MX Page 27...
- Page 30 - Set Output Name: Change the name of the selected output IMPORTANT: As in the previous section, the commands which incorporate "GET" behave similarly 5. UDP Port: This command changes the UDP port value. Originally the value of this port is 9000 DIGILINE 8 / DIGILINE MX Page 28...
-
Page 31: Updating Firmware
"^" 3. Push the symbol in the same line to start the updating process. A windows requesting confirmation, will appears. This symbol only appears when the device is not updated DIGILINE 8 / DIGILINE MX Page 29... - Page 32 B. Check your current firmware version, if this version is 9.13.14.0.0 or later, the presets previously stored in the DIGILINE ARE FULLY COMPATIBLE WITH THIS VERSION, Therefore, these presets DO NOT BE DELETED AFTER UPDATING PROCESS DIGILINE 8 / DIGILINE MX Page 30...
-
Page 33: Osc - Ascii Converter
3. Depending on the selected device, has been associated commands to generate the ASCII string. Each command has its own set of parameters to edit. You can see then in the main window, its description, value and type of input variable (string, float or boolean). DIGILINE 8 / DIGILINE MX Page 31... - Page 34 NOTE: Click the Help icon in the lower left corner for additional information on this application. NOTE: For an explanation of the commands that incorporate Digiline series devices, see section 3.3. GPI for additional information. DIGILINE 8 / DIGILINE MX Page 32...
- Page 35 DIGILINE Series Notes...
- Page 36 EQUIPSON, S.A. Avda. El Saler, 14 - Pol. Ind. L´Alteró, 46460 - Silla (Valencia) Spain Tel. +34 96 121 63 01 Fax + 34 96 120 02 42 www.work.es support@work.es...
