HDVR1200 Satellite Receiver
The Front panel of the HDVR200 satellite receiver has many of the important
controls needed for operation of your Glorystar system. It is important to install the
receiver so the front display can be visible for proper remote control operation and
to have easy access to the control keys in case the remote control is misplaced.

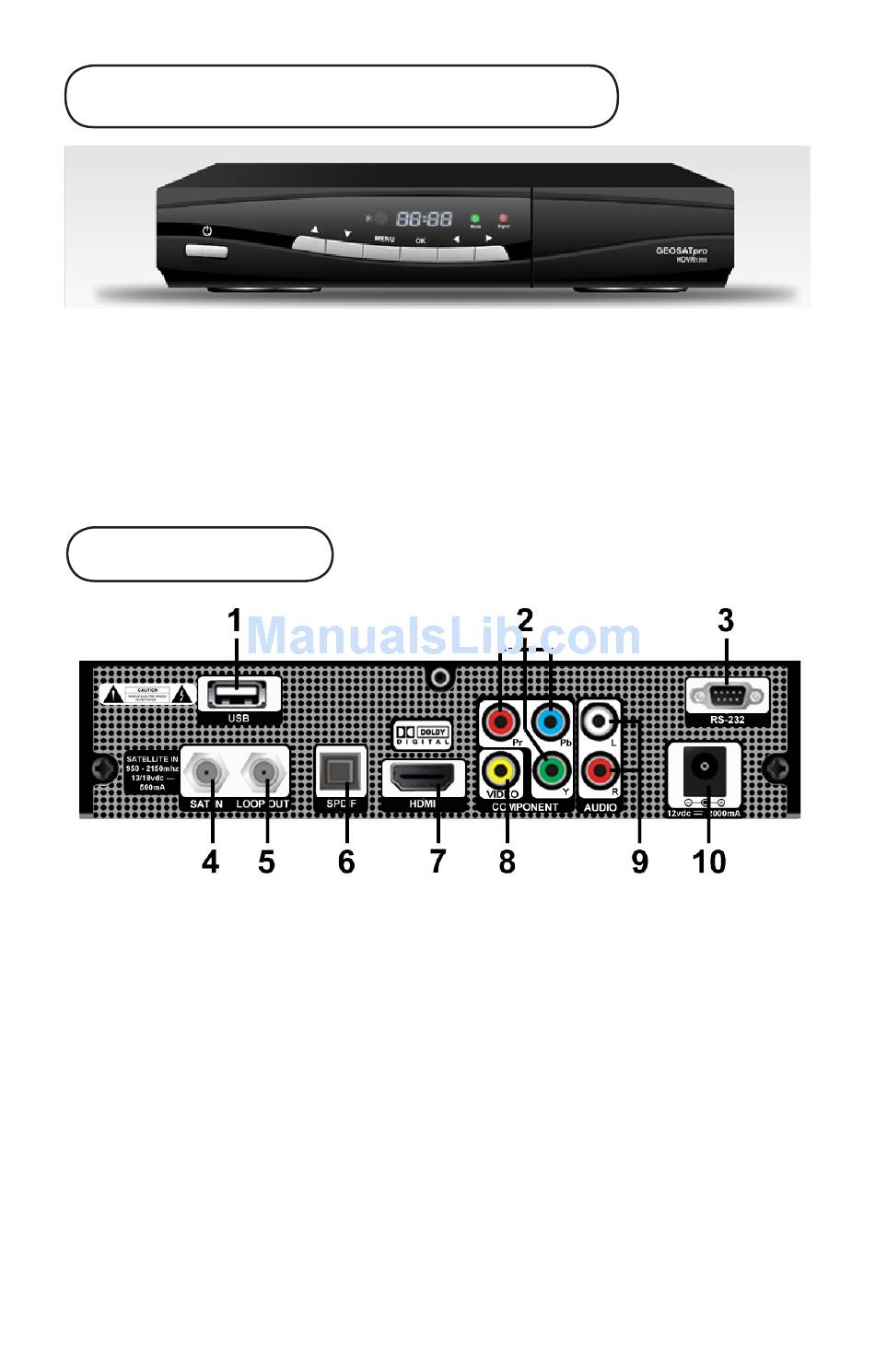

Rear Panel
. Connect USB 2.0 Devices for DVR / Media / Upgrades / WiFi (5v/500ma)
2. Connect Analog Component Video to TV or other video equipment
3. RS232 Null Modem Serial Port for Upgrade and Diagnostic
. Connect to the Satellite Dish Coax Cable
5. Loop Satellite Signal Out (not recommended for 2nd receiver connection)
6. Connect Optical Digital Audio to Digital Audio Amplifier
7. Connect Digital HDMI Video and Audio to TV or other video equipment
8. Connect Analog Composite Video to TV or other video equipment
9. Connect Analog Audio Left/Right (decoded Dolby) to TV or other equipment
0. Connects to DC Power Supply (2vdc / 500ma / positive tip)
www.glorystar.tv
Toll Free 866-597-0728
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GEOSATpro HDVR1200
Summary of Contents for GEOSATpro HDVR1200
-
Page 1: Rear Panel
HDVR1200 Satellite Receiver The Front panel of the HDVR200 satellite receiver has many of the important controls needed for operation of your Glorystar system. It is important to install the receiver so the front display can be visible for proper remote control operation and to have easy access to the control keys in case the remote control is misplaced. Rear Panel . Connect USB 2.0 Devices for DVR / Media / Upgrades / WiFi (5v/500ma) 2. Connect Analog Component Video to TV or other video equipment 3. RS232 Null Modem Serial Port for Upgrade and Diagnostic . Connect to the Satellite Dish Coax Cable 5. Loop Satellite Signal Out (not recommended for 2nd receiver connection) 6. Connect Optical Digital Audio to Digital Audio Amplifier 7. Connect Digital HDMI Video and Audio to TV or other video equipment 8. Connect Analog Composite Video to TV or other video equipment 9. Connect Analog Audio Left/Right (decoded Dolby) to TV or other equipment 0. Connects to DC Power Supply (2vdc / 500ma / positive tip) www.glorystar.tv Toll Free 866-597-0728... - Page 2 LED display lights to verify remote operation Enter the Manual Timer Setting menu Display Media Player for Videos / Photos / Music Page Down in a List and DVR Scan Rewind Skip Rewind Play DVR / Media Freeze Video or Pause DVR / Media Display DVR Recordings List Display Satellite List Display the Main Menu Screens Change Channel or Menu Navigation Up / Down Display Channel Banner, 2x for Program EPG, 3x for Service Information Display Electronic Program Guide (if provided) Increase / Decrease Volume Numeric / Alpha Keys for direct Channel Change and Menu Setting Mute or Enable Muted Audio Select Standby or Operation Mode Select Closed Caption ON / OFF Display a Full Screen Signal Meter Page Up in a List and DVR Scan Forward Skip Forward Stop DVR Play or Record / Stop Media Playback Start DVR Manual Record Select the Favorite List Mode Magnify a Portion of the Screen Exit Screens or Functions Display the Channel List or Accept a Menu Item Increase / Decrease Volume or Menu Navigation Left / Right Return to Previous Channel Change Channel Up / Down Select Alternative Language / Audio Mode / Sound Track Select to View TV or Listen to Radio Channels Remote Shortcuts • View Channel List - 27 • Turn the Receiver ON / OFF - 17 •...
-
Page 3: Connect Receiver To A Tv
Connect Receiver to a TV CAUTION: DO NOT ATTEMPT TO OPERATE ELECTRONIC DEVICES IN AN UNSAFE LOCATION OR IN VIOLATION OF SAFEGUARDS PROVIDED IN THIS MANUAL OR ANY OTHER EQUIPMENT MANUAL PROVIDED WITH THIS SATELLITE SYSTEM. Remove the satellite receiver and remote control from the packaging. Inspect the unit before operation. If any equipment is damaged or if you have any questions, please immediately contact your reseller. Install the two included AAA batteries into the remote control battery compartment. The BEST and Easiest method to aim the satellite dish is to temporarily place the satellite receiver and a small TV near the satellite dish. This method allows the installer to see the signal changes that occur with small dish movements. It is... - Page 4 Plug the satellite receiver’s power supply into the 2VDC port on the rear panel of the HDVR200. Plug the HDVR200 power supply AC plug into the surge protected power strip. Standard Definition Connections (opt.) Older TV: Only Antenna Jack VCR - Standard Definition Consult the owners manual provided with TV, VCR or other device that will be connected to the GEOSATpro satellite receiver. Questions regarding the connection to any other equipment should be directed to the manufacturer of that device. ...
- Page 5 Receiver Activation and Set-up When the receiver is first powered ON it will display “Welcome! Please select Install Type”. Press the OK key on the remote control to install for the Glorystar Christian Satellite Service. Press the remote control Left or Right Navigation key to select the connection cable type used to connect the satellite receiver to the TV. If a HDMI cable is connected, select HDMI then press OK key and continue to step # 3. If a RCA cable is used, select RCA...
- Page 6 Glorystar - Local Time is set by selecting your Time Zone. With Time Zone highlighted, press the Left or Right Navigation key to display the install location time zone. For Example: -5:00 EST - New York is the correct time zone selection for the east coast of the US. Press the Down Navigation key to highlight “Does this Time Zone observe Daylight Savings?” Press the Right or Left Navigation key to select OFF if your location does not change between Standard and Daylight Savings...
-
Page 7: Locate And Peak Satellite Signal
The Red color bar displaying a low Signal Quality reading at or below 50% indicates that the dish might be aimed at the correct satellite, but needs more adjustment. If any channel displays a Signal Quality reading below 50%, additional fine tuning adjustments MUST be made. The Yellow color bar displaying a Signal Quality reading at or below 60% and video of the channel playing behind the meters indicates that the dish is aimed at the correct satellite, but needs more adjustment or the LNBF is not properly rotated to optimally receive the satellite signal. - Page 8 Once the correct satellite is detected, the Signal Quality reading will appear and increase from a low quality Red color meter display to a stronger signal indicated with Yellow and a Green meter display when the Signal Quality reading is good. Continue to optimize the dish aiming by making very small changes Almost There! Adjust a Little More...
- Page 9 Slight clockwise or counter clockwise adjustments to the LNBF rotation or sliding the LNBF towards the reflector or away from the reflector may also provide increased Signal Quality readings. Change between Channels 901, 113 and 106 and balance for Peak Signal Quality readings on these three channels. The Glorystar system will have the best performance when the Signal Quality Levels are peaked and balanced on all channels and weakest channel has a Signal Quality reading at or above 60%. If you must to exit the installation process before the three channels are optimized or if the power is removed, the receiver will return to step # in the set-up screens. When the dish aiming is complete, tighten all dish hardware to permanently hold the dish in this position. Complete Select “Aiming - Continue” and press OK key to automatically update the satellite receiver with the latest Glorystar channels. This process may take up to...
-
Page 10: Channel Banner
00 Arabic / Aramaic • 500 Multi-Language Radio Channel Name Standard or High Definition Television Channel Closed Captioning for Hearing Impaired Available Television or Radio Channel Free or Scrambled Channel Current Date and Time set automatically by satellite Electronic Program Guide Start Stop Time (if provided by broadcaster) Program Name (if provided by broadcaster) Signal Strength and Signal Quality Readings (Quality reading must be above 60% for reliable reception) To learn more about the advanced features of this receiver, please review the latest Owners Manual. Download the latest GEOSATpro HDVR1200 Owners Manual at: www.geosatpro.com/manuals ... -
Page 11: Completing The Install And Grounding
If you are unsure of how to properly ground your satellite system, please consult with a local professional. Copies of the NEC are available at your local library or online. Important Notice: GEOSATpro recommends that you DO NOT use existing coaxial cabling that has been pre-wired or previously used in your home. Often these cables are low quality RG-59, not rated for satellite applications or have splitters and other devices that are not compatible. Always connect the RG-6 type coax cable directly from the satellite dish LNBF through the grounding block and attach to the Satellite IN connection on the rear of the satellite receiver. -
Page 12: Epg (Electronic Program Guide)
DVR Record / Playback To enable the Digital Video Record feature of the GEOSATpro HDVR200, connect an USB drive to the USB port located on the rear panel. The minimum supported USB memory size is GB and the largest harddrive is 2TB. Make sure that you connect an USB drive with adequate space to store the programming that you wish to record and archive. Standard definition TV recordings typically require approximately GB per hour of recording. Example: 32GB USB thumb drive will provide approximately 32 hours of TV recording while a 500GB will allow up to 500 hours, etc. The USB drive should have an external power supply. Portable harddrives without external power supplies should not be used for DVR operation as they are not designed for extended recording and playback and have the potential to damage the receiver.
