Summary of Contents for GEOSATpro DSR200c
-

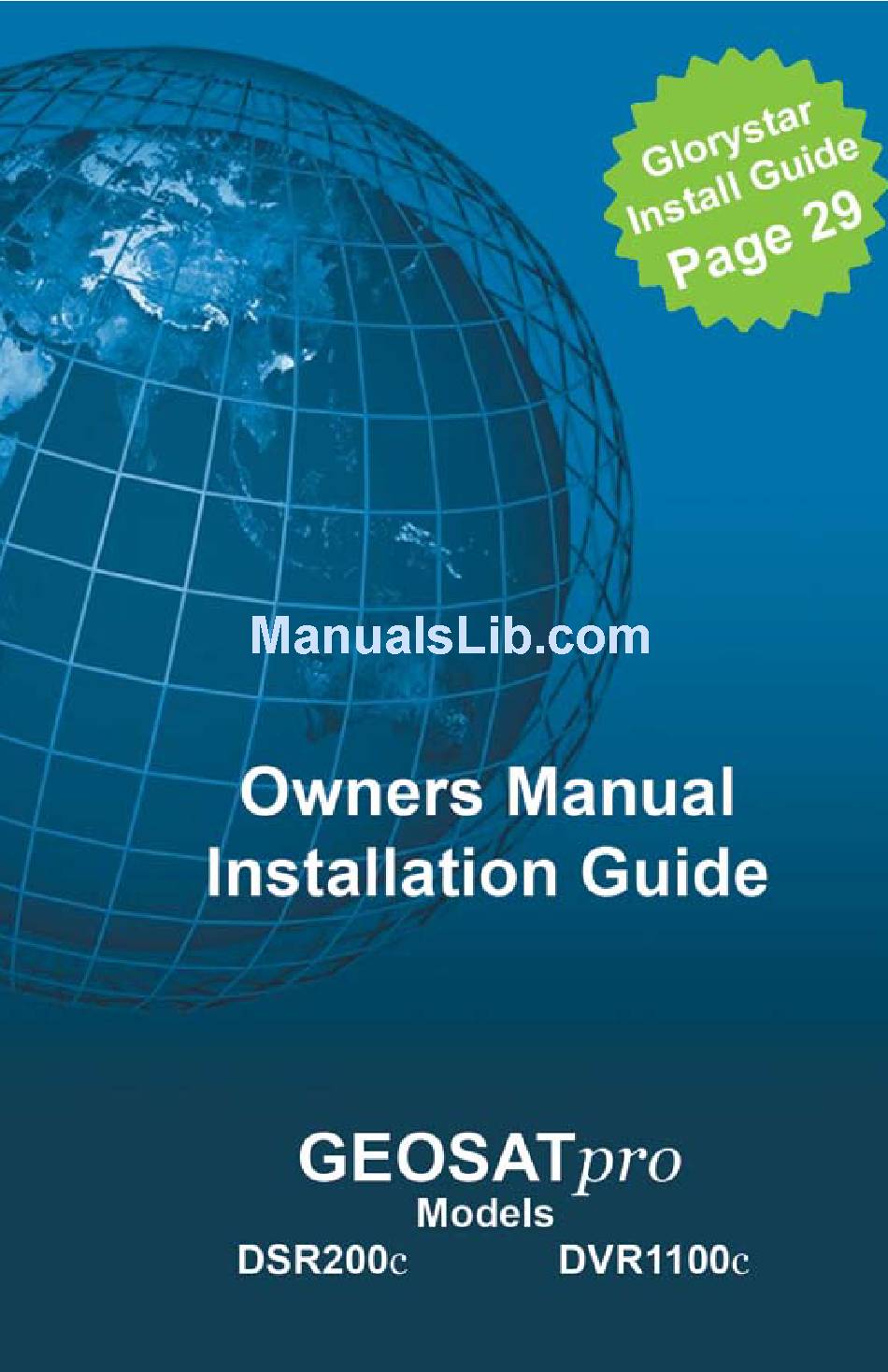

Page 2: Installation Guide
The basic operation of both models are identical, but the DVR1100c offers several digital recording features that are not found on the basic DSR200c receive only model. The additional features of the DVR1100c are noted in the menu features and operation guides. - Page 3 For More information: http://www.fcc.gov/cgb/satellite.html Materials contained in this installation manual are the property of: Satellite AV, LLC. 8801 Washington Blvd., Suite 101 Roseville, CA 95678 http://www.satelliteav.com ©2010 Satellite AV, LLC www.geosatpro.com Toll Free 888-483-4673...
-
Page 4: Table Of Contents
Page Table of Contents Important Safeguards DSR200c/ DVR1100c Specifications Receiver Front / Rear Panel Remote Control Layout Basic Remote Operation Receiver Operation Guide Receiver Menu Items DVR1100c Operation Glorystar Installation Guide Parts List Site Survey Dish Mounting Options Dish Assembly... -
Page 5: Important Safeguards
Important Safeguards www.geosatpro.com Toll Free 888-483-4673... - Page 6 Service assistance may be arranged by contacting your reseller. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. B. Gohl © GEOSATpro...
-
Page 7: Dsr200C/ Dvr1100C Specifications
Type SMPS Physical Specification DSR200c - 10 1/4" x 2" x 8 1/2" (260 x 50 x 210mm) Size (W x H x D) DVR1100c - 11 1/2" x 2" x 8 3/4" (290 x 50 x 220mm) Net Weight 4.5 lbs. -

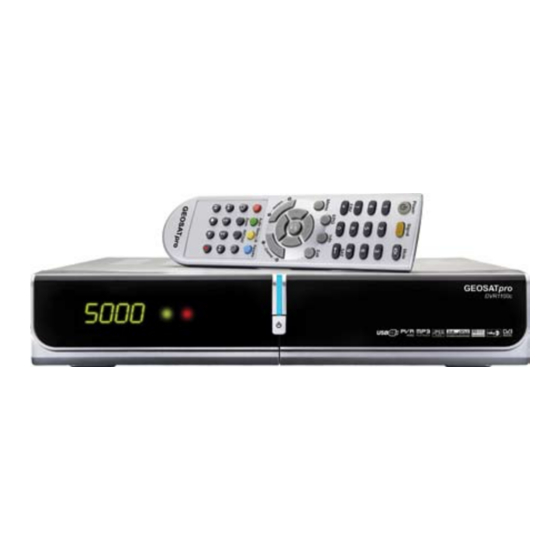

Page 8: Receiver Front / Rear Panel
DSR200c Front Panel Power Switch the receiver between Standby and Operation mode Increase or Decrease the Volume Change Channel Up / Down Connects USB memory device for Firmware / Channel List upgrade CAS Slot - Subscription card insertion with foil contacts facing down... -
Page 9: Rear Panel
Firmware or Channel List 5V/500ma (DVR1100 model only) AC power plug connection (90 - 250VAC / 60Hz, 30W) Master Power Switch disconnects receiver from external power The GEOSATpro DSR200c & DVR1100c digital satellite receivers are Glorystar Approved. www.geosatpro.com Toll Free 888-483-4673... -
Page 10: Remote Control Layout
Remote Control Unit B. Gohl © GEOSATpro... - Page 11 Remote Key Functions DSR200c / DVR1100c Switch the receiver between standby and operation modes Display the Signal Strength and Signal Quality Meter Select the Favorite Channel List mode Display TV / Radio Electronic Program Guide (future Glorystar activation) Display the Main Menu screens...
-
Page 12: Basic Remote Operation
View Signal Level (S) and Signal Quality (Q) of any channel by pressing the SIGNAL button. The receiver features many of the controls necessary for basic operation of the satellite system in case the remote is misplaced. B. Gohl © GEOSATpro... -
Page 13: Receiver Operation Guide
Key into the 18 digit HEX format. Simple Channel List Press List OK button during normal live mode to view a channel list When a detailed channel list is displayed on screen, press RED button to display a simple channel list. www.geosatpro.com Toll Free 888-483-4673... -
Page 14: Last Channel
Press Return button to recall the last channel selected. Alternative Audio Select Alternative Audio Press AUDIO button. Press the Navigation VOLUME UP/DOWN arrows to select an alternative audio (if available) for the current channel. Press EXIT to save the selection. B. Gohl © GEOSATpro... -
Page 15: Zoom Function
Press ANT/SAT button to toggle the TV/VCR output on the rear of the receiver between the receiver’s satellite channels or any Cable TV, antenna or any source that is connected to the ANT input on the rear of the receiver. Perfect for connecting with Cable TV. www.geosatpro.com Toll Free 888-483-4673... -
Page 16: Signal Meter
Type: Select Once, Daily, Weekly • Channel: Select a TV or Radio channel • Month: Select month of the event DSR200c • Date: Select the date of the event • Start: Enter the start time in 24 hour mode. Example: Midnight is 00:00, 1:30pm is set as 13:30. -
Page 17: Receiver Menu Items
Press OK on the channel to add or delete A mark will appear on the selected channel Press OK to add or delete. Selected channels are automatically saved. Press EXIT to return to previous menu or to go to the current live channel. www.geosatpro.com Toll Free 888-483-4673... - Page 18 CH mode, all channels on a TP or all channels on a SAT. Press EXIT to return to previous menu or MENU to go to the current live channel. B. Gohl © GEOSATpro...
- Page 19 - Select the proper switch. Press OK Search Options - Press OK to display list of search types - Select the desired search type. Press OK All Channels - Scans satellite preprogrammed transponders for free & scrambled channels SAT (FTA) - Scans satellite preprogrammed transponders for free channels One TP - Scans selected transponder for free and scrambled channels One TP FTA - Scans selected transponder for free channels Blind Scan - Searches entire satellite signal for all available channels www.geosatpro.com Toll Free 888-483-4673...
- Page 20 - Press OK to display list of Search Types - Select the desired search type. Press OK See description on page 17 Search - If Signal Quality meter is displaying Quality, Press OK to scan for channels. Channel Search Completed - Press OK to save. B. Gohl © GEOSATpro...
- Page 21 - Enter stop IF between 950 - 2150MHz Standard LNB enter 1450 / Universal LNB enter 2150 Search Options See description on page 17 Search - Press OK to scan for new transponders and channels. The process may take an extended time if searching a wide range of parameters. www.geosatpro.com Toll Free 888-483-4673...
- Page 22 - Select proper display type 4:3, 16:9 or 4:3 letterbox mode. Press OK Channel History - Press OK to display the of number of previous channels for RETURN button. - Select the desired quantity. Press OK B. Gohl © GEOSATpro...
- Page 23 - Select correct month, Press OK Date - Press OK to display list of dates - Select correct date, Press OK Hour - Manually enter time in a 24 hour format. Example: 1:30 pm = 13:30 www.geosatpro.com Toll Free 888-483-4673...
- Page 24 This section will assist in reviewing the system information, using the USB 2.0 functions with the DVR1100c, manually setting event timers and resetting the system. IV-1. System Information IV-2.a USB Firmware / Channels IV-3.a Timer - DSR200c IV-3.b Time Record - DVR1100c IV-4. Factory Default DSR200c DVR1100c IV-1.
- Page 25 Enable - Press OK to display YES / NO - Select YES to enable. Press OK Number DSR200c - Press OK to display event timers 1 - 10 - Select timer to program. Press OK Type - Press OK to display event frequency - Select Once, Daily, or Weekly.
- Page 26 V. Accessory This section will assist in setting up the receiver for Time Machine recording and defeating the automatic receiver updating via the satellite. V-1. Time Machine - DVR1100c V-2. DSR200c DVR1100c V-3. Smart Card B. Gohl © GEOSATpro...
- Page 27 This screen provides information regarding the reception of subscription based programming with a CAS (conditional access card / smart card). Insert the subscribed Smart Card: DVR1100c - Foil contacts facing up DSR200c - Foil contacts facing down www.geosatpro.com Toll Free 888-483-4673...
-
Page 28: Dvr1100C Operation
PAUSE button or set up as a timed event. If the program title is listed with the EPG (Electronic Program Guide) button, highlight the desired program and press the RECORD button. The program record date, start and duration times will be automatically set. B. Gohl © GEOSATpro... - Page 29 The selected or viewed satellite channel will be automatically recorded onto the attached USB drive. If the channel is changed, the recording will start again and the previous recorded programming will be erased. Time Machine recordings cannot be saved. www.geosatpro.com Toll Free 888-483-4673...
- Page 30 RIGHT arrow button to rapidly move forward in the recording. Delete Recordings - DVR1100c • Press the PLAY button to display the Recorded Program List • Highlight the program to be deleted Press the BLUE button to delete • B. Gohl © GEOSATpro...
-
Page 31: Glorystar Installation Guide
Grounding the system as recommended in the National Electric Code. If you don’t feel completely comfortable with these tasks, you may consider contracting the installation with a local satellite technician. Web site http://www.FTAinstall.com provides a free referral service for local installers. Please visit today! www.geosatpro.com Toll Free 888-483-4673... -
Page 32: Parts List
Tripod Support Leg (2) LNBF ARM (1) Post (1) LNBF Arm Supports (2) Satellite Receiver Installation Kit (1) Dish Accessory Kit (1) and Remote (1) LNBF (1) Tools Required Phillips Screwdriver 1/4” Socket Drill and Bits Measuring Tape Hammer B. Gohl © GEOSATpro... -
Page 33: Site Survey
NO obstructions between the two. This means NO trees and NO buildings. Satellite signals will not pass through leaves, limbs, so consider future tree growth, house remodeling or additions and new construction in your area. The dish cannot be installed indoors! www.geosatpro.com Toll Free 888-483-4673... - Page 34 Compass (Azimuth) Reading: _______________ Glorystar Satellite Systems receive channels from Galaxy 19 KU at orbital position 97W. This is not the compass reading! Galaxy 19 is near the same location as the DirecTV main satellite at 101W. B. Gohl © GEOSATpro...
- Page 35 Elevation Angle Finder Compass Sight along the top edge of the elevation angle finder with the weighted string registering the correct elevation angle. Is the line of sight clear with no branches, limbs or tall buildings? www.geosatpro.com Toll Free 888-483-4673...
-
Page 36: Dish Mounting Options
36” dish. The dish and mount are designed to remain operational in winds up to 80+ mph and survive wind gusts over 110+ mph. B. Gohl © GEOSATpro... -
Page 37: Dish Assembly
Tape a second string vertically from top to bottom on the edges of the dish. If the strings do not lightly touch in the center, the dish is warped and it must be corrected before aiming the dish. www.geosatpro.com Toll Free 888-483-4673... - Page 38 It may be necessary to repeat the flexing process several times until the reflector edges are uniformly flat. Important Note: An assembled dish will not be accepted for refund. GEOSATpro 90cm Dish Hardware Item Quantity Description Size Carriage Bolt 1/4” x 1/2”...
- Page 39 After verifying the Reflector is not warped, mount the Reflector to the Elevation Bracket and install the two LNBF Arm Side Supports. The Side Arm Supports will perfectly center and support the LNBFs for optimal reception. www.geosatpro.com Toll Free 888-483-4673...
-
Page 40: Universal Post Mount Assembly And Install
If the post is not exactly plumb, the elevation scale will not be accurate and it will be very difficult to locate the satellite and properly tune the dish for reliable reception. B. Gohl © GEOSATpro... -
Page 41: Lnbf Bracket Assembly
LNBF Clamp Assembly Assemble the single LNBF Clamp and attach to the LNBF arm. Install the LNBF into the clamp with the white cap facing the dish. www.geosatpro.com Toll Free 888-483-4673... -
Page 42: Dish Aiming
The pointer for the elevation indicator is a white line that is visible through the elevation scale and is located near the edge of the elevation fastening nut. Elevation Angle: ___________ B. Gohl © GEOSATpro... - Page 43 Check compass reading several times to reduce install time and the need to hunt the entire southern sky for the satellite signal. www.geosatpro.com Toll Free 888-483-4673...
- Page 44 Semi-tighten the post clamp nuts, but allow the dish to be just loose enough to be rotated left or right by applying light pressure. www.GeoSatFinder.com Need dish aiming coordinates? B. Gohl © GEOSATpro...
-
Page 45: Connect Receiver To A Tv
Plug the satellite receiver’s AC power plug into the same power strip. Power ON the Master Power Switch on back of the receiver. The receiver will power on and the front panel will display “boot”. The television will display the Language Selection Screen. www.geosatpro.com Toll Free 888-483-4673... -
Page 46: Receiver Connection Examples
Receiver Connection Examples Audio / Video RCA S-Video / Audio RCA Component Video / Audio RCA Cable, DirecTV, Dish or Antenna VCR or DVD Recorder Please consult the owners manual provided with TV, VCR or other device that will be connected to the Glorystar satellite receiver. The manual will include important connection and operational information. -
Page 47: Activating The Glorystar Receiver
NEXT then press OK to go to the next screen. Connect the coaxial cable from the LNBF on the dish antenna to the SAT IN port on the back of the satellite receiver. Press OK to proceed to next screen. www.geosatpro.com Toll Free 888-483-4673... - Page 48 LNBF. The low Signal Quality (Q) reading at or below 30% indicates that the dish is not properly aimed or the LNBF is not properly rotated to receive the satellite signal. B. Gohl © GEOSATpro...
-
Page 49: Locate And Peak Satellite Signal
When the dish is correctly aimed, the RT News Channel television programming will be displayed and the Signal Quality (Q) reading will read 50% or higher. A stable level on the 6 second bar graph indicates good LNBF and dish alignment. www.geosatpro.com Toll Free 888-483-4673... - Page 50 The higher the Signal Quality (Q) reading, the better the reception. If the Signal Quality (Q) reading is too low, the picture will break up into little squares and the sound may become garbled, out of sync, choppy or disappear completely! B. Gohl © GEOSATpro...
-
Page 51: Updating Glorystar Channel List
If the Automatic Update feature is turned OFF, the channel list will not be automatically updated. New features cannot be added to the receiver and the Glorystar informational channels will not be updated with special announcements and new programming. www.geosatpro.com Toll Free 888-483-4673... -
Page 52: Multiple Room Connection Examples
LNBF to multiple receivers. Splitters DO NOT work! Multiple Room Install - (optional) Glorystar systems support multi-room systems for any size of facility. One receiver or hundreds of receivers, Glorystar has a solution! B. Gohl © GEOSATpro... -
Page 53: Advanced / Hobbyist Installation
Press the Down arrow to highlight NEXT. Press OK to accept and go to next screen. Connect the coaxial cable from the LNBF on the dish antenna to the SAT IN port on receiver rear panel. Press OK to go to next screen. www.geosatpro.com Toll Free 888-483-4673... - Page 54 A Standard type LNBF LO frequency is 10750 and an Universal 1 type LNBF LO frequency is 9750/10600). For this example we will use Standard type LO 10750. LNB - Press OK list LNB LO type or frequency. Select LO type or frequency (10750). Press OK B. Gohl © GEOSATpro...
- Page 55 If prompted, press OK to confirm changes. Not Aimed Correctly Aimed Channel Search Completed - Press OK to save found channels. Press Exit two times to exit the menus and view scanned TV and Radio channels. www.geosatpro.com Toll Free 888-483-4673...
-
Page 56: Using Optional Satellite Meters
Rotate the dish approximately 6 degrees to the East (1/4” on the mast marking). The dish is now roughly aimed and will only require fine AZ/EL tuning for optimal reception of the Galaxy 19 satellite @ orbital slot 97W. B. Gohl © GEOSATpro... -
Page 57: Completing The Install And Grounding
Copies of the NEC are available at your local library or online. Important Notice: GEOSATpro recommends that you DO NOT use existing coaxial cabling that has been pre-wired or previously used in your home. Often these cables are low quality RG-59, not rated for satellite applications or have splitters and other devices that are not compatible. -
Page 58: Faq - Frequently Asked Questions
Snow or ice build up can interfere with the satellite signal. Mount the dish where snow can be gently brushed off. Dish covers and heaters are available for locations with regular ice and snow accumulations. B. Gohl © GEOSATpro... - Page 59 Thumb drives often cannot process the data and the picture pixilates or freezes. Message window displays “NTFS: Not supported” or “Not Hi-Speed” when trying to record. The connected USB device is not formatted to FAT32 type. Use the receiver USB format function to format to FAT32 type www.geosatpro.com Toll Free 888-483-4673...
-
Page 60: Accessories
Glorystar customers may purchase an optional telephone technical support contract for an annual fee of $19.95. Accessories Your GEOSATpro reseller carries a large selection of satellite accessories and replacement items. Please consider these GEOSATpro accessories for your installation. Satellite Finder Meter... -
Page 61: Satellite Elevation Finder - Cut-Out
Cut Here www.geosatpro.com Toll Free 888-483-4673...
