The box PA 502 A Owner's Manual

Active 2-way full range speaker

Table of Contents

Download this manual

PA 502 A

Owner's Manual

ACTIVE 2-WAY

FULL RANGE SPEAKER

Table of Contents

Need help?

Do you have a question about the PA 502 A and is the answer not in the manual?

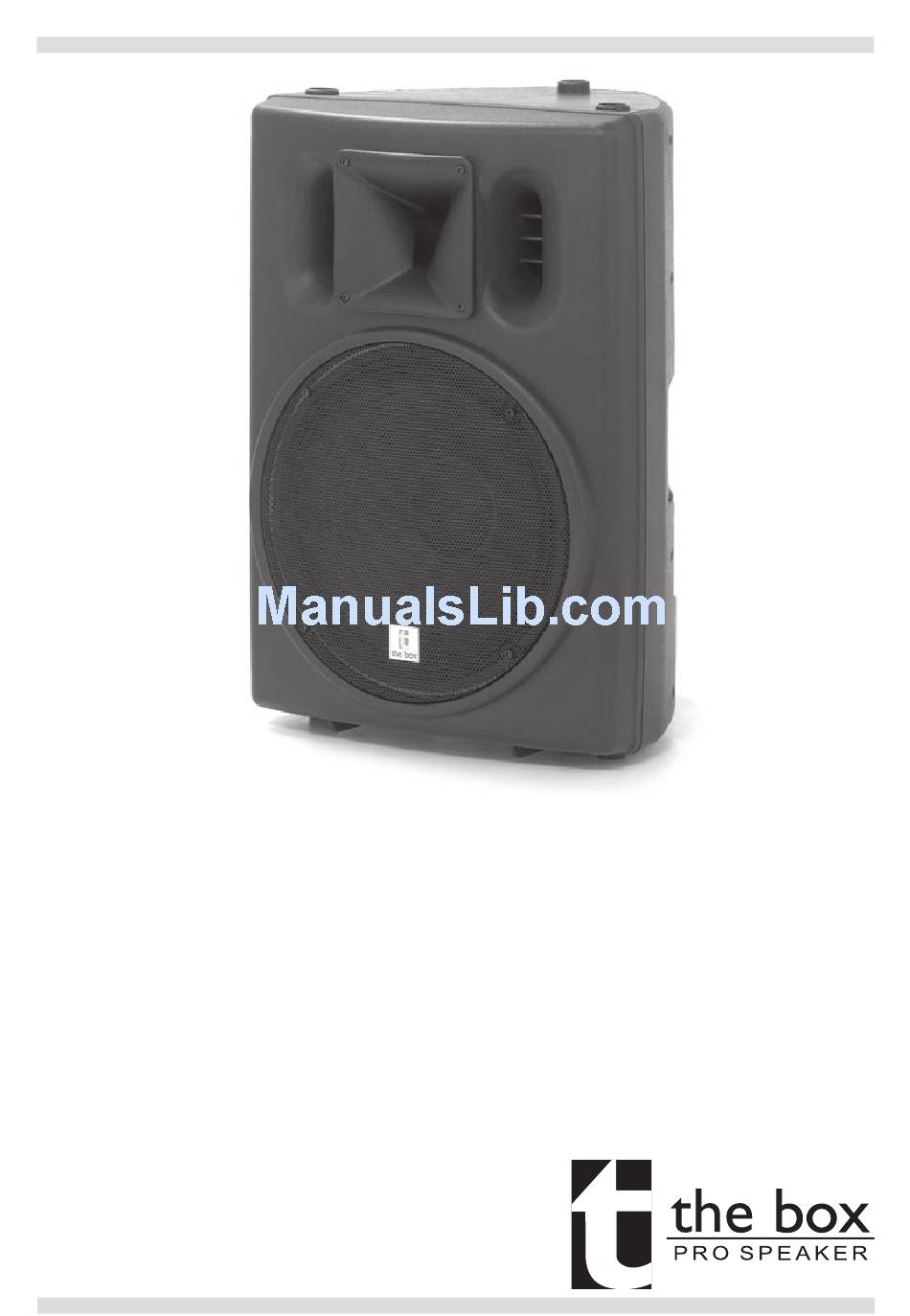

Page 1 PA 502 A Owner‘s Manual ACTIVE 2-WAY FULL RANGE SPEAKER...
Page 2 NEVER operate the speaker box if the power plug or power the cord is damaged. • NEVER submerse the speaker box in water. Liquid getting into the box will risk a short circuit and will be hazardous. • NEVER expose the speaker box to direct precipitation or moisture and never use it in a damp or wet environment.
Page 3 • Before connecting or operating this speaker box, please study and follow the instruction manuals of all devices connected to the box, paying particular attention to the operating precautions and wiring procedure.
Page 4 The operating elements...
Page 5 1. CLIP Clipping indicator. When this indicator is flashing, please reduce the volume to assure safe operation with clear audio output. 2. LOW CUT @ 120 Hz Press this button to activate a low frequency attenuation below 120 Hz to reduce stage rumble noises and thereby protect the woofer. 3.
Page 6 13. Power supply input Make sure that the voltage selector y is set correctly for the supply voltage at the place of operation, BEFORE you connect the mains power. 14. ON/OFF Power ON/OFF switch. Press on “I” marking to switch the active speaker on.
Page 7 Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EC. • Have the product disposed of by a professional disposal company of by your communal disposal facility.
