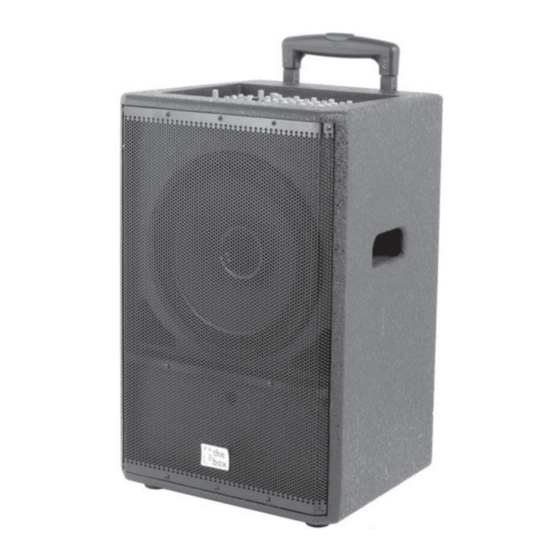

The box STAGE 250 Owner's Manual

Transportable pa with built-in mixer and 24 bit effects
Hide thumbs
Table of Contents

Advertisement

Quick Links

STAGE 250
Owner's Manual
TRANSPORTABLE PA
WITH BUILT-IN MIXER AND 24 BIT EFFECTS

Advertisement

Table of Contents
loading

Related Manuals for The box STAGE 250

Summary of Contents for The box STAGE 250

  • Page 1 STAGE 250 Owner’s Manual TRANSPORTABLE PA WITH BUILT-IN MIXER AND 24 BIT EFFECTS...

  • Page 2: Important Safety Instructions

    • NEVER operate the device if the power plug or power the cord is damaged. • NEVER submerse the device in water. Liquid getting into the box will risk a short circuit and will be hazardous. • NEVER expose the device to direct precipitation or moisture and never use it in a damp or wet environment.

  • Page 3: Cleaning And Maintenance

    Please read this manual carefully so you can take advantages of all the features of the Stage 250. Thank you again for making the right choice in purchasing the THE BOX Stage 250.

  • Page 4: The Operating Elements

    Via the FX SEND jack, the AUX1 signal can be sent to an external effect device. EQUALIZER The BOX Stage 250 features a 3-band equalizer which allows you to adjust the high, mid and low frequencies separately on each mono channel.
  • Page 5 This insert can be used to connect with a computer, MP3, MP4 or CD players. TAPE IN s The THE BOX Stage 250 features dual RCA jacks (left and right). If you wish to listen to your monitor from a tape recorder, DAT or cassette, please use these tape input jacks.

  • Page 6: Operating Led

    LEVEL CONTROL (In Graphic EQ Section) k This control is used to adjust the overall volume of the main mix output. The adjustable range goes from ∞ to +10 dB. OUTPUT LEVEL LED l The 4-segment LED meter is used to indicate the output level. OPERATING LED 1( This LED lights up when the unit is powered on.
  • Page 7 DSP Section with 24-Bit Digital Effects Your THE BOX Stage 250 features a special 100-preset digital effect, for further details please refer to the following content. DISPLAY 2^ Displays the selected preset. PROGRAM (PUSH) 2& Adjust this knob to select the right effect you wish to perform. There are total 100 options for you: Vocal, Echo, Plate and versatile two-effect combination.

  • Page 8: Rear Panel

    POWER ON/OFF Switch 3( This switch is used to turn the unit on/off. AC INPUT 3# Standard IEC receptacle, connect your THE BOX Stage 250 to the main electrical outlet with the supplied power cord. VOLTAGE SELECTOR 3$ There are two kinds of voltages for your operation from this switch, you can select the voltage at 115V or 230V.

  • Page 9: Frequency Response Diagram

    (Do not invert the red/black cable). 6. After replacing the battery, and assembling the wire, input it into the box, then tight the screws on the rear panel. 7. Before using the new rechargeable battery, we suggest to charge the battery first.

  • Page 10: Connection Diagram

    Connection diagram...
  • Page 11 MATCHING WITH PASSIVE SPEAKER & SUBWOOFER In this example, it connects a sub-woofer, and the woofer of this two full-range act like midwoofer. This is very popular combination especially in small size clubs when there’s no need for two sub-woofers.

  • Page 12: Audio Connection

    Ok, you have reached this point and you are now in the position to successfully operate your THE BOX Stage 250. However, we advise you to read carefully the following section, to be the real master of your unit. Not paying enough attention to the input signal level, to the routing of the signal and the assignment of the signal will result in unwanted distortion, a corrupted signal or no sound at all.
  • Page 13 In line Connection For these applications, the THE BOX Stage 250 provides 1/4” TRS connectors, XLR connectors and RCA connectors to interface with most professional audio devices easily. Follow the configuration examples below for your particular connection. In line Connection If you are connecting to a mixing console’s main insert, you may have single TRS jacks for Send &...

  • Page 14: Preset List

    Preset list...

  • Page 15: Block Diagram

    Block diagram...

  • Page 16: Technical Specifications

    Technical specifications As we continuously strive to improve our products, all specifications and appearance are subject to change without prior notice.
  • Page 17 Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. This device is subject to the European Guidelines 2002/96/EC. • Have the product disposed of by a professional disposal company of by your communal disposal facility.
