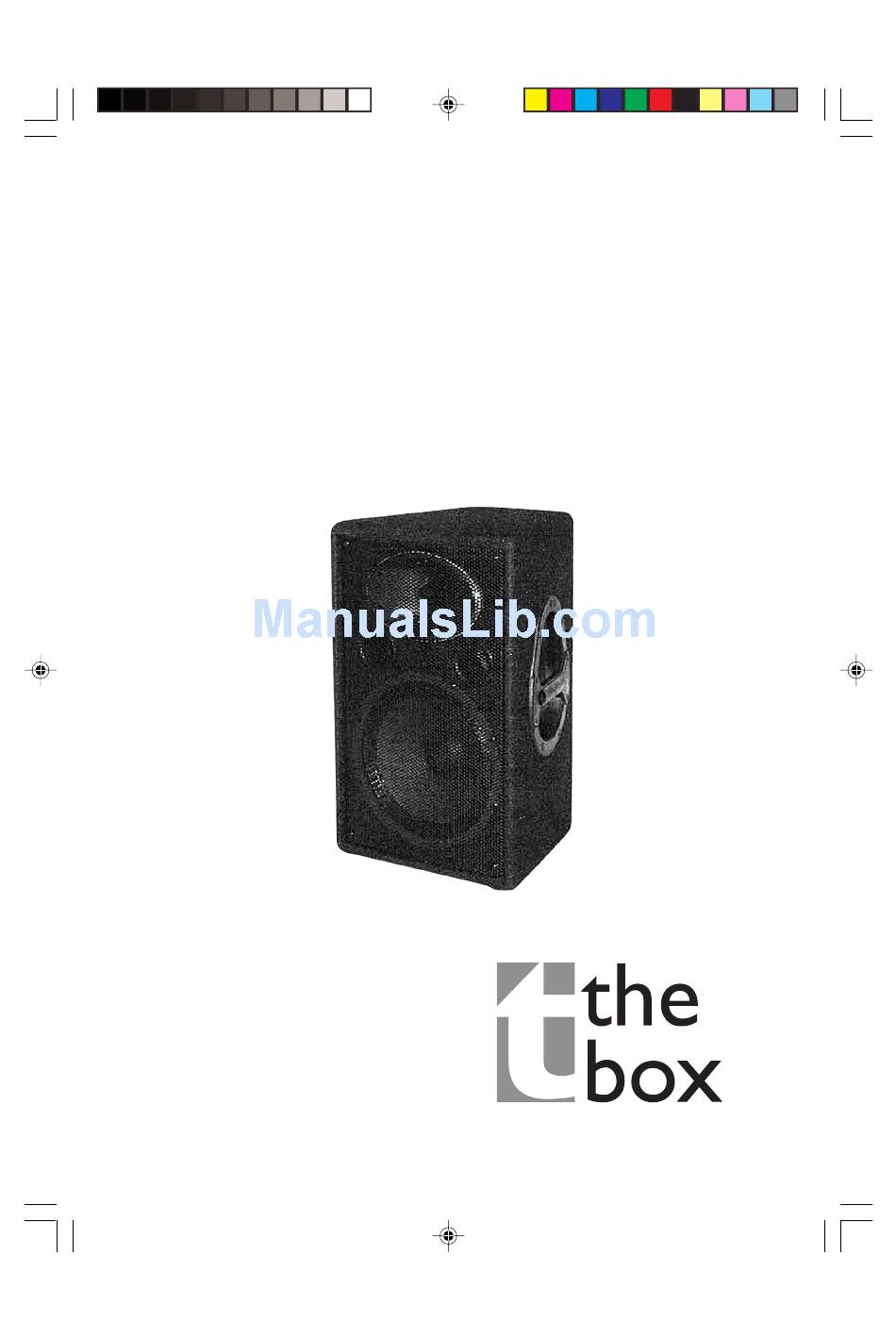

- Page 1 PA 10 ECO High-Performance 240-Watt PA Speaker with 10" Woofer and Dual Electro-Dynamic Driver User’s manual DATA-MANFULL_PA10_ECO_ENG_Rev_A.PMD 20.02.2006, 14:53...
-
Page 2: Safety Instructions
PA 10 ECO SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this device near water. 6) Clean only with a dry cloth. 7) Be sure to mount your speakers on a solid, stable and level base or stand. Vibrating floors do not provide reliable support for speaker enclosures or stacks. - Page 3 PA 10 ECO 1. CONNECTIONS Connections Two ¼“ loudspeaker inputs are wired in parallel. You can alternatively connect one of the connectors to the output on your power amp and tap into the signal from the amp once again on the second connector, in order to feed this signal into an additional loudspeaker. ¼"...
-
Page 4: Power Amp Rating
PA 10 ECO 2. POWER AMP RATING The power rating of your amp should be roughly twice the speaker load capacity. ATTENTION! When several loudspeakers are wired in parallel the overall impedance to be handled by the power amp can be calculated, as shown below, from the individual impedance values of the connected speakers: Your amplifier may be damaged if the actual impedance drops below its input impedance. -
Page 5: Specifications
PA 10 ECO 4. SPECIFICATIONS ` U@HÃ96U6 Q6Ã Ã@8P Type 2-way full-range speaker Frequency response 60 Hz - 20 kHz Power rating (Peak program) 240 W Impedance Sound pressure level (1 W @ 1 m) 98 dB (Full Space) Dispersion 90°...
