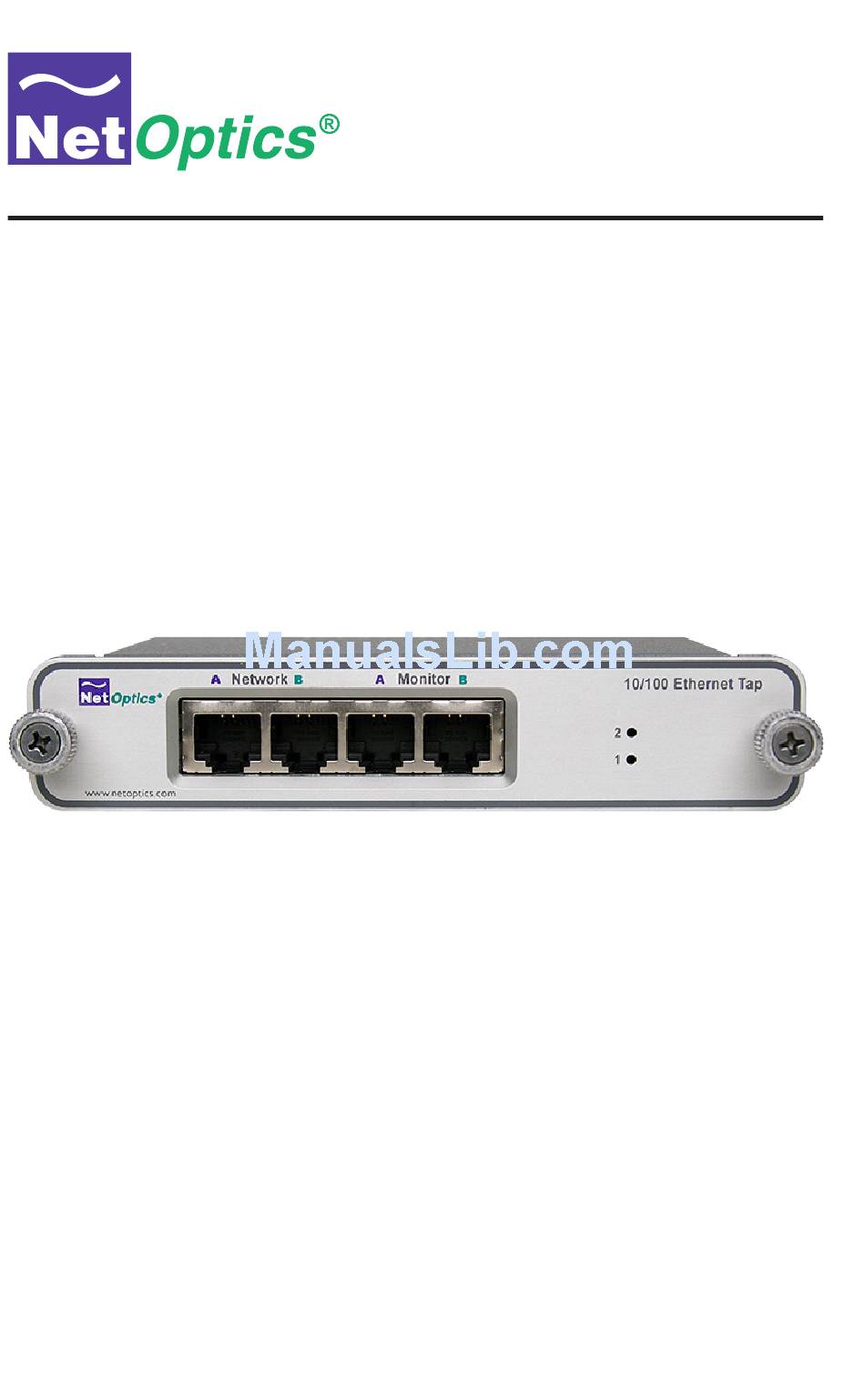

10/100BaseT Tap Product Diagrams Network A & B Monitor A & B Power LEDs Network Monitor 10/100 Ethernet Tap 10/100 Ethernet Tap www.netoptics.com Figure 1: Front Panel 12V DC OUTPUT PIN ASSIGNMENT 1.5 Amp max. Figure 2: Rear Panel AC Power Model...
10/100BaseT Tap Cabling Guidelines •. If.connecting.to.Switches.or.Hubs,.use.CAT5.RJ45.cross-over.cabling . •. If.connecting.to.Routers.or.NICs,.use.CAT5.RJ45.straight-through.. cabling . Connecting to the Network 1 ...Connect.Network.Port.A.to.the.appropriate.switch,.server.or.router.using.a. CAT5e.cable .. 2 ...Connect.Network.Port.B.to.the.appropriate.switch,.server.or.router.using.a. CAT5e.cable .. Network Monitor 10/100 Ethernet Tap 10/100 Ethernet Tap www.netoptics.com To network switch or router To network switch or router Figure 5: Connecting to the Network 3 ..
10/100BaseT Tap Connecting to the Monitoring Device 1 .. Supply.power.to.the.Tap.using.the.two.redundant.power.supplies.included. with.the.unit ..Verify.that.the.Power.LED.illuminates . 2 .. Connect.Monitor.Port.A.to.the.appropriate.port.on.the.monitoring.device. using.a.CAT5e.straight-through.cable . 3 .. Connect.Monitor.Port.B.to.the.appropriate.port.on.the.monitoring.device. using.a.CAT5e.straight-through.cable . Note: _______________________________________________________________ The second power supply is available to support the flow of traffic to the monitoring device in the event that the first power supply becomes unavailable.
